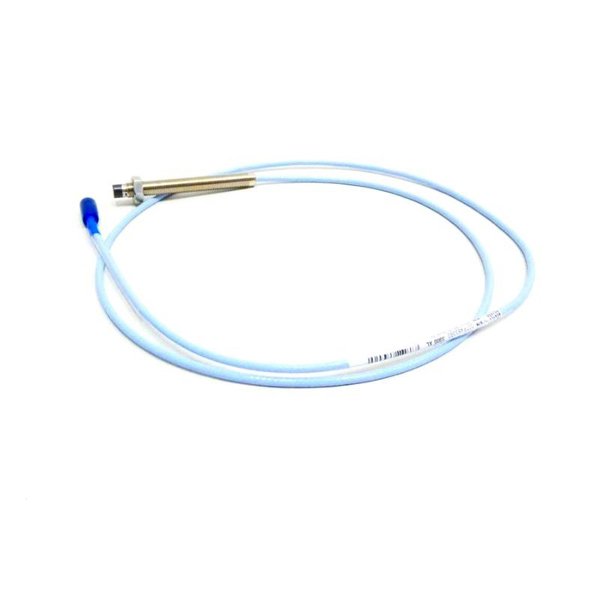

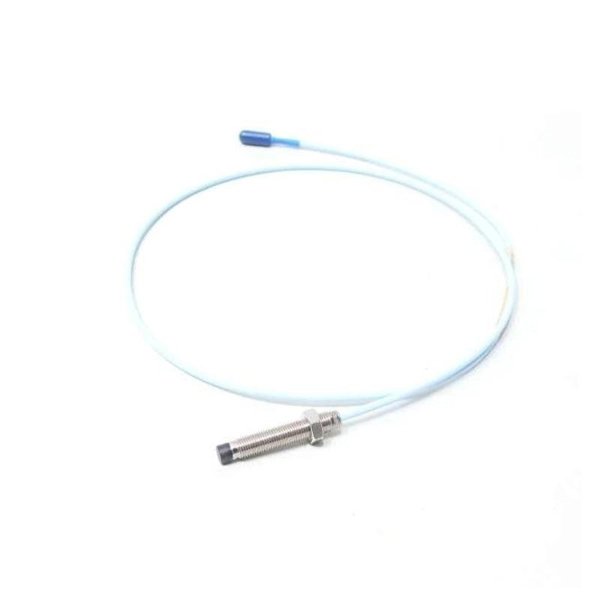

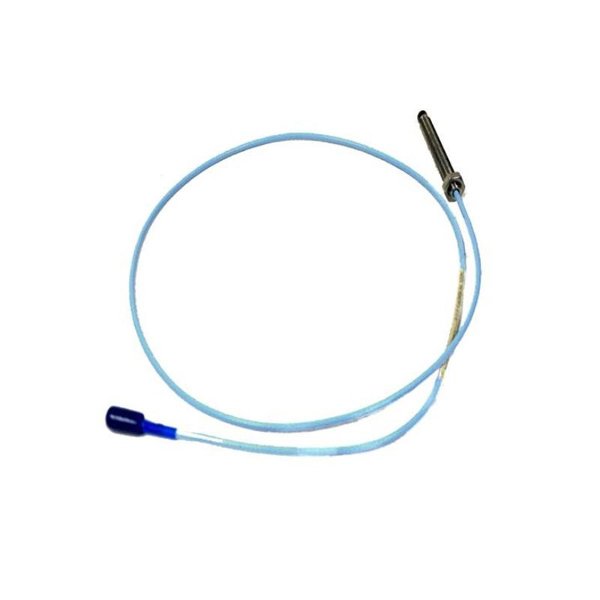

The Bently Nevada 330101-00-18-20-02-05 3300 XL 8mm Proximity Probe is designed for precise vibration and position monitoring in industrial machinery. Utilizing eddy-current technology, it provides high-accuracy measurement of shaft displacement and vibration, ensuring early detection of machinery faults. Its robust construction and interchangeable system components make it suitable for harsh environments, reducing maintenance time and improving system reliability.

Product Specifications

Applications

• Real-time shaft vibration monitoring in turbines, compressors, and generators

• Position sensing in rotating machinery for alignment and gap analysis

• Protection systems integration in critical industrial plants

• Condition-based maintenance programs for predictive fault detection

Advantages

• High Durability: Thick PPS plastic housing resists mechanical abuse and harsh environments

• Precision Measurement: Eddy-current sensing provides accurate static and dynamic displacement data

• Interchangeable Components: Compatible with other 3300 XL and 3300 series components

• Easy Installation: Gold-plated ClickLoc connectors allow fast and secure field wiring

• Optional Fluid Protection: Prevents leakage of lubricants or fluids through the probe cable

FAQ

1. What is the operating temperature range?

The probe is designed for standard industrial environments and can operate reliably within typical plant temperature ranges.

2. Can this probe be used with older 3300 series systems?

Yes, it is compatible with other 3300 XL and non-XL 3300 series components.

3. What type of target material is required?

Conductive targets, typically steel shafts, are recommended for eddy-current measurement.

4. How do I install the probe?

Use the ClickLoc connector with finger-tight torque; thread the probe according to the selected mounting option.

5. Is there a cable length limitation?

Standard length is 2.0 meters, but custom lengths can be specified for different installations.

6. Does the probe require calibration?

Calibration is integrated during manufacturing, but system-level verification is recommended after installation.

7. How resistant is it to harsh environments?

The PPS plastic housing and optional FluidLoc cable make it resistant to mechanical abuse, oil, and fluids.

8. What type of output does it provide?

It generates an analog eddy-current signal compatible with Bently Nevada Proximitor sensor systems.

9. Can it measure both static and dynamic displacement?

Yes, it is capable of measuring static shaft position and dynamic vibration simultaneously.

10. What maintenance is required?

Minimal maintenance is required; periodic inspection and cleaning of the probe tip and connector are recommended.
