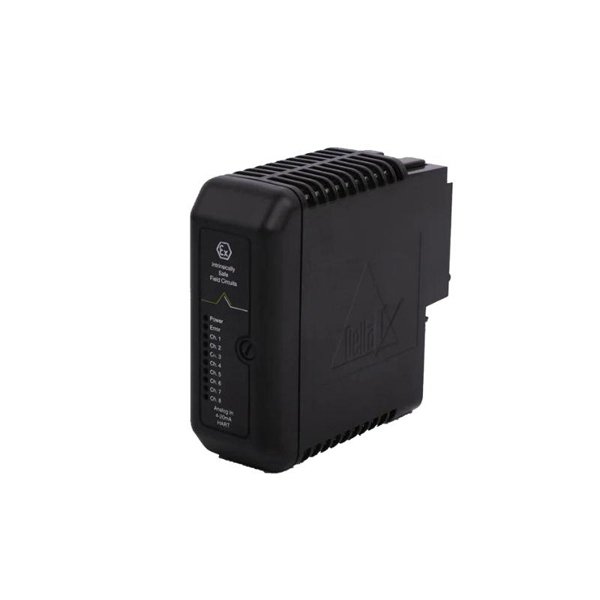

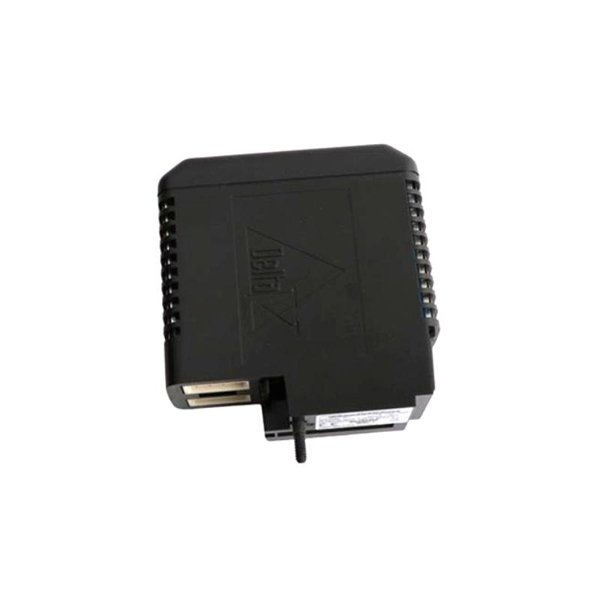

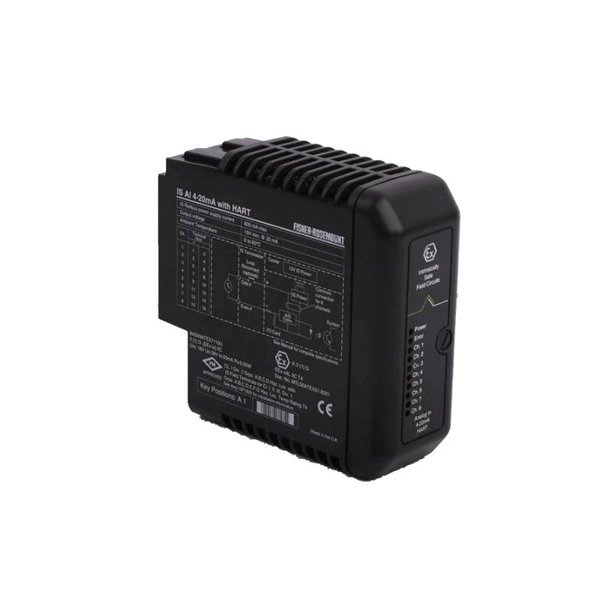

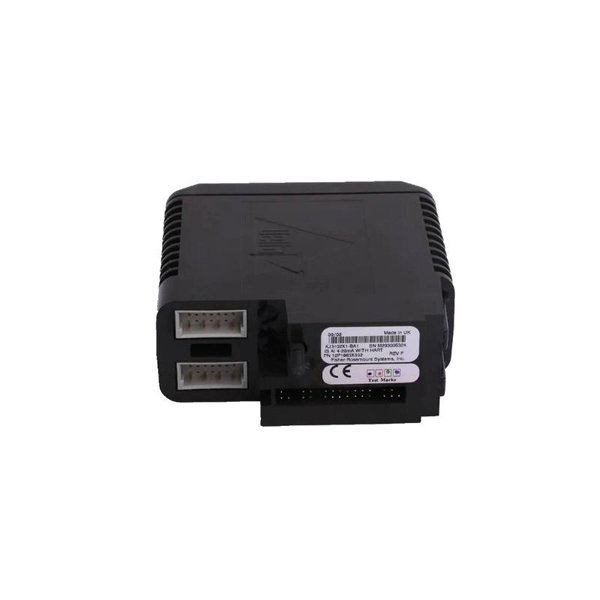

The Emerson KJ3102X1-BA1 (Catalog No. 12P1863X032) is a high-precision Analog Input Module designed for use in DeltaV distributed control systems (DCS). As part of the CHARM I/O subsystem, it ensures scalable, flexible, and reliable process automation. It supports 16 input channels, each independently configurable for different signal types such as 4–20 mA, 0–10 V, or thermocouples, depending on installed CHARM types.

Engineered for high-density I/O environments, the KJ3102X1-BA1 enables enhanced plant availability, fast commissioning, and reduced hardware wiring requirements. This module is widely used in industries where real-time analog signal acquisition, accuracy, and system reliability are non-negotiable.

Designed to operate within Emerson’s DeltaV Electronic Marshalling architecture, it provides seamless integration with other CHARM components, hot-swappable design for minimized downtime, and integrated diagnostics for proactive maintenance.

Product Specifications

Applications

The KJ3102X1-BA1 is purpose-built for mission-critical process automation. It serves across multiple verticals:

Oil & Gas: Real-time wellhead monitoring, pipeline pressure, and flow measurement.

Petrochemical Plants: Accurate process control of temperature, flow, and chemical composition.

Food & Beverage: Process monitoring of mixing, pasteurization, and fermentation systems.

Power Generation: Boiler pressure, turbine temp, and fuel mix analysis.

Pharmaceutical: Compliance-driven process monitoring for sterilization and formulation.

Water Treatment: pH, turbidity, chlorine level acquisition.

Mining and Metals: Process control in smelting, refining, and chemical dosing.

Pulp and Paper: Paper moisture content, steam pressure monitoring.

Product Advantages

Channel-Level Flexibility: Any analog input channel can be assigned to any process variable using specific CHARM types.

Electronic Marshalling: Eliminates traditional cross-wiring, reducing cabinet complexity and installation time.

Hot Swapping: Modules can be inserted or removed without system shutdown, enhancing uptime.

Advanced Diagnostics: Pinpoints issues such as short circuits, open loops, and miswiring at the channel level.

Compact Footprint: High channel density with a small physical size saves cabinet space.

Field-Proven Reliability: Certified for SIL2/3 applications under IEC 61508.

Modular Expansion: Seamlessly adds to existing DeltaV architecture without major redesigns.

Reduced Engineering Time: Smart configuration tools reduce commissioning effort and errors.

Frequently Asked Questions (FAQ)

1. Q: What CHARM types are compatible with KJ3102X1-BA1?

   A: The module supports all DeltaV analog CHARM types including 4–20 mA, thermocouple, RTD, and voltage input CHARMs.

2. Q: Is the module hot-swappable during operation?

   A: Yes, the module can be inserted or removed without system downtime.

3. Q: Can I mix signal types on a single module?

   A: Yes, each channel is independently configurable based on the installed CHARM.

4. Q: What system is required for this module to function?

   A: It is designed for Emerson’s DeltaV DCS with CHARM I/O architecture.

5. Q: Does it support redundancy?

   A: Yes, when used in a redundant CHARM I/O carrier system.

6. Q: What diagnostic features are included?

   A: The module offers open-loop detection, signal range alerts, wiring faults, and device failure alarms.

7. Q: How is the module configured?

   A: Configuration is done via DeltaV Control Studio software with drag-and-drop interface.

8. Q: Is this module suitable for hazardous areas?

   A: Yes, it has ATEX, CSA, and IECEx certifications for Zone 2/Div 2 environments.

9. Q: What is the power requirement for this module?

   A: Power is supplied via the CHARM baseplate, and the module consumes about 3.5 W.

10. Q: Can I upgrade the firmware on this module?

    A: Yes, firmware updates are supported via DeltaV engineering tools.
