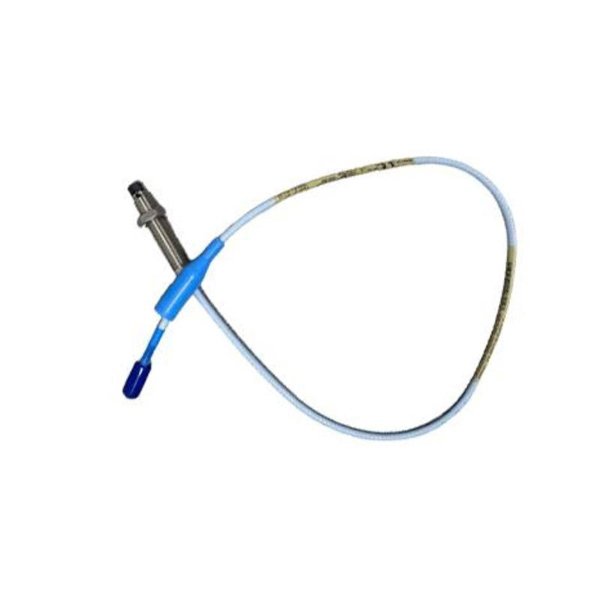

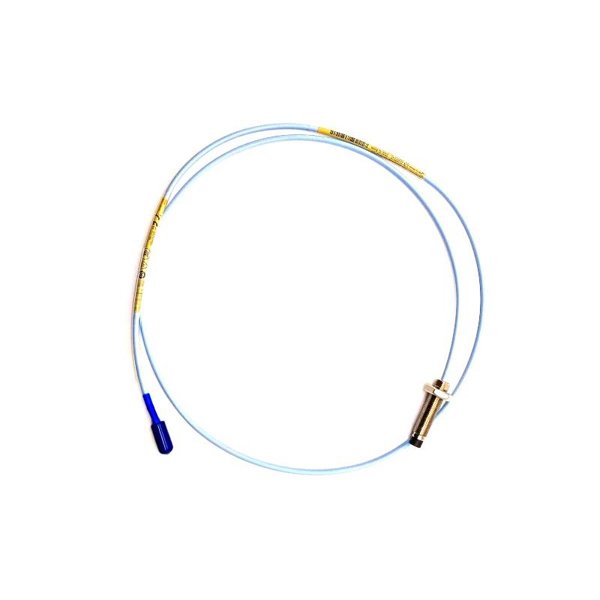

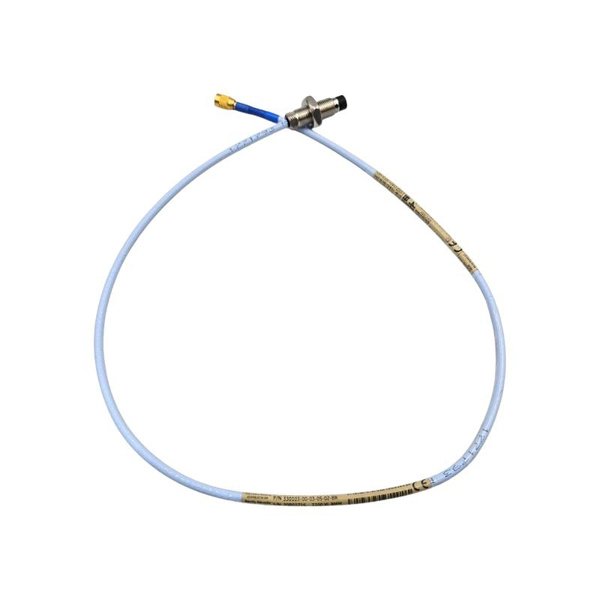

Bently Nevada 330103-00-16-50-02-00 3300 XL 8 mm Proximity Probe
Manufacturer:Bently Nevada
Product Number:330103-00-16-50-02-00
Product Type:3300 XL 8 mm Proximity Probe
Origin:USA
Total Length:5.0 meter
Weight:1.615 kg
Views:25
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330103-00-16-50-02-00 is part of the 3300 XL 8 mm Proximity Transducer System. It measures static and dynamic displacement (position and vibration) of rotating machinery, providing high accuracy and reliability. Designed to meet API 670 standards, it is fully interchangeable with other 3300 XL components, ensuring flexibility and ease of installation without recalibration. This model features a 5-meter cable length and robust construction suitable for demanding environments.
Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | 330103-00-16-50-02-00 |
| System Length | 5.0 meters (16.4 ft) |
| Weight | Approx. 1.615 kg |
| Probe Tip Diameter | 8 mm |
| Thread Size | M10 x 1 |
| Linear Range | 0.25 to 2.3 mm (10 to 90 mils) |
| Recommended Gap | 1.27 mm (50 mils) |
| Frequency Response | 0–10 kHz (+0, -3 dB) |
| Operating Temperature | -52°C to +177°C (standard), up to +218°C (ETR) |
| Cable Bend Radius | ≥25.4 mm (1.0 in) |
| Mounting Torque | 7.5–11.2 Nm (66–100 in·lbf) |
| Compliance | API 670, CE Mark, SIL 2/3, RoHS, ATEX, IECEx |
Applications
-
Vibration and position monitoring on fluid-film bearing machines
-
Keyphasor reference and speed measurements
-
Turbine, compressor, pump, and motor condition monitoring
-
High-density panel and DIN-rail installations
Advantages
-
Fully API 670-compliant performance
-
Interchangeable components minimize downtime
-
Extended temperature range options available
-
Robust connectors and cable designs prevent loosening and leakage
-
High immunity to electromagnetic interference
-
Rugged probe tip for harsh environments
Frequently Asked Questions (FAQ)
Q1: What is the linear measurement range of the 330103 probe?
A1: It measures from approximately 0.25 mm to 2.3 mm (10–90 mils).
Q2: Is this probe compliant with API 670?
A2: Yes, it fully meets API 670 mechanical and performance standards.
Q3: Can the probe withstand high temperatures?
A3: The standard probe operates up to +177°C, with an ETR version rated up to +218°C.
Q4: Is calibration needed when replacing components?
A4: No, components are fully interchangeable without bench calibration.
Q5: Does it support both radial and axial measurements?
A5: Yes, it is suitable for both vibration and position (axial) monitoring.
Q6: How does it handle electromagnetic interference?
A6: It has improved RFI/EMI immunity for reliable performance.
Q7: What type of connector does it use?
A7: It uses corrosion-resistant, gold-plated ClickLoc connectors.
Q8: What is the recommended gap voltage setting?
A8: Approximately -9 VDC, equivalent to 1.27 mm (50 mils).
Q9: Are there armored cable options?
A9: Yes, armored versions are available for enhanced durability.
Q10: Can it be installed in hazardous areas?
A10: Yes, it carries ATEX, IECEx, and other hazardous area certifications.
