Manufacturer:Bently Nevada
Product Number:330102-00-12-10-02
Product Type:3300 XL 8 mm Proximity Probe
Origin:USA
Total Length:1.0 meter
Weight:0.323 kg
Views:35
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24

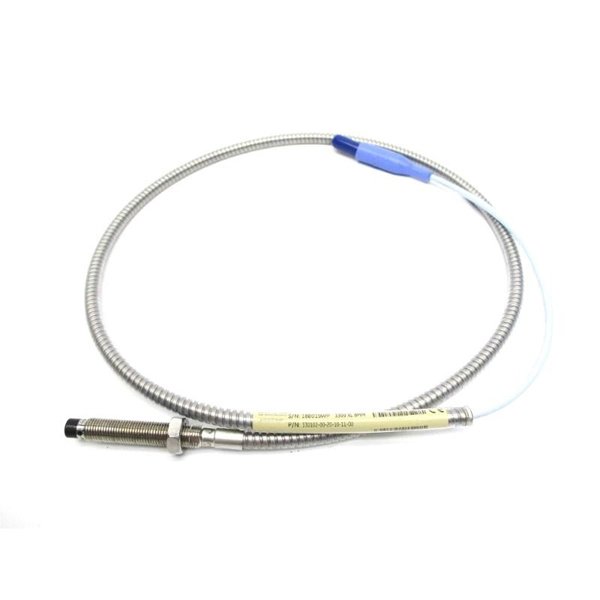

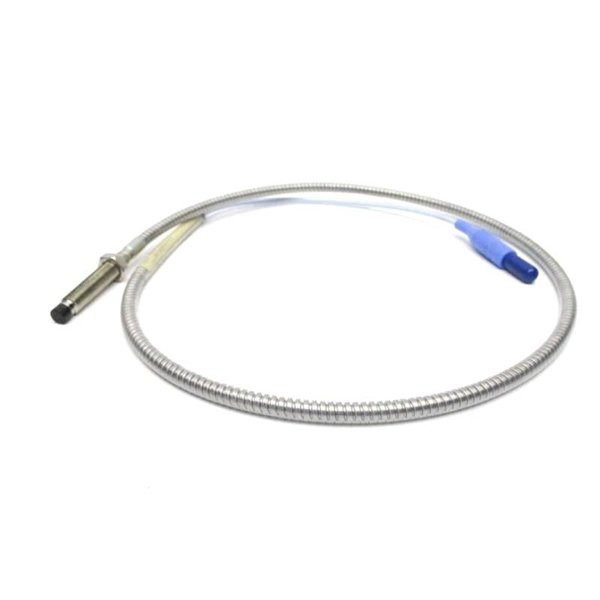

The Bently Nevada 330102-00-12-10-02 is part of the 3300 XL 8 mm Proximity Transducer System. It provides precise measurement of static position and dynamic vibration on rotating machinery. With its armored cable design, robust construction, and compliance with API 670 standards, it ensures reliability even in harsh environments. The probe offers full interchangeability with other 3300 XL components and is backward-compatible with non-XL 3300 series.
Vibration monitoring of fluid-film bearing machines
Shaft position and displacement measurements
Keyphasor reference and overspeed protection systems
High-density installations requiring rugged design
Meets API 670 standard requirements
Rugged, armored cable for enhanced protection
Backward-compatible and interchangeable with non-XL systems
Excellent temperature and RFI/EMI immunity
Simplified installation with ClickLoc connectors
| Parameter | Value |
|---|---|
| Model | 330102-00-12-10-02 |
| Probe Diameter | 8 mm |
| Probe Thread | 3/8-24 UNF |
| Cable Type | Armored, standard |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Operating Temperature | -52°C to +177°C (probe) |
| Extended Temperature Option | Up to +218°C (probe tip) |
| Linear Range | 2 mm (80 mils) |
| Frequency Response | 0–10 kHz (+0, -3 dB) |
| Minimum Target Size | 15.2 mm diameter |
| Shaft Diameter Recommendation | ≥76.2 mm |
| Output Sensitivity | 200 mV/mil (7.87 V/mm) ±5% |
Q1: What is the main purpose of the 330102-00-12-10-02 probe?
A1: It measures vibration and position of rotating machinery in industrial applications.
Q2: Does this probe comply with API standards?
A2: Yes, it fully complies with API 670 standards.
Q3: Can the probe be used in high-temperature environments?
A3: Yes, the standard probe supports up to +177°C, and extended versions up to +218°C.
Q4: Is it interchangeable with non-XL 3300 series components?
A4: Yes, it is backward-compatible and interchangeable.
Q5: What is the recommended shaft diameter?
A5: A minimum shaft diameter of 76.2 mm is recommended for optimal accuracy.
Q6: How is the cable protected?
A6: The probe uses an armored cable for mechanical and environmental protection.
Q7: What type of connectors does it use?
A7: It uses gold-plated ClickLoc connectors for secure and easy installation.
Q8: Does it require calibration with specific materials?
A8: Yes, it is factory-calibrated to AISI 4140 steel; other materials require recalibration.
Q9: What is the output sensitivity of the probe?
A9: The standard sensitivity is 200 mV/mil (7.87 V/mm).
Q10: Can it be installed without special tools?
A10: Yes, thanks to the ClickLoc connectors, no special tools are required.
