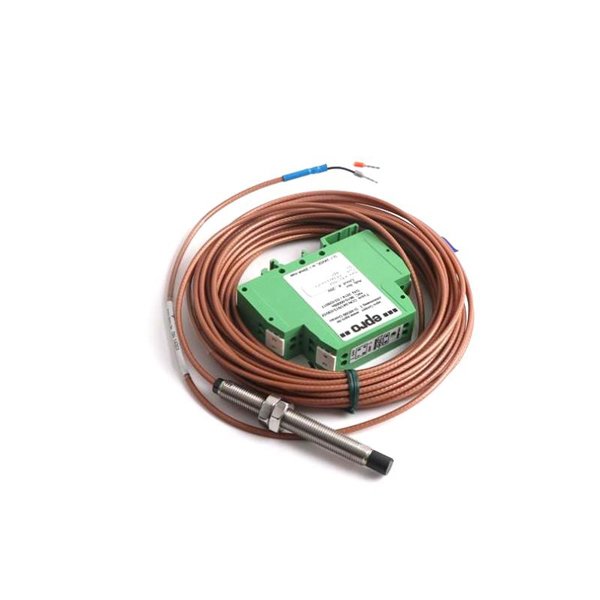

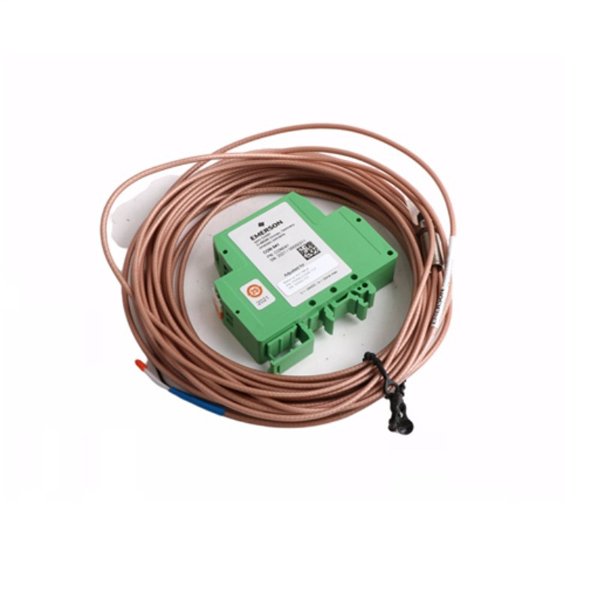

The Epro PR6424/002-031+CON041 is a precision 16mm eddy current sensor designed for accurate and reliable measurement of displacement and vibration in industrial machinery. Featuring advanced eddy current technology, this sensor offers non-contact detection, providing a robust solution for condition monitoring and predictive maintenance across diverse industrial sectors.

This particular model integrates the PR6424/002-031 sensor probe with the CON041 connector, facilitating secure electrical connection and simplified installation. The 16mm probe length provides a practical balance between sensitivity and mechanical robustness, suitable for monitoring critical components like shafts, bearings, and rotors.

Constructed with high-quality stainless steel and durable polymers, the sensor withstands harsh operating environments, including exposure to dust, moisture, and mechanical vibration. Its stable output and minimal signal drift make it well-suited for continuous, long-term monitoring applications.

Technical Specifications

Applications

The PR6424/002-031+CON041 sensor is widely deployed in numerous industrial environments, including but not limited to:

• Rotating Equipment Monitoring: Provides critical displacement and vibration data on turbines, compressors, and generators.

• Power Plants: Essential for condition-based monitoring of steam and gas turbines, improving reliability and preventing failures.

• Oil & Gas: Monitors pumps, motors, and drilling machinery in harsh, challenging environments.

• Manufacturing: Used on precision spindles and rotating machinery to detect early signs of wear or misalignment.

• Aerospace Testing: Utilized in test benches and simulation setups requiring precise displacement measurement.

• Research & Development: Valuable tool for measuring dynamic components and validating mechanical designs.

Advantages

• Accurate Non-Contact Measurement: Eddy current technology ensures precise, repeatable data without physical wear.

• Durable Build: Resistant to dust, moisture, and mechanical shocks with an IP67 rating.

• Compact Form Factor: The 16mm probe length allows for flexible installation even in tight spaces.

• Secure Electrical Connection: The CON041 connector guarantees stable and vibration-resistant signal transmission.

• Wide Temperature Tolerance: Operates reliably in extreme environments from -40°C up to +125°C.

• Long-Term Stability: Minimal signal drift provides dependable monitoring over extended periods.

• Compatibility: Easily integrates with various condition monitoring and data acquisition systems.

Frequently Asked Questions (FAQ)

1. What is the maximum displacement range this sensor can measure?

   The typical range is ±2 mm, but exact range depends on the sensor setup.

2. Can this sensor be used in wet environments?

   Yes, the IP67 rating means it is protected against dust and can withstand immersion up to 1 meter.

3. Is the connector included with the sensor?

   Yes, this model includes the CON041 connector for easy installation.

4. What output type does this sensor provide?

   It provides an analog voltage output proportional to displacement.

5. What is the operational temperature range?

   The sensor works reliably from -40°C to +125°C.

6. Does the sensor require regular calibration?

   Calibration frequency depends on usage but generally is recommended periodically for optimal accuracy.

7. Can this sensor be used outdoors?

   Yes, its IP67 rating and durable housing make it suitable for outdoor use.

8. What materials are used in the sensor housing?

   Stainless steel and high-grade polymers ensure resistance to corrosion and mechanical stress.

9. Is this sensor compatible with all Epro monitoring systems?

   It is compatible with most standard systems, but compatibility should be verified with your specific equipment.

10. What maintenance is needed for this sensor?

    Regular visual inspections and connector checks are advised; the sensor itself is low-maintenance due to its rugged design.
