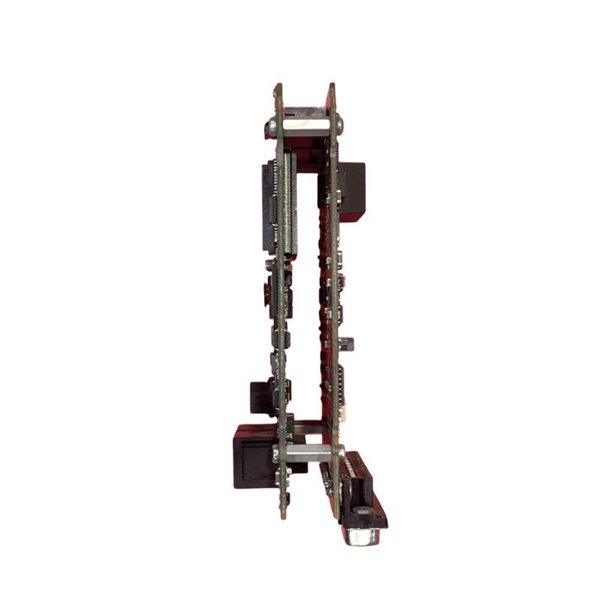

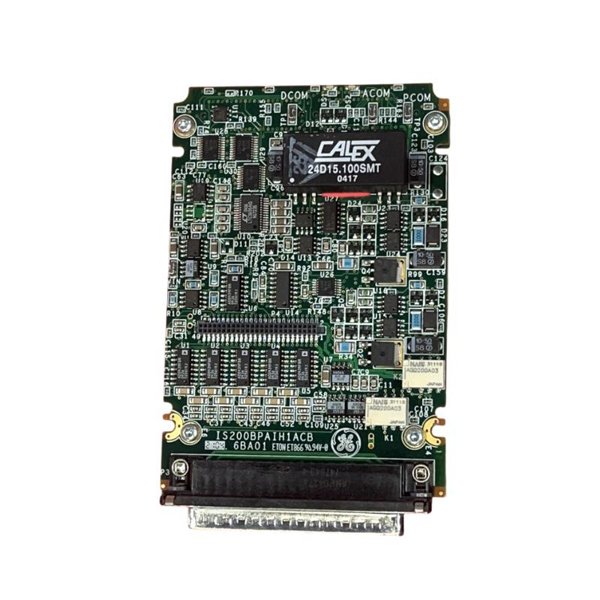

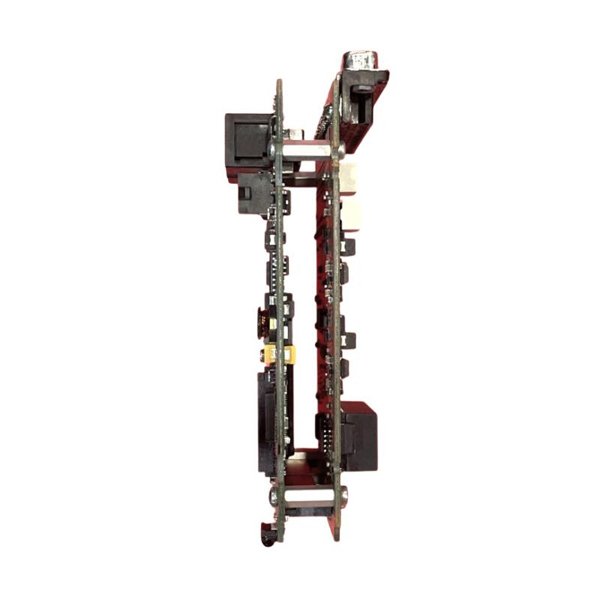

The GE IS200BPAIH1ACB Analog I/O Processor Board is a high-performance module designed for GE Mark VI and Mark VIe turbine control systems.

It provides precise acquisition and conditioning of analog signals, enabling accurate measurement and control of critical process variables such as temperature, pressure, and vibration.

Built with a multi-layer PCB and industrial-grade components, this board ensures exceptional reliability in harsh environments with high electrical noise and mechanical vibration.

Its integration with the Mark VI/VIe platform allows seamless communication with control CPUs, facilitating real-time data exchange and advanced diagnostic capabilities.

Product Specifications

Applications

• Gas and Steam Turbine Monitoring – Captures and processes critical analog signals for turbine operation and protection.

• Power Generation Plants – Provides precise measurement for voltage, current, and temperature in generator systems.

• Industrial Process Control – Supports high-accuracy analog monitoring in refineries, chemical plants, and manufacturing facilities.

• Oil & Gas Operations – Interfaces with sensors in compressors, pumps, and pipeline monitoring equipment.

• Marine Propulsion – Ensures reliable feedback for propulsion and auxiliary systems.

• Retrofit & Upgrades – Ideal as a replacement or enhancement board in existing Mark VI installations.

Advantages

• High Measurement Accuracy – 16-bit resolution ensures precise signal acquisition for critical process variables.

• Robust Isolation – Optical and galvanic isolation protect the control system from high-voltage transients.

• Integrated Diagnostics – Built-in real-time fault detection improves system reliability and simplifies maintenance.

• Seamless Integration – Fully compatible with GE Mark VI/VIe platforms for easy installation and commissioning.

• Industrial Durability – Engineered for harsh environments with strong resistance to electrical noise and vibration.

• Compact Design – Slim form factor optimizes rack space without compromising performance.

• Scalable Architecture – Supports expansion of analog I/O capacity as plant requirements grow.

• Low Maintenance – Modular design simplifies replacement and reduces downtime.

FAQ

1. Which control systems are supported by the IS200BPAIH1ACB board?

   It is designed for GE Mark VI and Mark VIe turbine control systems.

2. What types of analog signals can it process?

   It supports ±10 V voltage inputs and 4–20 mA current inputs.

3. What is the resolution of the A/D converter?

   The board provides 16-bit high-precision analog-to-digital conversion.

4. Does the board include isolation for field signals?

   Yes, it features both optical and galvanic isolation to protect system electronics.

5. What communication interfaces are available?

   A high-speed backplane connector and a dedicated diagnostic port.

6. Is real-time fault detection supported?

   Yes, integrated diagnostics continuously monitor for faults and anomalies.

7. What is the nominal input voltage requirement?

   The board operates at a nominal 24 VDC supplied through the system chassis.

8. Can it be mounted in different configurations?

   Yes, it can be rack-mounted or panel-mounted within a Mark VI chassis.

9. Does the module support hot-swap replacement?

   Controlled replacement is possible when the system is in maintenance mode.

10. How does it handle electrical noise in industrial settings?

    The multi-layer PCB design and shielding provide strong immunity to electrical noise.
