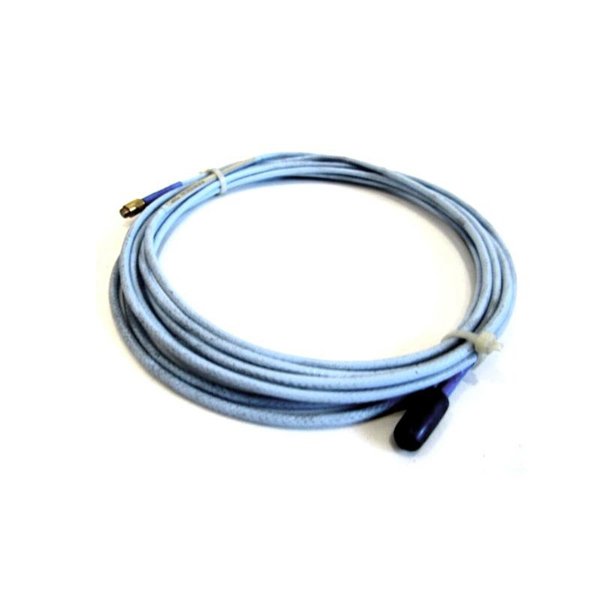

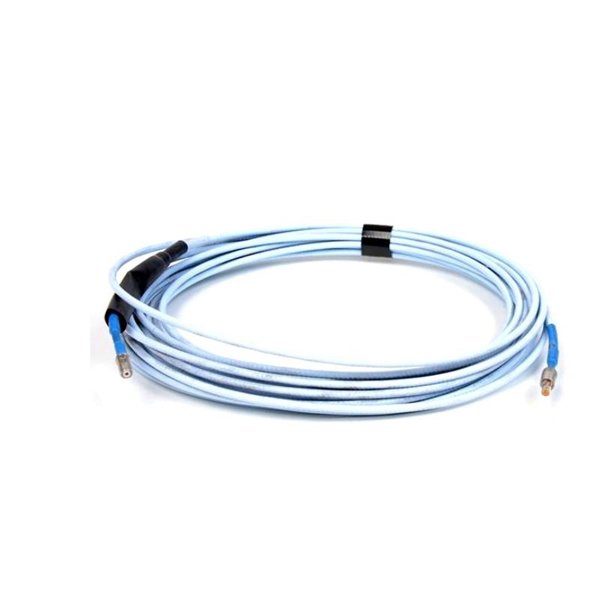

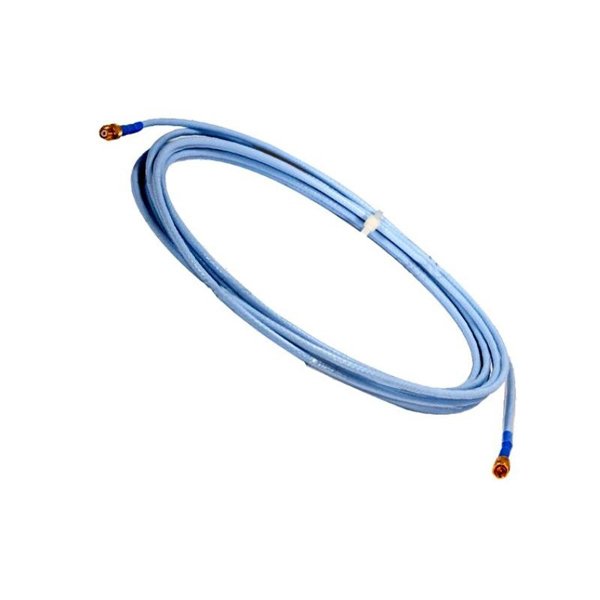

Bently Nevada 330130-085-02-05 3300 XL Standard Extension Cord

The Bently Nevada 330130-085-02-05 is a factory-assembled extension cable from the 3300 XL series, purpose-built for use in proximity transducer systems. Designed with a cable length of 8.5 meters and TNC to TNC connector configuration, this model is engineered to maintain signal integrity between the proximity probe and the Proximitor sensor module.

This cable plays a vital role in critical industrial monitoring systems, where it ensures reliable transmission of shaft vibration and displacement data. The 330130-085-02-05 provides superior electrical shielding and durability, making it suitable for harsh environments, including high EMI/RFI zones and areas with extreme temperatures or mechanical stress. Its factory-terminated construction guarantees quality and consistency, reducing field errors and simplifying deployment.

Key Features

• Length: 8.5 meters (27.9 feet) – Ideal for extended installations without performance degradation.

• TNC to TNC Connectors – Provides secure, threaded connections resistant to vibration.

• Factory-Assembled – Ensures uniform quality and eliminates the need for field assembly.

• Low-Noise Coaxial Cable – Maintains signal clarity and minimizes electrical interference.

• FEP Outer Jacket – Resists chemicals, abrasion, and high temperatures.

• Optimized for 3300 XL Series – Designed specifically to integrate with Bently Nevada’s proximity probe systems.

Technical Specifications

Industry Applications

The 330130-085-02-05 cable is commonly used in industrial sectors requiring accurate machinery monitoring and diagnostics:

• Power Generation – Gas and steam turbines, motors, and generators.

• Oil & Gas – Compressors, pumps, expanders in refineries and offshore platforms.

• Petrochemical & Chemical Plants – Critical rotating equipment operating in corrosive or hazardous environments.

• Mining & Metals – Rotary kilns, crushers, and large-scale rotating machinery.

• Water Treatment Facilities – Pumps and motor shafts in continuous operation systems.

• Marine Applications – Propulsion shaft monitoring in vessels and submarines.

Product Advantages

• Consistent Signal Transmission – Maintains data accuracy over extended distances.

• High Durability – Withstands mechanical stress and chemical exposure.

• Threaded TNC Connectors – Provide vibration-resistant connections ideal for heavy-duty industrial environments.

• Ease of Installation – Pre-assembled cable reduces installation time and error.

• EMI/RFI Resistant – Coaxial shielding ensures clear, uninterrupted signals in high-interference zones.

• Maintenance-Friendly – Factory-standard build makes replacement straightforward and reliable.

Frequently Asked Questions (FAQ)

1. What does the model number 330130-085-02-05 mean?

   It denotes a factory-assembled 8.5-meter extension cable with TNC-to-TNC connectors for 3300 XL systems.

2. Is this cable compatible with 3300 XL 5mm and 8mm probes?

   Yes, it is designed to be compatible with both 5mm and 8mm Bently Nevada 3300 XL probes.

3. Can I install this cable in high-temperature environments?

   Absolutely, it supports temperatures up to 177°C (350°F).

4. What are the advantages of TNC over BNC connectors?

   TNC connectors use threaded coupling, providing better vibration resistance than BNC’s bayonet-style connectors.

5. Can this cable be repaired if damaged?

   No, it is not field-repairable. Damaged cables should be replaced with factory-assembled units.

6. Is it possible to get this cable in other lengths?

   Yes, Bently Nevada offers multiple length options. Contact the supplier for available variants.

7. How do I identify this cable among others in my system?

   Look for the blue jacket, part number marking, and TNC connectors on both ends.

8. Is this cable resistant to oils and industrial solvents?

   Yes, the FEP outer jacket is resistant to most industrial chemicals.

9. Does this cable carry power or just signal?

   It is a signal cable and does not carry power.

10. Is this cable compatible with the 3500 series Proximitor modules?

    Yes, it is fully compatible with Bently Nevada 3500 series Proximitor sensor modules.
