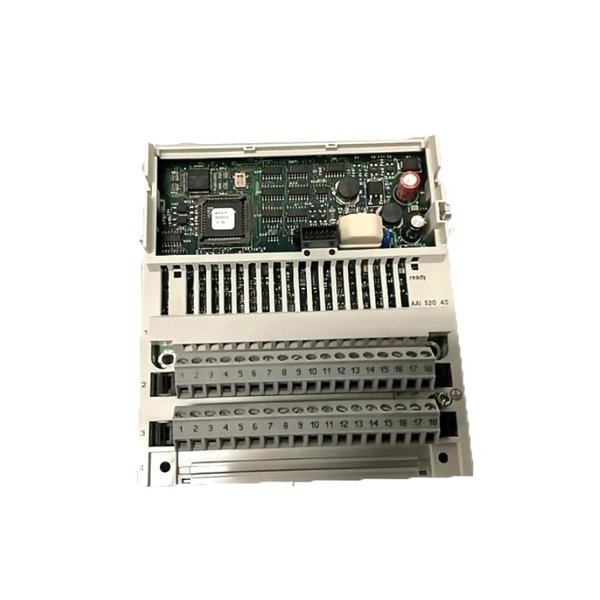

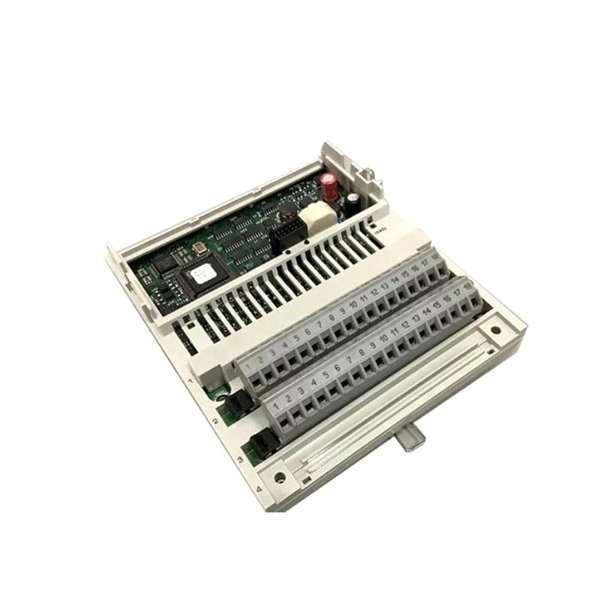

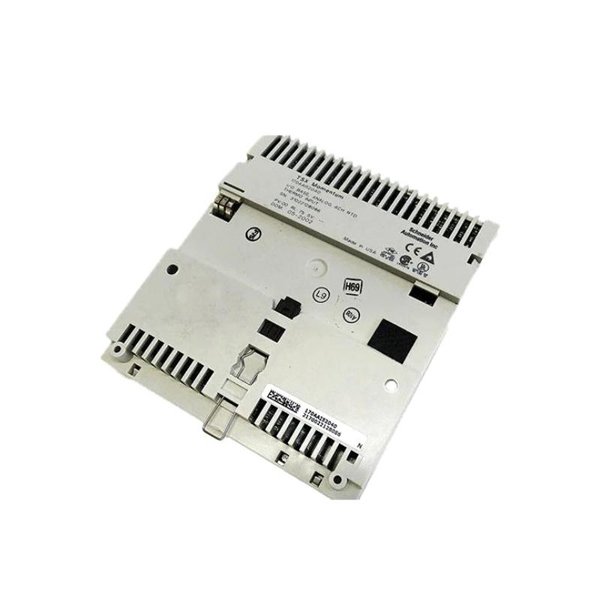

The Schneider 170AAI52040 Distributed Analog Input Base is a component designed for use in industrial automation systems, specifically within the Modicon M580 series. This device allows the integration of multiple analog input signals into the control system, providing accurate and reliable data acquisition for complex industrial processes. The 170AAI52040 model is a crucial part of Schneider Electric’s offering for distributed I/O systems, particularly in automation and control applications where high-performance analog inputs are necessary.

Product Specifications

Product Applications

The Schneider 170AAI52040 is designed for use in various industrial environments where analog signal acquisition is needed for automated control and monitoring. Key applications include:

• Process Control: Integrating with distributed control systems (DCS) to monitor parameters such as temperature, pressure, and flow in manufacturing and production processes.

• Building Automation: Used in systems that control HVAC (Heating, Ventilation, and Air Conditioning) systems, lighting, and other building systems.

• Oil and Gas: Suitable for process control in oil and gas facilities where accurate measurement and monitoring of analog signals are essential.

• Water and Wastewater Management: Facilitates the monitoring of water quality and wastewater treatment processes, ensuring compliance with environmental regulations.

• Power Generation: Used in monitoring power systems for temperature, voltage, and current parameters in power generation plants.

Product Advantages

• High Accuracy: With a 16-bit resolution, the 170AAI52040 offers high-precision analog input processing, ensuring reliable data acquisition.

• Wide Input Range: Supports a wide variety of input types, including voltage and current, which makes it versatile for various industrial applications.

• Easy Integration: The device is designed for easy integration into Schneider Electric’s Modicon M580 platform, ensuring seamless operation within existing automation systems.

• Rugged Design: Built for demanding industrial environments, the 170AAI52040 operates in temperatures ranging from -20°C to 60°C, ensuring reliability even in harsh conditions.

• Compact Size: With its small form factor, the device can be easily installed in limited spaces, providing flexibility for system designers.

• Energy Efficient: The device operates on a 24V DC power supply, which helps to reduce energy consumption in large-scale industrial systems.

Frequently Asked Questions (FAQ)

1. What type of inputs does the 170AAI52040 support?

   • The 170AAI52040 supports both voltage and current input types, including ±10V, 0-20mA, and 4-20mA.

2. How many inputs does the 170AAI52040 provide?

   • It offers 16 analog input channels for connecting sensors or other analog devices.

3. What is the resolution of the 170AAI52040?

   • The device provides a 16-bit resolution, ensuring accurate measurement and data acquisition.

4. What is the operating temperature range of the 170AAI52040?

   • The device can operate in a temperature range from -20°C to 60°C.

5. How is the 170AAI52040 mounted?

   • The 170AAI52040 is mounted on a DIN rail for easy installation in standard industrial enclosures.

6. What is the weight of the 170AAI52040?

   • The device weighs 0.215 kg, making it lightweight and easy to handle.

7. What power supply does the 170AAI52040 require?

   • It requires a 24V DC power supply to operate.

8. Can the 170AAI52040 be used with Schneider Electric’s Modicon M580 platform?

   • Yes, it is fully compatible with the Modicon M580 platform and communicates via Modbus TCP and Modbus RTU.

9. What are the main industries that can benefit from using the 170AAI52040?

   • Key industries include process control, building automation, oil and gas, water management, and power generation.

10. Is the 170AAI52040 suitable for harsh industrial environments?

• Yes, the device is designed for demanding environments and can withstand temperatures ranging from -20°C to 60°C.
