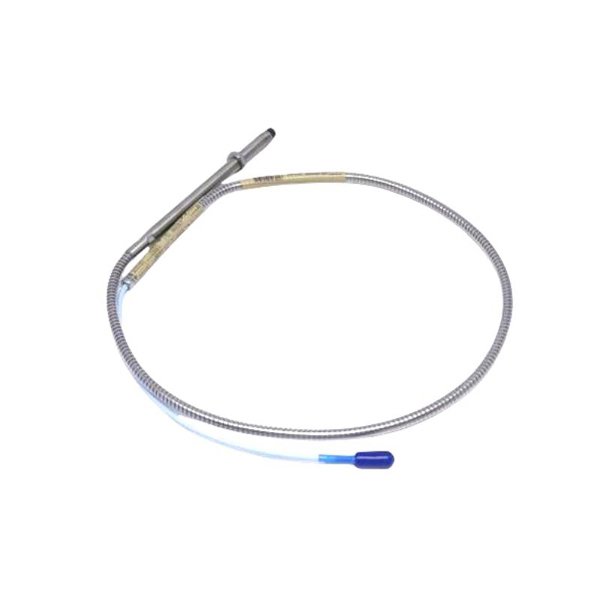

The Bently Nevada 330106-05-30-05-02-05 3300 XL 8 mm Reverse Mount Probes are high-performance, non-contact eddy current probes specifically designed for measuring the displacement of rotating machinery. These probes are part of the 3300 XL series, renowned for their precision, reliability, and robustness. The reverse mount design of the probe allows for installation in confined spaces or difficult-to-reach areas, which is a common challenge in many industrial applications.

The 3300 XL 8 mm Reverse Mount Probes offer high sensitivity and are capable of detecting even the smallest shaft movements, making them essential for monitoring machinery such as turbines, compressors, pumps, and motors. They operate using eddy current sensing technology, which enables accurate displacement measurements without physical contact with the shaft, reducing wear and tear over time.

These probes are built to withstand harsh industrial environments, with materials resistant to corrosion and high temperatures. Designed to integrate seamlessly with Bently Nevada’s 3500 Series and other monitoring systems, the 3300 XL probes are an essential tool for continuous machinery monitoring and predictive maintenance, helping to reduce unplanned downtime and extend the lifespan of critical equipment.

Technical Specifications

Applications

The 3300 XL 8 mm Reverse Mount Probes are versatile and suitable for a wide range of industrial applications where shaft vibration and displacement monitoring is critical. Below are the key areas where this probe excels:

• Turbines: These probes are used in both steam and gas turbines for real-time shaft vibration and displacement monitoring, which helps identify early signs of wear, misalignment, or imbalance before they lead to catastrophic failures.

• Compressors: Installed in compressors, the probes measure shaft position and vibration, ensuring safe operation and providing early warnings of any issues, such as rotor misalignment or bearing wear.

• Pumps: The probes are effective for monitoring pumps, detecting vibrations or shaft movement that might indicate misalignment or issues with bearings, helping to prevent unplanned maintenance and failures.

• Motors and Generators: In electric motors and generators, these probes measure shaft displacement, detecting any signs of mechanical wear or instability, allowing for timely corrective actions.

• Fan Systems: Installed in large industrial fan systems, the probes provide critical data on shaft displacement, helping to monitor the condition of bearings and the alignment of rotating parts.

• Heavy Machinery: The probes are ideal for use on heavy industrial machinery such as crushers, mills, and grinders, providing early detection of mechanical issues that could disrupt operations.

Key Advantages

• Reverse Mount Design: The reverse-mount design allows installation in tight or challenging spaces where conventional mounting options may not be feasible, providing flexibility in machinery monitoring.

• Non-contact Measurement: The use of eddy current technology enables non-contact measurement, minimizing wear and tear on the probe and ensuring long-term, reliable performance.

• High Precision: With an 8mm measurement range, the probe offers high-resolution displacement measurements, which are essential for detecting even minute changes in shaft position, enabling predictive maintenance.

• Durable and Corrosion-Resistant: The probe’s stainless steel body and ceramic tips ensure durability and resistance to corrosion, making it ideal for harsh industrial environments with exposure to moisture, chemicals, or extreme temperatures.

• Real-time Data for Predictive Maintenance: By continuously monitoring shaft displacement, the 3300 XL probes provide real-time data that can be used to predict failures, thereby reducing downtime and repair costs.

• Wide Operating Temperature Range: With an operating temperature range of -40°C to +120°C, these probes can be used in a variety of industrial environments, from freezing conditions to high-heat applications.

• Hazardous Location Certification: ATEX certification ensures that the probes can be used in hazardous environments where explosive gases or dust may be present, ensuring safety and compliance with regulations.

• Easy Integration: These probes are designed to seamlessly integrate with Bently Nevada’s 3500 Series and other monitoring systems, ensuring a hassle-free installation and integration process.

• Longer Probe Lifespan: Non-contact technology, combined with durable construction, extends the life of the probe and reduces the need for maintenance or replacement.

• Cost-Effective: By detecting potential issues early, the probes help to reduce the overall cost of maintenance and downtime, providing a cost-effective solution for machinery protection.

Frequently Asked Questions (FAQ)

1. What is the measurement range of the Bently Nevada 3300 XL 8 mm Reverse Mount Probes?

   The measurement range of the 3300 XL Reverse Mount Probe is 8mm, providing high-precision displacement measurements.

2. How does the reverse-mount design benefit users?

   The reverse-mount design allows for flexible installation in tight spaces, making it ideal for machines with limited mounting options.

3. What technology does the 3300 XL probe use?

   The probe uses eddy current sensing technology, enabling non-contact, high-precision measurements of shaft displacement.

4. What types of applications can the 3300 XL probes be used in?

   The probes are used in turbines, compressors, pumps, motors, fan systems, and heavy machinery for vibration and displacement monitoring.

5. What is the operating temperature range for the probe?

   The operating temperature range for the 3300 XL probe is -40°C to +120°C, suitable for most industrial applications.

6. Is the 3300 XL Reverse Mount Probe suitable for hazardous locations?

   Yes, the probe is ATEX certified, making it safe to use in hazardous environments where explosive gases or dust are present.

7. What certifications does the 3300 XL probe have?

   The probe is certified with CE, UL, ATEX, and RoHS, ensuring compliance with international safety, environmental, and quality standards.

8. How is the probe mounted?

   The 3300 XL Reverse Mount Probe features a reverse-mount configuration, which allows installation in tight or difficult-to-reach spaces.

9. What is the weight of the 3300 XL Reverse Mount Probe?

   The probe weighs 0.161 kg.

10. What kind of data does the 3300 XL probe provide?

    The 3300 XL probe provides real-time displacement data that can be used for predictive maintenance and machinery protection.
