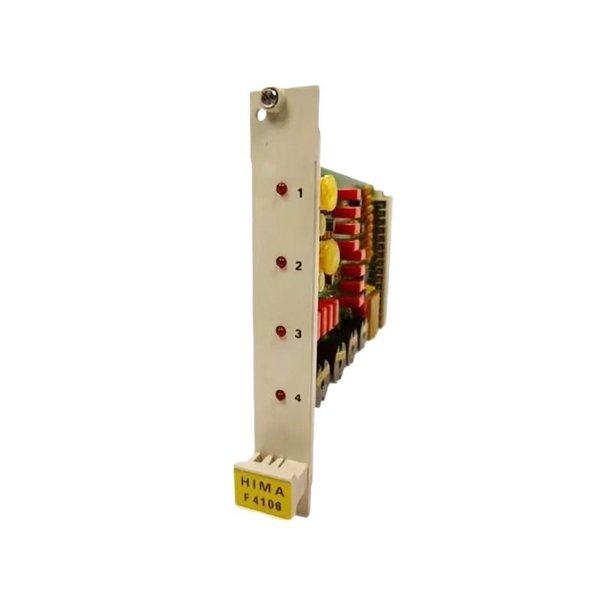

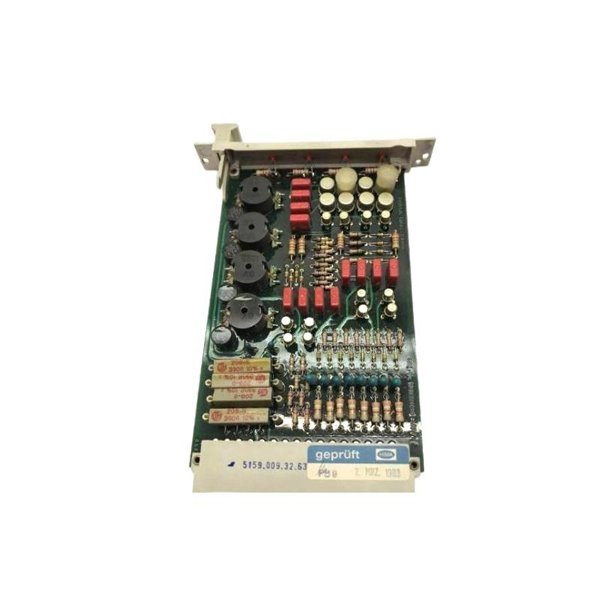

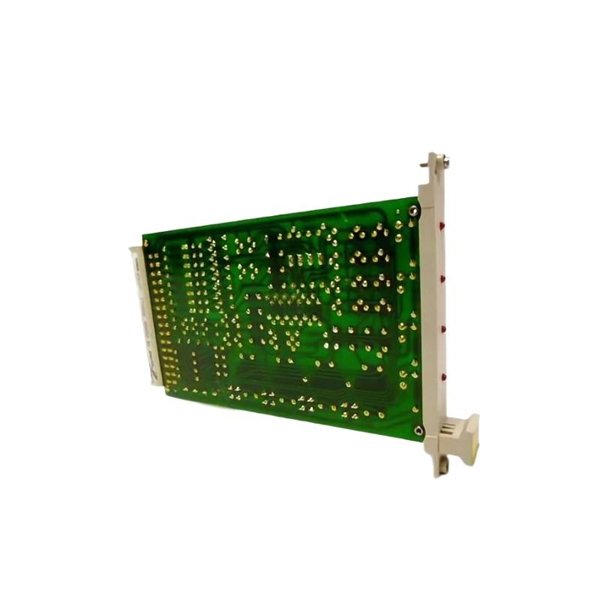

The HIMA F4106 4-Channel Door Card is a compact, safety-related I/O module engineered for use in high-integrity safety systems. Developed by HIMA, a global leader in safety automation solutions, the F4106 module is primarily deployed in critical control systems where fail-safe door monitoring and control is essential. Each unit is equipped with four independent input/output channels, enabling seamless integration with access panels, doors, and hatches on industrial cabinets and enclosures.

The module is part of HIMA’s modular hardware platform and can be integrated into HIMax or HIQuad safety systems, facilitating both centralized and distributed architectures. It enables monitoring of door status, control of solenoids, and safety interlocking—all under stringent SIL (Safety Integrity Level) standards.

Its robust design ensures continuous operation in harsh environments, including power plants, oil & gas facilities, chemical plants, and other high-risk industrial settings.

Technical Specifications

Product Applications

The HIMA F4106 is widely used in process and manufacturing industries where operator access control and safety interlocking are crucial for ensuring equipment integrity and personnel safety. Common applications include:

• Industrial Cabinet Door Monitoring: Detects open/closed door status and interlocks power or process access.

• Access Control for High-Voltage Switchgear: Prevents accidental opening under live conditions.

• Machine Guarding: Integrated into guarding systems to ensure safe access after machine stop.

• Emergency Shutdown Panels: Enables monitored access to shutdown controls.

• Hazardous Area Enclosures: Ensures access is only allowed when it’s safe.

• Railway and Transportation Equipment: Used in secure door control and monitoring applications.

Product Advantages

• Dual Function Channels: Each of the four channels can be configured for either input or output, enhancing system flexibility.

• Safety Certification (SIL 3): Meets stringent safety standards required for critical applications.

• Compact Form Factor: Slim design allows high-density installation in control cabinets.

• Galvanic Isolation: Improves system resilience by electrically isolating each channel.

• Fail-Safe Operation: Designed to detect open circuits and faults with diagnostic feedback.

• Robust Construction: Withstands harsh industrial environments with temperature and humidity protection.

• System Compatibility: Fully compatible with HIMA’s HIMax and HIQuad platforms, supporting seamless integration.

• Long Lifecycle Support: Backed by HIMA’s commitment to long-term availability and lifecycle management.

• Fast Switching and Response: Optimized for real-time control and safety feedback.

• Easy Commissioning: Supports diagnostic tools and system validation for fast deployment.

Frequently Asked Questions (FAQ)

1. What does the HIMA F4106 module do?

   It monitors and controls door access points in safety-critical environments using 4 configurable channels.

2. Is it certified for safety applications?

   Yes, it is SIL 3 certified according to IEC 61508.

3. Can the F4106 be used with HIMax systems?

   Yes, it is compatible with both HIMax and HIQuad safety systems.

4. How many doors can I monitor with one module?

   Up to four doors or access points using the four individual channels.

5. Is this module hot-swappable?

   It depends on the system architecture, but many installations support hot-swapping for minimal downtime.

6. What happens if a door switch fails?

   The module detects the fault and can trigger alarms or prevent further system operation for safety.

7. Can this be used in explosive environments?

   ATEX-certified versions are available for Zone 2 applications.

8. Is there LED status indication on the module?

   Yes, each channel typically includes status LEDs for diagnostics and monitoring.

9. What output types are supported?

   Outputs can be relay-based or digital depending on configuration and system design.

10. What kind of wiring is required for installation?

    Standard shielded multi-core cables are typically used for secure signal integrity.
