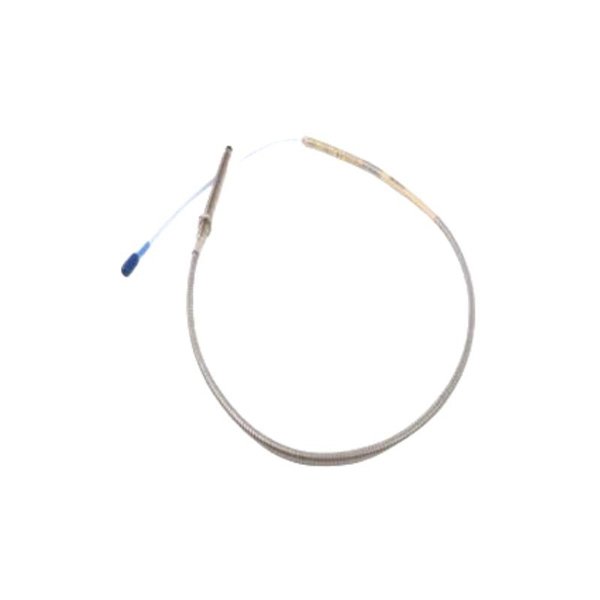

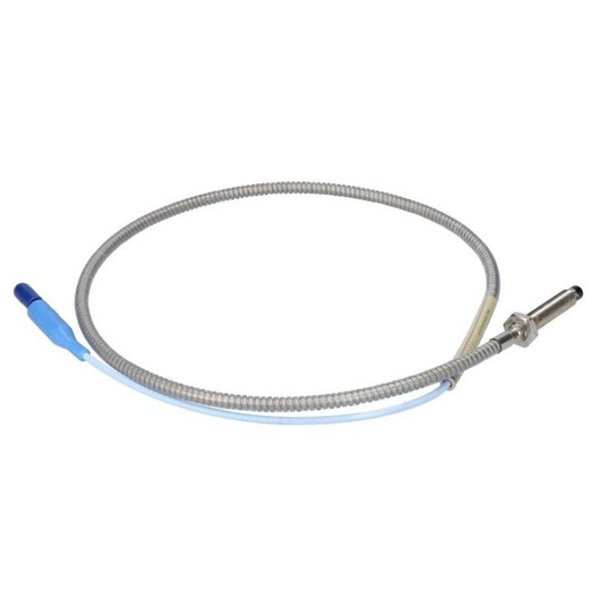

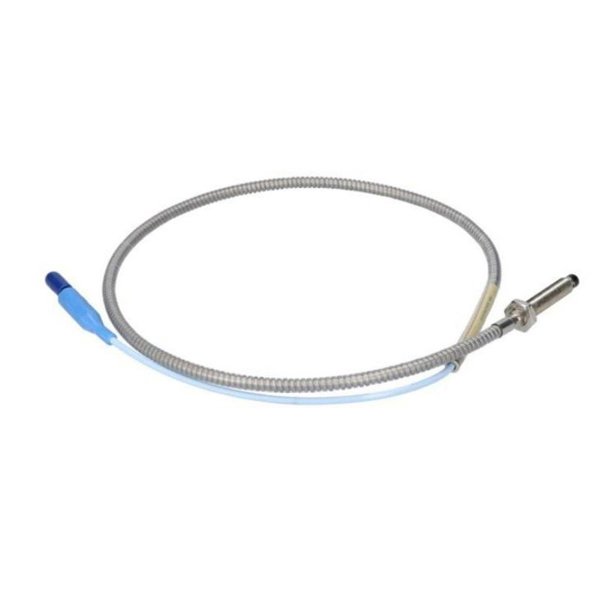

Bently Nevada 330104-08-16-20-02-05 3300 XL 8 mm Proximity Probe
Manufacturer:Bently Nevada
Product Number:330104-08-16-20-02-05
Product Type:3300 XL 8 mm Proximity Probe
Origin:USA
Total Length:2.0 meters
Weight:0.646 kg
Views:30
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330104-08-16-20-02-05 is a robust, high-performance 8 mm proximity probe from the 3300 XL series. Designed for precise static and dynamic measurements, it is ideal for use in fluid-film bearing machines. It offers excellent linearity, high resistance to EMI/RFI, and is fully compatible with all XL and non-XL 3300 systems.
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | 330104-08-16-20-02-05 |
| Probe Type | 8 mm proximity probe |
| Thread Size | M10 x 1 metric thread |
| Armor | Yes |
| Cable Type | ClickLoc connector, standard cable |
| Total Length | 2.0 meters |
| Weight | 0.646 kg |
| Case Material | Stainless Steel (AISI 303/304) |
| Tip Material | PPS (Polyphenylene Sulfide) |
| Temperature Range | -52°C to +177°C (standard) |
| Output Signal | 200 mV/mil (7.87 V/mm) |
| Linear Range | 2 mm (80 mils) |
| Minimum Bend Radius | 25.4 mm (1 inch) |
| Frequency Response | 0 – 10 kHz (+0, -3 dB) |
| Recommended Shaft Diameter | ≥76.2 mm (3 inches) |
Applications
-
Shaft vibration monitoring
-
Thrust position detection
-
Speed and Keyphasor signal measurement
-
Condition monitoring in turbines, compressors, motors
-
Machinery protection systems in hazardous areas
Product Advantages
-
Fully API 670 compliant (mechanical, electrical, accuracy)
-
Backward-compatible with 3300 and 5 mm/8 mm series
-
High immunity to electromagnetic interference (RFI/EMI)
-
Durable PPS tip with patented TipLoc™ and CableLoc™ designs
-
No calibration or matching required between system components
-
Optional FluidLoc™ cable to prevent oil leakage
FAQ (Frequently Asked Questions)
Q1: What is the linear range of the 330104-08-16-20-02-05?
A1: The linear range is 2 mm (80 mils), from approximately 0.25 mm to 2.3 mm.
Q2: Is this probe compatible with older 3300 systems?
A2: Yes, it is electrically and mechanically backward-compatible with non-XL 3300 series.
Q3: What type of connector does the probe use?
A3: It uses a ClickLoc gold-plated miniature coaxial connector.
Q4: Can this probe be used in hazardous environments?
A4: Yes, it is certified for use in Class I, Zone 0/2 and Division 2 hazardous locations.
Q5: Does it meet API 670 standards?
A5: Yes, the probe system is fully compliant with API 670 for linearity, configuration, and performance.
Q6: What is the material of the probe tip?
A6: The probe tip is molded from Polyphenylene Sulfide (PPS), offering excellent durability.
Q7: What is the maximum cable bend radius?
A7: The minimum permissible cable bend radius is 25.4 mm (1 inch).
Q8: Does it require calibration for use with a Proximitor sensor?
A8: No calibration or matching is required; components are interchangeable.
Q9: What temperature can the standard version withstand?
A9: Operating temperature is -52°C to +177°C for the standard version.
Q10: What’s the benefit of the armored version?
A10: It provides extra protection against mechanical wear and environmental exposure.
