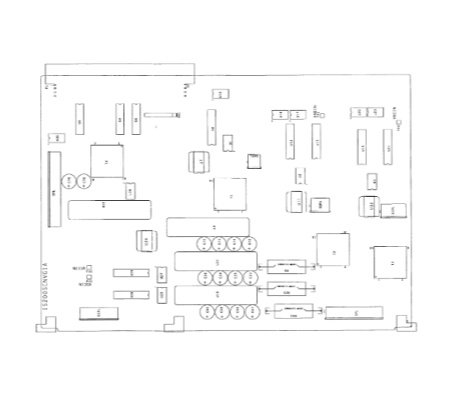

The GE IS200SCNVG1A is an SCR diode bridge control board for GE Speedtronic systems for turbine control and power generation. It helps to rectify AC to DC and is used in systems involving silicon controlled rectifier technology to control power flow.

The IS200SCNV SCR-Diode Converter Interface Board (SCNV) is a control bridge interface board for the Innovative Series SCR-Diode Converters (1800 Amp and 1000 Amp standalone units).

It is used to drive a six-pulse source of three SCRs (66 mm or smaller) per board. It is not used to drive paralleled SCRs from the same board.

The SCNV board includes three input current sensing circuits, three SCR gate drive circuits, two line-to-line voltage feedback circuits, one DC link voltage feedback circuit, one DBIBGTVCE feedback circuit, and one Dynamic Braking (DB) IGBT gate drive circuit.

Frequently asked questions about the product are as follows:

-What are the main functions of the IS200SCNVG1A?

It converts AC to DC, ensuring the correct DC voltage is provided to critical components in systems such as turbines, motors, and other industrial automation equipment.

-How does the IS200SCNVG1A enhance system reliability?

Effectively converting AC to DC ensures stable and consistent power to sensitive components, while its protection features help prevent system damage.

-What industries is the IS200SCNVG1A used for?

It is used in turbine control systems, power plants, motor control systems, and industrial automation applications.
