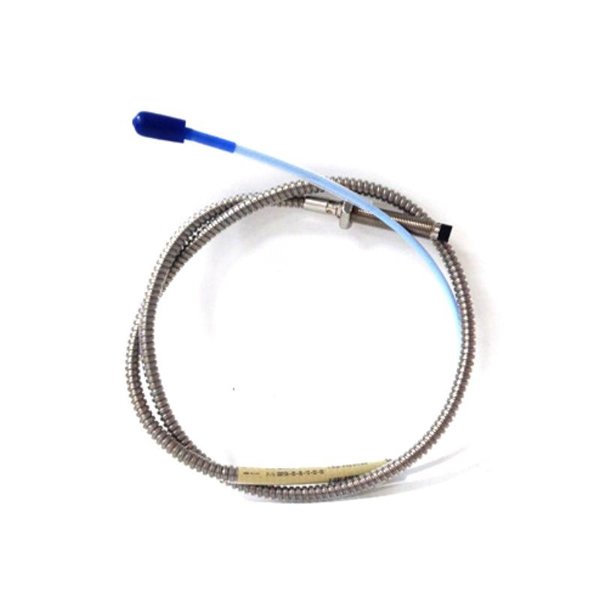

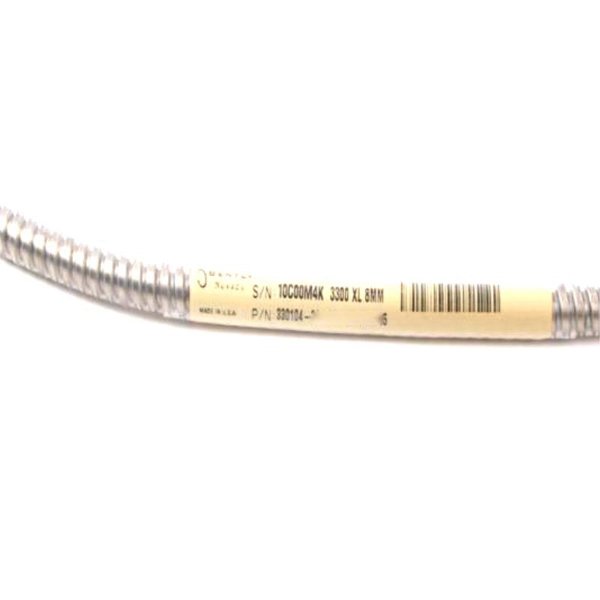

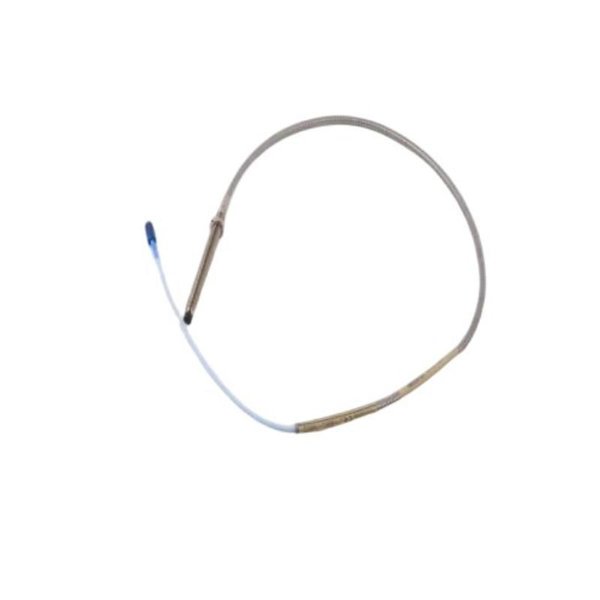

Bently Nevada 330104-00-13-05-02-00 3300 XL 8 mm Proximity Probe
Manufacturer:Bently Nevada
Product Number:330104-00-13-05-02-00
Product Type:3300 XL 8 mm Proximity Probe
Origin:USA
Total Length:0.5 meter
Weight:0.162 kg
Views:33
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330104-00-13-05-02-00 is a robust 8 mm proximity probe, part of the 3300 XL series, designed for precision measurement of shaft position and vibration in rotating machinery. It delivers a linear voltage output proportional to the distance to a conductive surface, supporting both dynamic and static measurements. The probe features armored construction with M10 x 1 threading and is optimized for industrial environments requiring high reliability and compliance with API 670 standards.
Product Applications
-
Shaft vibration and position monitoring in turbines, compressors, pumps, and motors
-
Keyphasor reference signal generation
-
Installation in hazardous and high-temperature industrial environments
Product Advantages
-
Fully compliant with API 670 mechanical and performance standards
-
Interchangeable with other 3300 XL 8 mm and non-XL components
-
High immunity to EMI/RFI and harsh environmental conditions
-
ClickLoc connectors ensure secure and tool-free installation
-
Extended temperature and pressure resistance with armored cable
Technical Specifications
| Parameter | Value |
|---|---|
| Model | 330104-00-13-05-02-00 |
| Probe Tip Diameter | 8 mm |
| Thread | M10 x 1 |
| Cable Type | Armored with standard ClickLoc connector |
| Total Length | 0.5 meter (1.6 feet) |
| Weight | 0.162 kg |
| Operating Temperature Range | -52°C to +177°C (probe tip) |
| Extended Temp (optional) | Up to +218°C (probe tip) |
| Recommended Gap | ~1.27 mm (50 mils) |
| Linear Range | 2 mm (80 mils) |
| Frequency Response | 0 to 10 kHz, ±3 dB |
| Shaft Diameter (recommended) | ≥ 76.2 mm (3 in) |
FAQ
Q1: What is the linear measurement range of this probe?
A1: The linear range is 2 mm (80 mils) from approximately 0.25 mm to 2.3 mm.
Q2: Is the probe compliant with API 670 standards?
A2: Yes, it meets API 670 standards for linearity, mechanical design, and temperature stability.
Q3: Can the probe be used in hazardous environments?
A3: Yes, it has CSA, ATEX, and IECEx approvals for hazardous locations when installed correctly.
Q4: What is the recommended shaft diameter for installation?
A4: A minimum shaft diameter of 76.2 mm (3 inches) is recommended to reduce cross-talk and ensure accuracy.
Q5: Is it backward compatible with older 3300 series systems?
A5: Yes, it is compatible and interchangeable with non-XL 3300 8 mm and 5 mm components.
Q6: Does the armored cable improve durability?
A6: Yes, the stainless-steel armor provides additional mechanical protection in demanding environments.
Q7: What type of connector does it use?
A7: It uses a gold-plated, corrosion-resistant ClickLoc connector that “clicks” when properly tightened.
Q8: How does it handle EMI and RFI interference?
A8: The probe system is designed with high immunity to EMI and RFI, making it suitable for use in industrial settings.
Q9: Can it operate at elevated temperatures?
A9: Yes, the standard probe operates up to 177°C, with extended temperature versions supporting up to 218°C at the tip.
Q10: Is special calibration needed when replacing components?
A10: No, all components are interchangeable without requiring bench calibration.
