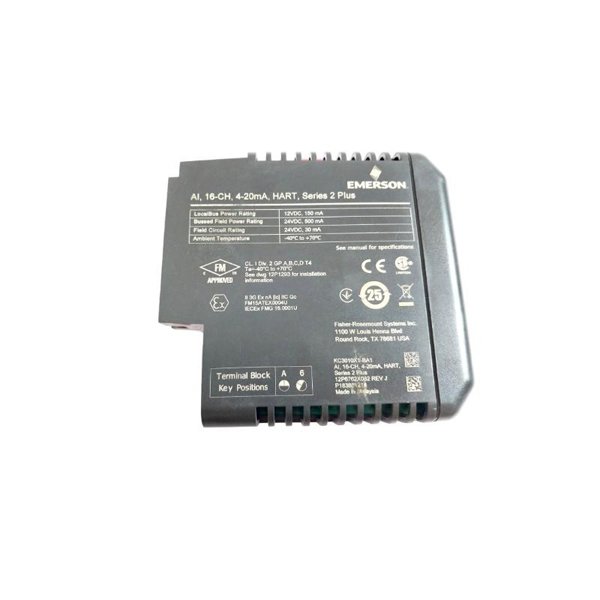

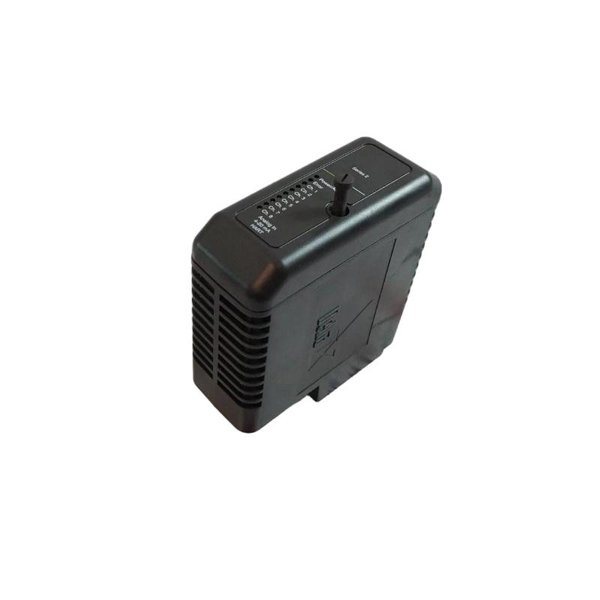

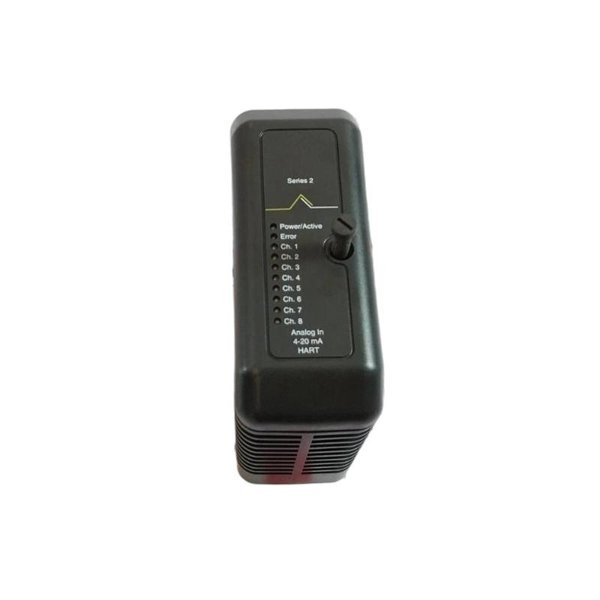

The Emerson KC3010X1-BAI is an advanced analog input module designed to offer high accuracy and reliability in industrial automation systems. This module is a part of Emerson’s DeltaV control systems, providing efficient and precise conversion of analog signals into digital data for further processing and decision-making. It is widely used in process control, manufacturing, and oil and gas industries where precise monitoring of analog signals such as temperature, pressure, flow, and level is crucial.

The KC3010X1-BAI module supports a wide range of analog input types including 4-20 mA, 0-10 V, and other industry-standard signals, ensuring compatibility with various field devices. It is engineered for high-speed signal processing, offering a rapid response time to maintain real-time control of industrial processes.

With a compact size of 107 x 41 x 105 mm and a light weight of 0.23 kg, the module is designed to fit into space-constrained control panels, making it ideal for both new installations and retrofits of existing systems. The KC3010X1-BAI also features easy integration with other DeltaV system components, ensuring seamless communication within a control environment.

Product Parameters

Product Applications

The Emerson KC3010X1-BAI analog input module is designed for a broad range of industrial applications that require high-speed, reliable analog-to-digital signal conversion. Its key applications include:

• Process Control: The module is widely used in chemical plants, refineries, and power plants to monitor critical process parameters such as temperature, pressure, flow, and level. It interfaces directly with field instruments to collect and process analog signals.

• Factory Automation: In automated manufacturing environments, the KC3010X1-BAI is used to monitor equipment performance and control systems by collecting analog input signals from devices like flowmeters, temperature sensors, and pressure transmitters.

• Oil and Gas Industry: The module supports remote monitoring of pumps, valves, and pressure vessels in the oil and gas sector, providing critical data for real-time monitoring and decision-making.

• Building Automation: In HVAC systems, it collects data from temperature sensors, humidity sensors, and other field devices to maintain optimal conditions and improve energy efficiency.

• Machine Monitoring: The module is used to collect data from machine sensors, providing information for predictive maintenance and real-time fault detection.

Its compact size and flexible mounting options make it a perfect choice for systems where space is at a premium, while ensuring reliable data acquisition for critical industrial applications.

Product Advantages

The Emerson KC3010X1-BAI analog input module offers several advantages that make it a preferred choice for industrial environments:

• Compact and Lightweight: With dimensions of 107 x 41 x 105 mm and weighing only 0.23 kg, the module is designed to fit into tight spaces in control panels, reducing overall system footprint.

• Wide Signal Compatibility: It supports various input signal types, including 4-20 mA and 0-10 V, providing flexibility in connecting to a wide range of field devices and sensors.

• Fast Response Time: The module is designed for high-speed signal processing, ensuring that real-time data is captured and processed with minimal delay.

• Reliable and Durable: Built to withstand harsh industrial environments, the KC3010X1-BAI is reliable even in extreme temperatures, operating from -20°C to +60°C.

• Easy Integration: The module integrates seamlessly with other DeltaV system components, providing easy configuration and communication within your control network.

• Energy Efficiency: By using analog inputs to monitor vital system parameters, the module helps to optimize processes and improve energy efficiency, reducing operational costs.

• Advanced Diagnostics: The module includes built-in diagnostic features to detect potential faults or abnormal conditions, reducing downtime and enhancing system performance.

FAQ

1. What is the primary function of the Emerson KC3010X1-BAI module?

   • The KC3010X1-BAI is an analog input module designed to collect and process analog signals from field devices such as sensors and transmitters in industrial automation systems.

2. What input signal types are supported by the module?

   • The module supports 4-20 mA, 0-10 V, and other common analog input signals.

3. What is the operating temperature range of the KC3010X1-BAI?

   • The module operates in a temperature range of -20°C to +60°C.

4. How many channels does the KC3010X1-BAI have?

   • The module has 4 input channels.

5. What is the mounting type of this module?

   • The KC3010X1-BAI is DIN rail mounted, making it easy to integrate into standard control panels.

6. What is the weight of the module?

   • The module weighs 0.23 kg, making it lightweight and easy to handle.

7. Can the module be used in process control systems?

   • Yes, the KC3010X1-BAI is designed for use in process control systems, where it collects data from various sensors to monitor critical process variables.

8. What industries is this module typically used in?

   • It is commonly used in industries such as chemical processing, oil and gas, manufacturing, and building automation.

9. What are the main advantages of using the KC3010X1-BAI module?

   • The module offers compact size, wide input compatibility, fast response time, reliable operation, and easy integration with DeltaV systems.

10. Is the KC3010X1-BAI module energy-efficient?

    • Yes, the module helps optimize energy usage by efficiently monitoring critical process parameters, reducing operational costs.
