Manufacturer:Schneider
Product Number:ABE7CPA02
Product Type:Connection Sub-Base
Origin:France
Dimensions:125 x 70 x 67mm
Weight:0.29 kg
Views:51
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24

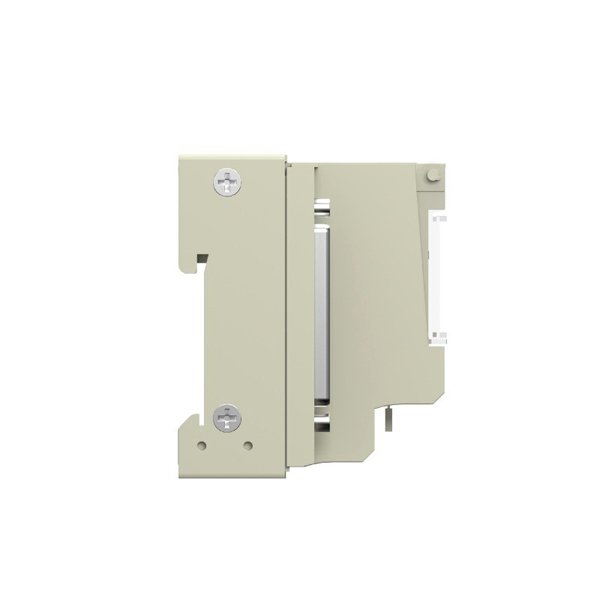

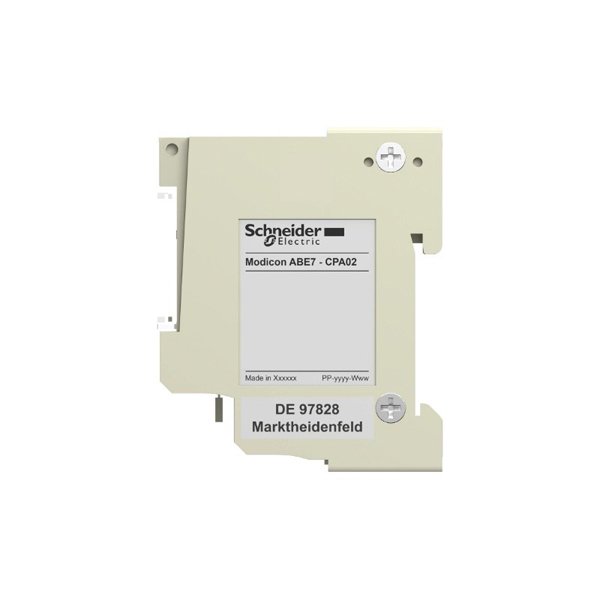

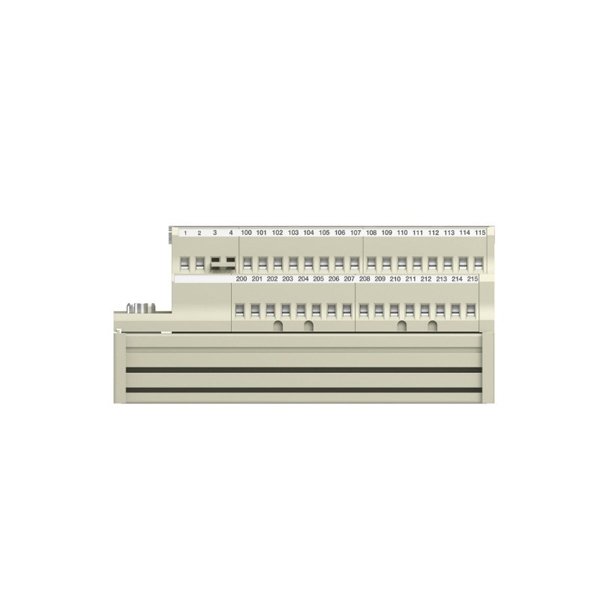

The Schneider ABE7CPA02 is a high-performance connection sub-base designed for interfacing discrete input/output modules with field wiring in industrial automation environments. As part of the Telemecanique ABE7 series, this sub-base provides a compact, durable, and organized solution for simplifying wiring and ensuring consistent connectivity across programmable logic controllers (PLCs) and peripheral devices.
Engineered for ease of integration, the ABE7CPA02 offers screw terminal connections for solid reliability and quick setup. It is compatible with a wide range of Schneider Electric I/O modules and is ideal for use in control cabinets and distributed I/O systems. Its robust construction makes it suitable for harsh industrial conditions, delivering exceptional mechanical strength and insulation properties.
| Parameter | Specification |
|---|---|
| Product Name | ABE7CPA02 |
| Series | Telemecanique ABE7 |
| Product Type | Connection Sub-Base |
| Connector Type | Screw terminal block |
| Number of Channels | 8 |
| Mounting Type | DIN rail |
| Compatibility | Compatible with discrete input modules |
| Insulation Resistance | >100 MΩ at 500 V DC |
| Maximum Voltage | 250 V AC or 60 V DC |
| Maximum Current per Channel | 2 A |
| Material | High-impact thermoplastic housing |
| IP Rating | IP20 |
| Operating Temperature | -5°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Dimensions (W x H x D) | 125 x 70 x 67 mm |
| Weight | 0.29 kg |
| Certifications | CE, UL, CSA |
| RoHS Compliant | Yes |
The Schneider ABE7CPA02 connection sub-base is suitable for a wide variety of industrial and automation applications, including:
Manufacturing Automation
Facilitates efficient wiring between I/O modules and machine-level sensors or actuators.
Process Control Systems
Supports reliable signal interfacing in refineries, chemical plants, and food processing units.
Building Automation
Enables easy integration of control components in HVAC and lighting control panels.
Material Handling Systems
Used for control interfacing in conveyor systems, sorters, and robotic arms.
Water Treatment Plants
Connects control modules to sensors and relays for monitoring flow, pressure, and chemical levels.
Packaging and Assembly Lines
Simplifies wiring infrastructure for highly repetitive I/O configurations.
Compact Design: Takes up minimal panel space, allowing for dense installation of multiple sub-bases.
Simplified Wiring: Screw terminals enable quick and secure wiring without the need for special tools.
High Compatibility: Fully compatible with Schneider discrete input modules, ensuring seamless integration.
DIN Rail Mounting: Easy and standardized installation on 35 mm DIN rails.
Robust Construction: Resistant to mechanical impact and suitable for industrial-grade environments.
Clear Channel Identification: Marked terminals ensure clarity during wiring, reducing errors.
Field-Friendly Design: Designed with field wiring challenges in mind—accessible, organized, and reliable.
Electrical Safety: IP20 rated and CE/UL compliant to ensure operator and equipment protection.
RoHS Compliant: Environmentally friendly and free from hazardous materials.
Cost-Effective: Provides reliable performance at an affordable price, minimizing control system costs.
Q: What type of I/O modules is the ABE7CPA02 compatible with?
A: It is designed to work with Schneider discrete input modules from the ABE7 series.
Q: How many channels does the ABE7CPA02 support?
A: The sub-base supports 8 channels for field connections.
Q: Can this sub-base be mounted on a DIN rail?
A: Yes, it is DIN rail mountable for easy installation.
Q: What is the IP rating of this product?
A: The ABE7CPA02 has an IP20 protection rating.
Q: What type of terminal does it use?
A: It uses screw terminal connections for secure and easy wiring.
Q: What are the dimensions of the ABE7CPA02?
A: 125 x 70 x 67 mm.
Q: What is the operating temperature range?
A: It operates between -5°C and +60°C.
Q: Is it RoHS compliant?
A: Yes, it is fully RoHS compliant.
Q: What is the maximum current per channel?
A: Each channel can handle up to 2 A of current.
Q: Is it certified for international use?
A: Yes, it is CE, UL, and CSA certified for global compliance.
