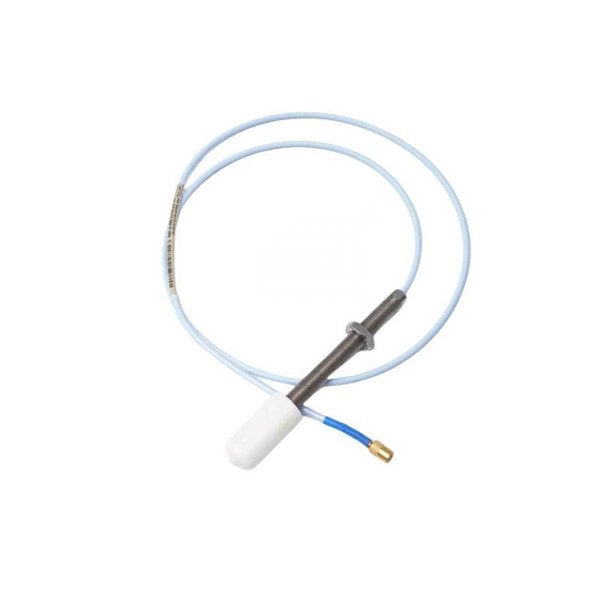

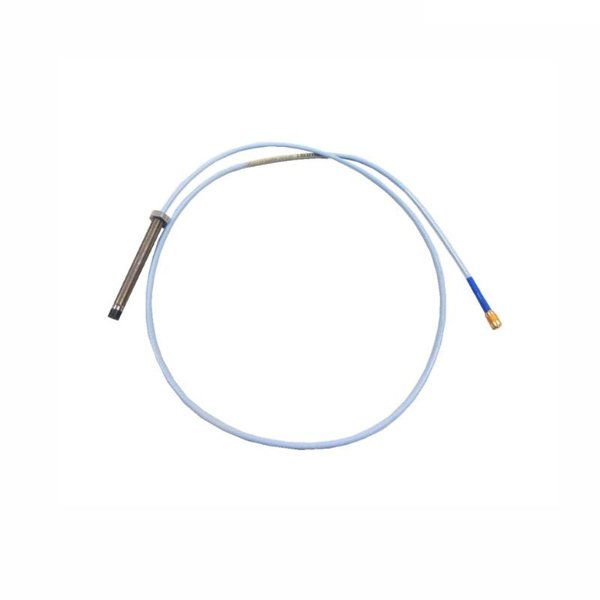

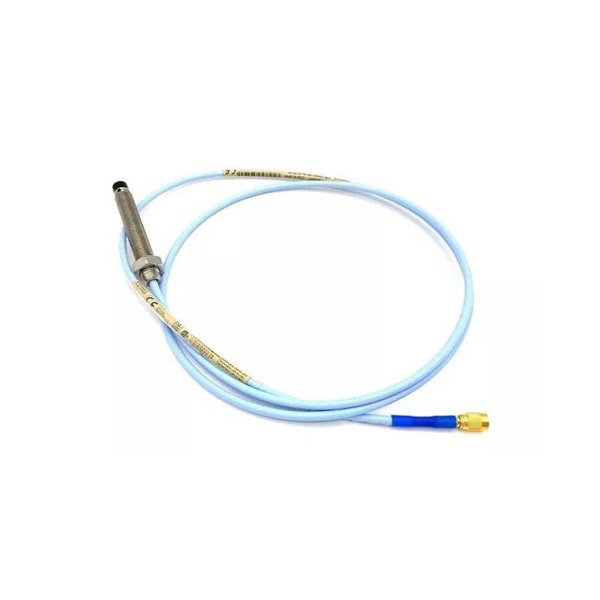

The Bently Nevada 330103-00‑05‑10‑02‑IN is an 8 mm proximity probe in the 3300 XL series, designed for high-precision, non-contact shaft vibration and displacement measurement in rotating machinery. Its 1.0-meter cable with a miniature coaxial ClickLoc™ connector ensures flexible installation. The probe features a PPS tip and stainless steel housing for reliable operation in harsh industrial environments.

For detailed information or guidance on compatibility and options, please contact our technical support team.

Product Specifications

Applications

• Vibration Monitoring: Early detection of radial and axial shaft vibrations to prevent machinery failures.

• Shaft Position Measurement: Accurate displacement data for alignment and balance optimization.

• Keyphasor® Pulse Output: Provides synchronization signals for control and protection systems.

• Harsh Environment Use: Suitable for high-temperature, high-humidity, or contaminated industrial conditions.

For any questions regarding installation, configuration, or selecting the right model, please contact us.

Product Advantages

• Exceptional Accuracy: Reliable, repeatable non-contact vibration measurements.

• Robust Construction: High-grade materials ensure durability in harsh industrial settings.

• Seamless Integration: Fully compatible with 3300 XL monitoring platforms.

• Industry Standard Compliance: Meets API 670 machinery protection requirements.

• Installation Flexibility: 1 m cable allows for adaptable installation.

FAQ

Q1: How do I set the correct probe-to-shaft gap?

A1: Use a standardized feeler gauge to establish the recommended clearance between the tip and shaft.

Q2: Can the probe handle rapid rotational changes?

A2: Yes, the probe maintains accuracy across the rated speed range.

Q3: Any tips for avoiding signal interference during installation?

A3: Route the cable away from electrical noise sources, ensure proper shielding and grounding, and maintain firm cable connections.

Q4: How do I test probe function after installation?

A4: Use the system’s self-test and verify Keyphasor® pulse and vibration signals.

Q5: Is the PPS tip compatible with different shaft materials?

A5: Yes, PPS is compatible with all standard target alloys.

Q6: How can I quickly confirm Keyphasor® output accuracy?

A6: Monitor signal timing under stable conditions and compare against known reference pulses.

Q7: Can the cable be extended beyond 1 m if needed?

A7: Longer cables may cause signal attenuation; please contact our support for guidance.

Q8: What error patterns suggest probe wear or failure?

A8: Irregular pulses, signal dropouts, or noise spikes typically indicate probe or cable degradation.

Q9: Does replacing the probe require system recalibration?

A9: No—3300 XL probes are plug-and-play.

Q10: How do I deal with probe signal issues once installed?

A10: Check the mounting gap, cable integrity, grounding, and avoid routing near electromagnetic interference. For expert troubleshooting support, please contact us.
