Manufacturer:Bently Nevada
Product Number:330104-00-08-05-02-05
Product Type:3300 XL 8 mm Proximity Probe
Origin:USA
Total Length:0.5 meter
Weight:0.162 kg
Views:67
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24

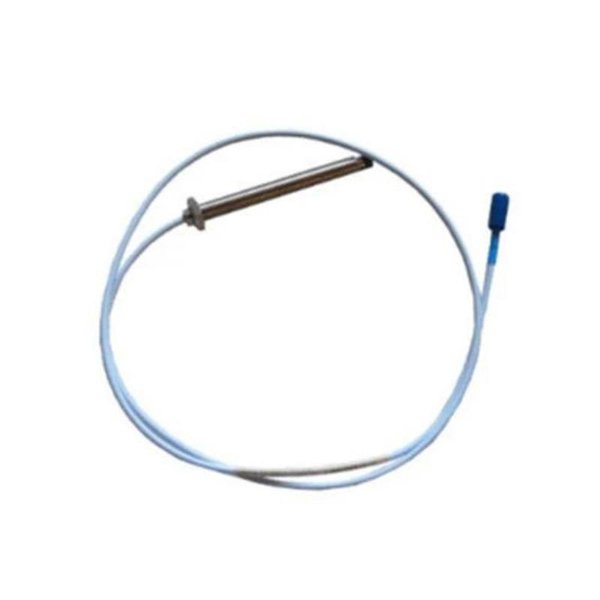

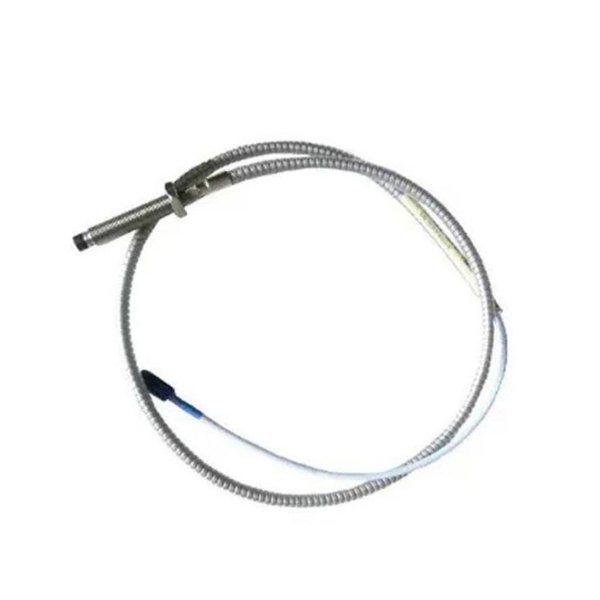

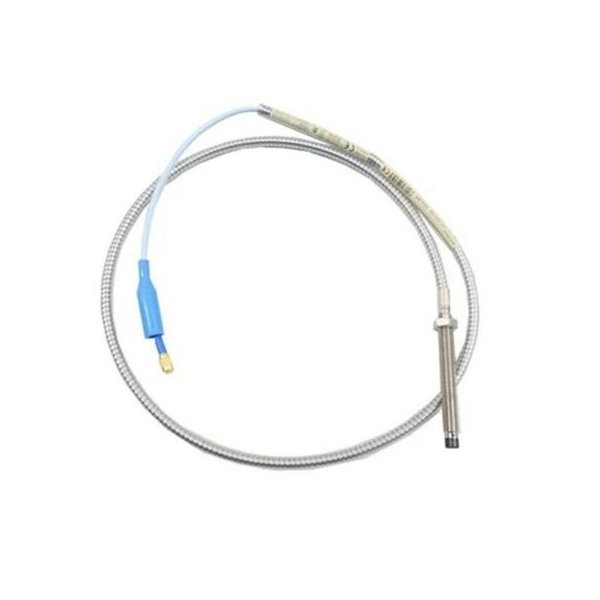

The Bently Nevada 330104-00-08-05-02-05 is part of the 3300 XL 8 mm Proximity Transducer System. This probe is engineered for precise non-contact vibration and position measurements, optimized for rotating machinery using fluid-film bearings. It includes enhanced armor protection, ClickLoc connectors, and a 0.5-meter cable for robust and accurate data transmission.
Radial and axial shaft vibration monitoring
Thrust position measurements
Keyphasor® speed and phase reference signals
Overspeed detection (with precautions)
Turbine and compressor monitoring
Fully complies with API 670 standards
Interchangeable with legacy 3300 systems (5 mm & 8 mm)
ClickLoc connectors ensure secure and tool-free connection
Armor protected for harsh industrial environments
Resistant to EMI/RFI, suitable for high-density installations
No need for field calibration when using matched system components
| Parameter | Specification |
|---|---|
| Model | 330104-00-08-05-02-05 |
| System Type | 3300 XL 8 mm Proximity Probe |
| Probe Thread | M10 x 1 |
| Total Length | 0.5 meter |
| Weight | 0.162 kg |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Case Material | Stainless Steel (AISI 303/304) |
| Cable Type | Armored, Standard FEP Insulated Triaxial Cable |
| Output Sensitivity | 200 mV/mil ±5% (7.87 V/mm) |
| Linear Range | 0.25 mm to 2.3 mm (10 to 90 mils) |
| Frequency Response | 0–10 kHz |
| Operating Temperature | –52°C to +177°C |
| Pressure Sealing | Viton® O-ring pressure sealed |
| Connector Type | Miniature coaxial ClickLoc with protector |
| Recommended Gap Setting | 1.27 mm (50 mils), –9 VDC |
| Minimum Shaft Diameter | 50.8 mm |
| Cable Bend Radius | Min. 25.4 mm |
Q1: Is this probe compliant with API 670?
A1: Yes, it fully complies with API 670 mechanical and performance requirements.
Q2: Can it be used with older non-XL 3300 systems?
A2: Yes, it is backward compatible with 3300 5 mm and 8 mm system components.
Q3: What environments is this probe suitable for?
A3: Harsh environments including high EMI/RFI and temperature ranges up to 177°C.
Q4: Does the probe require calibration?
A4: No calibration is needed if used with matching 3300 XL components.
Q5: Is the cable oil resistant?
A5: Yes, with the FluidLoc option, it can prevent fluid leakage along the cable.
Q6: What is the minimum shaft size recommended?
A6: Minimum 50.8 mm diameter; 76.2 mm is preferred for optimal accuracy.
Q7: What is the benefit of the ClickLoc connector?
A7: Ensures secure, tool-free, finger-tight connections with a built-in click lock.
Q8: Can this probe handle pressure differentials?
A8: Yes, it has a Viton® O-ring designed to seal pressure between the tip and case.
Q9: How is the connector protected from the environment?
A9: Includes a connector protector and optional silicone sealing tape.
Q10: Can it be mounted on a DIN rail?
A10: The Proximitor sensor (not the probe itself) supports DIN rail and panel mounting.
