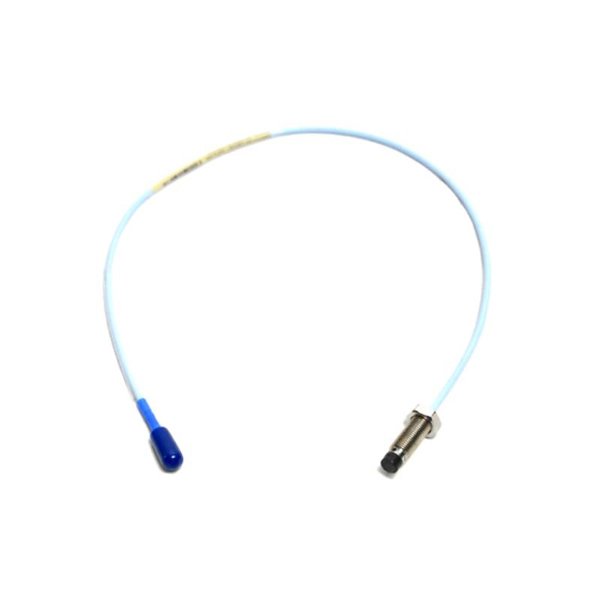

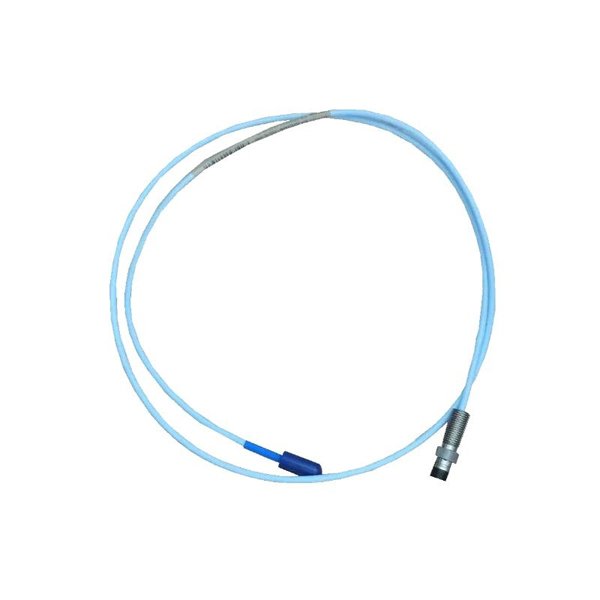

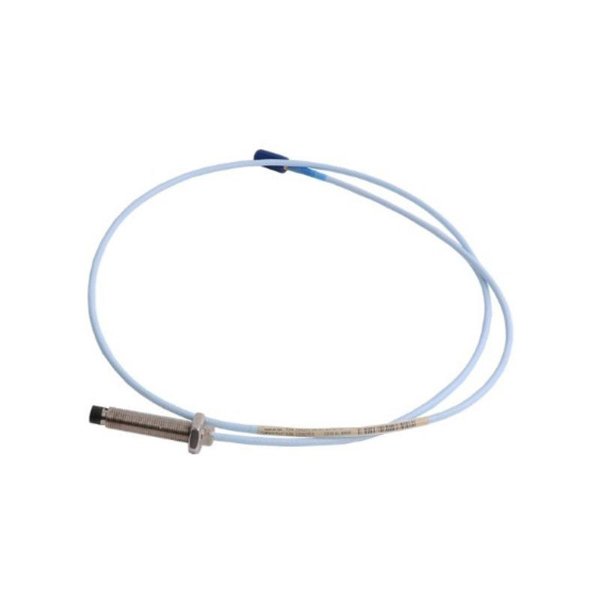

The Bently Nevada 330103-15-23-05-02-CN 3300 XL 8mm Proximity Probe is a high-precision sensor designed to measure the vibration and displacement of rotating machinery shafts. As part of the trusted 3300 XL series, this probe offers reliable, repeatable measurements essential for machinery condition monitoring and predictive maintenance. The probe’s 8mm tip length makes it suitable for a broad range of industrial applications, offering accurate proximity detection to help prevent costly equipment failures.

Manufactured with durable materials and engineered to withstand harsh industrial conditions, the 330103-15-23-05-02-CN ensures consistent performance in environments ranging from high temperatures to high vibration. This model also features a robust connector and cable system designed for secure installation and long service life.

Product Specifications

Applications

The 330103-15-23-05-02-CN probe is widely used in industries that rely heavily on the reliable operation of rotating equipment, including:

• Power Generation: Continuous shaft vibration monitoring of turbines, generators, and motors to ensure safe and efficient operation.

• Oil & Gas: Monitoring pumps, compressors, and drilling rigs to detect early mechanical faults and avoid costly downtime.

• Aerospace: Precision monitoring of engines and other rotating machinery for safety and performance.

• Manufacturing: Used on high-speed spindles, gearboxes, and conveyor systems to detect imbalances or misalignments.

• Mining and Metals: Monitoring crushers, mills, and conveyors operating under extreme conditions.

• Chemical Processing: Ensuring the reliability of pumps and agitators critical to continuous processing operations.

Advantages

• High Accuracy: The probe’s eddy current technology provides precise, reliable displacement and vibration measurements.

• Robust and Durable: Stainless steel housing resists corrosion and physical damage, ensuring longevity in tough industrial environments.

• Wide Temperature Range: Operates effectively in temperatures from -40°C to 120°C, covering most industrial settings.

• Compatible with 3300 XL Systems: Seamless integration with the Bently Nevada 3300 XL monitoring system for consistent performance.

• Easy Installation: Compact size and a standard connector simplify installation and replacement.

• Stable Signal Output: Generates a clear and reliable AC voltage signal, minimizing data errors.

• Shock and Vibration Tolerant: Designed to endure high mechanical stress and maintain accurate measurements.

• Custom Cable Lengths: Options for extended cable lengths allow flexible installations tailored to machinery layout.

Frequently Asked Questions (FAQ)

1. What is the primary function of the 330103-15-23-05-02-CN probe?

   It measures the displacement and vibration of rotating machinery shafts to detect early signs of wear or failure.

2. Is this probe compatible with other 3300 XL series components?

   Yes, it is fully compatible and can be integrated with other 3300 XL system modules.

3. What kind of signal does this probe provide?

   The probe outputs an AC voltage signal proportional to shaft displacement.

4. Can the total length be customized?

   Yes, standard total length is 0.5 meter, but custom lengths can be requested.

5. What environmental conditions can this probe tolerate?

   It operates in a wide temperature range from -40°C to 120°C and is resistant to shock and vibration.

6. Does the probe require external power?

   No, it generates a signal through eddy current principles and does not need an external power supply.

7. How often should this probe be serviced or calibrated?

   Typically, annual inspections and calibration during scheduled maintenance cycles are recommended.

8. How does the probe detect shaft misalignment?

   By monitoring displacement and vibration changes, it helps identify shaft movement anomalies indicative of misalignment.

9. What happens if the cable is damaged?

   Damaged cables can cause signal loss or distortion, so replacement is necessary to ensure measurement accuracy.

10. Is the probe suitable for high-speed rotating machinery?

    Yes, it is designed to function accurately on high-speed shafts typical in many industrial applications.
