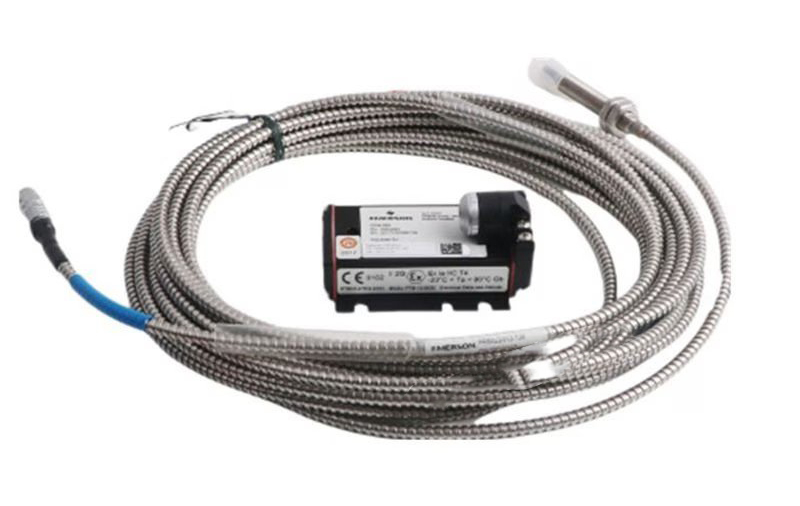

Epro CON021+PR6424/000-110 Eddy Current Sensor System

The EPRO CON021 + PR6424/000-110 is a non-contact eddy current sensor system. Engineers use it for high-precision monitoring of shaft displacement, vibration, and position. It performs reliably in critical rotating machinery such as turbines, compressors, and large motors. This system plays a key role in condition monitoring and protection applications across power generation and heavy industries.

PR6424/000-110 Sensor Specifications

• Type: Eddy current proximity probe
• Measuring Range: ±2.0 mm
• Linearity Error: ≤ 0.25%
• Frequency Range: 0–10 Hz
• Operating Temperature: –20°C to +65°C
• Storage Temperature: –30°C to +90°C
• Material: Stainless steel sleeve and PTFE cable
• Explosion Protection: EEx ib IIC T6/T4 for hazardous areas
• Dimensions: 4.1 × 15.9 × 10.8 cm
• Weight: 0.3 kg

CON021 Converter Specifications

• Function: Signal converter for eddy current sensors
• Output Voltage Range:

  – –4V to –20V (with –23V to –32V supply)

  – –2V to –18V (with –21V to –32V supply)

• Frequency Response: 0–20,000 Hz
• Rise Time: Less than 15 μs
• Operating Temperature: –30°C to +100°C
• Housing Material: LMgSi 0.5 F22 alloy
• Mounting: Panel-mounted using M5 screws
• Connections:

  – Sensor: Self-locking LEMO plug

  – Output/Power: Screw terminals
