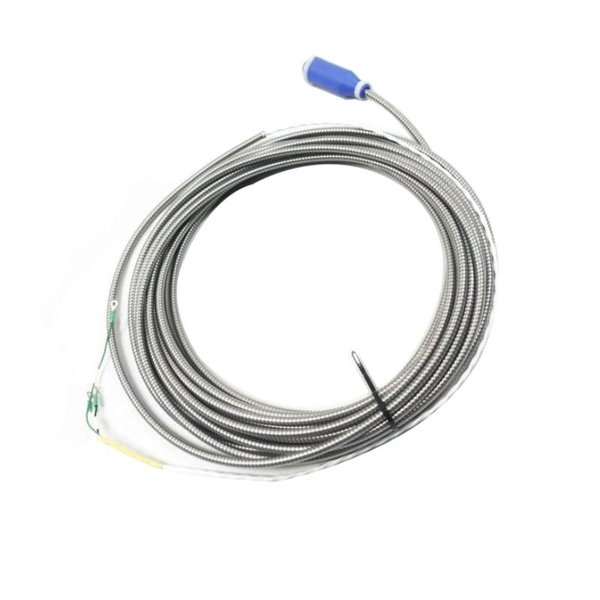

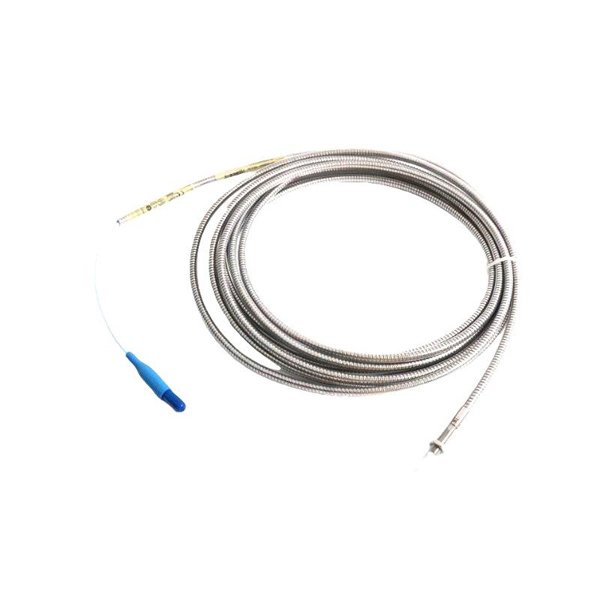

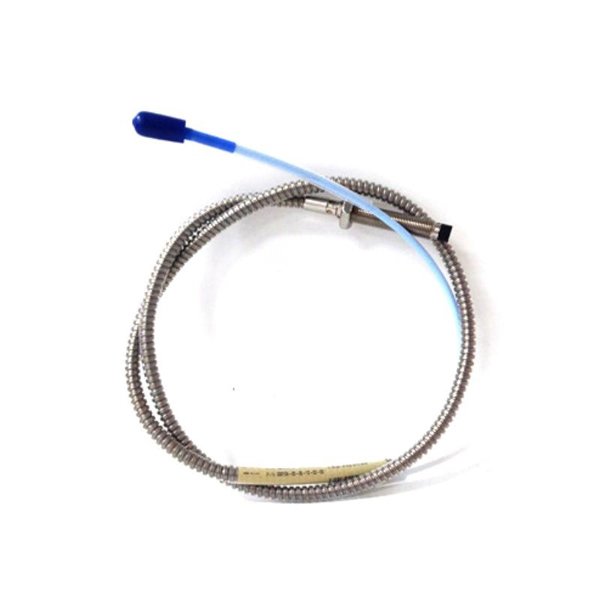

Bently Nevada 330104-08-14-10-02-05 3300 XL 8 mm Proximity Probe
Manufacturer:Bently Nevada
Product Number:330104-08-14-10-02-05
Product Type:3300 XL 8 mm Proximity Probe
Origin:USA
Total Length:1.0 meter
Weight:0.323 kg
Views:34
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330104-08-14-10-02-05 is a high-performance 8 mm proximity probe used in the 3300 XL series. It forms part of a non-contact transducer system designed to measure shaft position and vibration in rotating machinery. It is engineered for robust operation in industrial conditions with a flexible armored cable, M10 thread, and 1.0 meter total probe length.
Applications
-
Radial vibration and axial position measurements on fluid-film bearing machines
-
Overspeed protection and Keyphasor reference
-
Shaft displacement and rotating machinery condition monitoring
Advantages
-
API 670 compliant performance
-
Interchangeable probes, extension cables, and sensors
-
Excellent RFI/EMI immunity
-
Corrosion-resistant ClickLoc gold connectors
-
Withstands temperatures up to 177°C (standard), 218°C (ETR option)
-
FluidLoc cable option prevents oil leakage
-
No field calibration required
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Type | 3300 XL 8 mm, M10 x 1 thread, with armor |
| Total Length | 1.0 meter |
| Weight | Approx. 0.323 kg |
| Case Material | AISI 303 or 304 stainless steel |
| Tip Material | PPS (Polyphenylene sulfide) |
| Output Sensitivity | 7.87 V/mm (200 mV/mil) ±5% |
| Linear Range | 2.0 mm (80 mils) |
| Gap Voltage (Recommended) | -9 VDC (approx. 1.27 mm or 50 mils) |
| Operating Temp (Standard Probe) | -52°C to +177°C |
| Operating Temp (ETR Probe) | -52°C to +218°C (tip), -51°C to +260°C (cable) |
| Minimum Target Size | 15.2 mm (0.6 in) diameter |
| Minimum Shaft Diameter | 50.8 mm (2 in) |
| Cable Type | Armored FEP insulated coaxial, 75 Ω |
| Connector | ClickLoc Miniature Coaxial, gold-plated |
| Installation Torque (M10) | Max: 22.6 N·m, Recommended: 7.5 N·m |
FAQs
Q1: What type of thread does the 330104-08-14-10-02-05 probe use?
A1: It uses M10 x 1 metric thread with armored cable.
Q2: Can this probe be used in high-temperature environments?
A2: Yes, standard probes support up to 177°C, and ETR versions up to 218°C (tip) or 260°C (cable).
Q3: Is this probe compatible with older 3300 systems?
A3: Yes, it’s fully interchangeable with non-XL 3300 8 mm components.
Q4: Does the probe require field calibration?
A4: No, it comes factory-calibrated and supports full component interchangeability.
Q5: What are the primary applications for this probe?
A5: Used in turbines, compressors, and motors for position and vibration monitoring.
Q6: What is the recommended probe-to-target gap setting?
A6: Approximately 1.27 mm (50 mils) resulting in -9 VDC output.
Q7: How is the cable protected from environmental damage?
A7: It features armored construction and optional connector protectors.
Q8: Can this be used for overspeed protection?
A8: Yes.
Q9: What’s the output voltage characteristic?
A9: Voltage is proportional to the distance from the probe tip to the target surface.
Q10: Does it comply with industrial standards?
A10: Yes, it meets API 670 requirements and has CE, FCC, RoHS, and SIL certifications.
