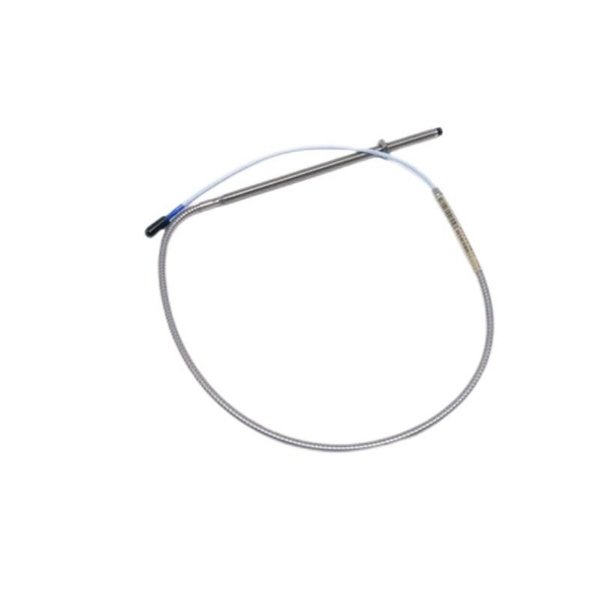

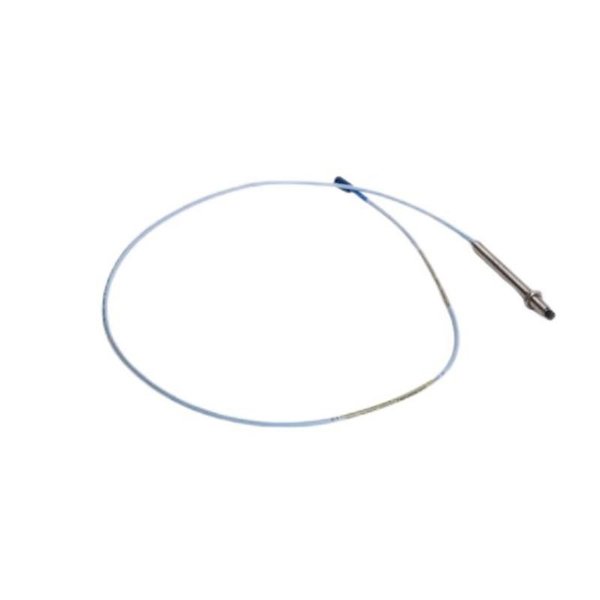

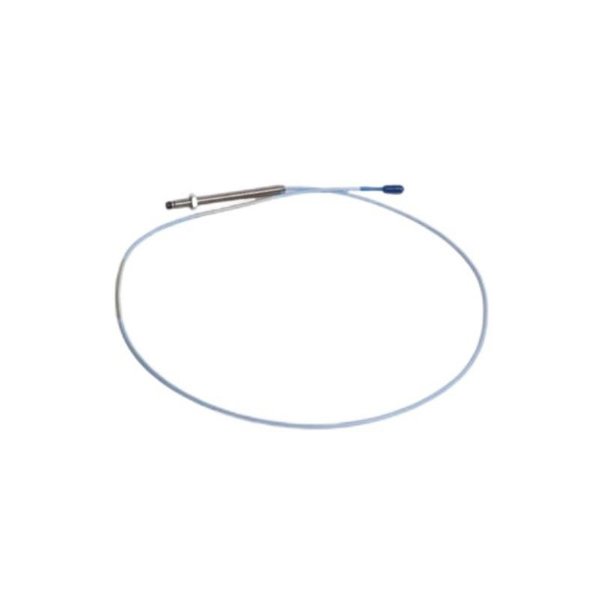

Bently Nevada 330103-00-05-10-12-00 3300 XL 8 mm Proximity Probe

The Bently Nevada 330103-00-05-10-12-00 3300 XL 8 mm Proximity Probe is a critical component of the 3300 XL series by Bently Nevada, renowned for its reliability in machinery condition monitoring and protection. Designed for demanding industrial environments, this proximity probe offers superior accuracy in measuring shaft displacement, vibration, and position within rotating machinery. The 3300 XL series is engineered to operate seamlessly with the 3300 XL extension cables and proximitor sensors, creating a robust non-contact monitoring system.

This specific model, identified by its part number 330103-00-05-10-12-00, features a probe tip diameter of 8 mm and includes a 5-meter integral cable length with a connector boot angle of 90 degrees. The design ensures long-term performance stability and resistance to oil, dirt, and other contaminants common in industrial settings.

Key Features

• 8 mm tip diameter for precision displacement measurements

• Designed for compatibility with 3300 XL extension cables and proximitor sensors

• 5-meter integral cable with 90-degree connector boot

• Enhanced environmental protection and mechanical stability

• Reliable performance in high-temperature and high-vibration environments

• Non-contact measurement design eliminates mechanical wear

• Backward compatibility with older Bently Nevada systems

• Compliant with API 670 standards for machine protection

Technical Specifications

Industry Applications

The 330103-00-05-10-12-00 proximity probe is widely used in a variety of industrial applications where precise machinery monitoring is critical:

• Power Generation Plants (steam, gas, hydro turbines)

• Petrochemical and Refinery Equipment (compressors, pumps, gearboxes)

• Oil and Gas Extraction Facilities

• Paper and Pulp Manufacturing Equipment

• Water Treatment Plants

• Steel and Metal Processing Mills

• Aerospace Ground Testing Equipment

• Marine Propulsion Systems

Product Advantages

• Superior Signal Integrity: Optimized for minimal noise and signal degradation even over long cable lengths.

• Environmental Durability: IP68 rating provides resistance against moisture, oil, and contaminants.

• Extended Lifespan: Non-contact design and rugged construction ensure minimal wear and long service intervals.

• High Compatibility: Functions seamlessly with legacy and current Bently Nevada monitoring systems.

• Precision Measurements: Delivers accurate and repeatable displacement and vibration data essential for predictive maintenance.

• Ease of Installation: Flexible boot and various thread mounting options support a wide range of installation configurations.

• Temperature Resistant: High operating and storage temperature tolerance allows use in harsh environments.

• Standards Compliant: Meets API 670 and CE compliance requirements for critical equipment monitoring.

• Flexible Configuration: Various cable lengths and connector orientations available to suit application needs.

• Field-Proven Design: Trusted by industries worldwide for reliable rotating equipment protection.

Frequently Asked Questions (FAQ)

1. What is the function of the 330103-00-05-10-12-00 probe?

   It measures the distance between the probe tip and a rotating shaft, providing real-time data for vibration and displacement monitoring.

2. Is this probe compatible with older Bently Nevada proximitor modules?

   Yes, it is backward compatible with most previous generations of Bently Nevada proximitor sensors.

3. What makes the 8 mm probe superior to smaller variants?

   The larger diameter allows for increased mechanical robustness and better performance in dirty or oily environments.

4. Can this probe be used in outdoor applications?

   Yes, its IP68 rating ensures it is suitable for use in wet and dusty outdoor environments.

5. What is the significance of the 90° connector boot?

   It helps reduce stress on the cable during tight or angled installations, improving cable longevity.

6. How does this model differ from the 330103-00-05-10-01?

   The key difference lies in the connector orientation and cable boot design. Model -12-00 features a 90° boot for enhanced flexibility.

7. What is the lifespan of the probe under normal conditions?

   When installed and maintained properly, these probes can last 5–10 years or more depending on the application.

8. Does the probe require calibration?

   The system is factory calibrated. However, verification during routine maintenance is recommended.

9. Is this probe suitable for high-temperature applications?

   Yes, with an operating range up to 177°C, it is ideal for most industrial machinery environments.

10. What is the best practice for mounting this probe?

    Ensure proper thread engagement and avoid over-torqueing. Position the probe tip perpendicular to the shaft surface for optimal readings.
