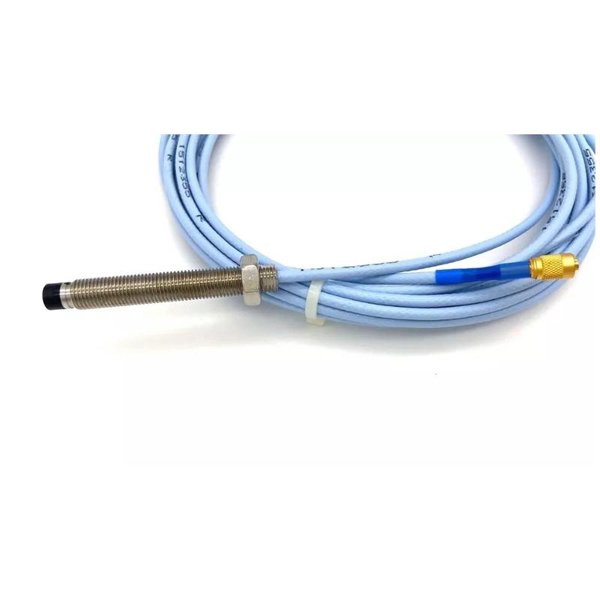

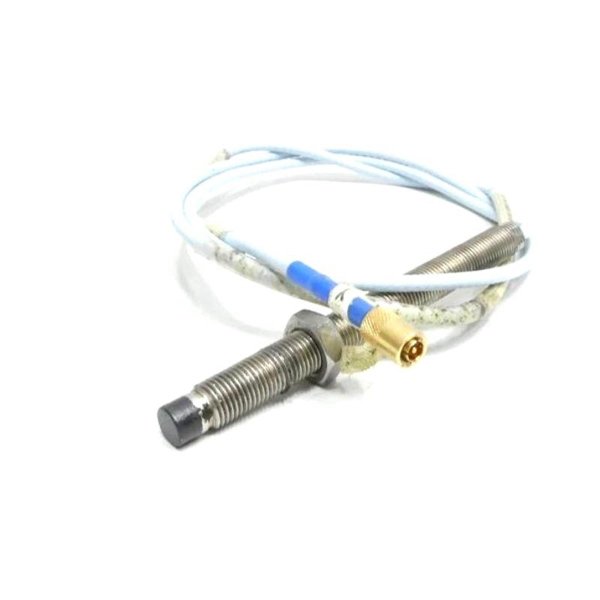

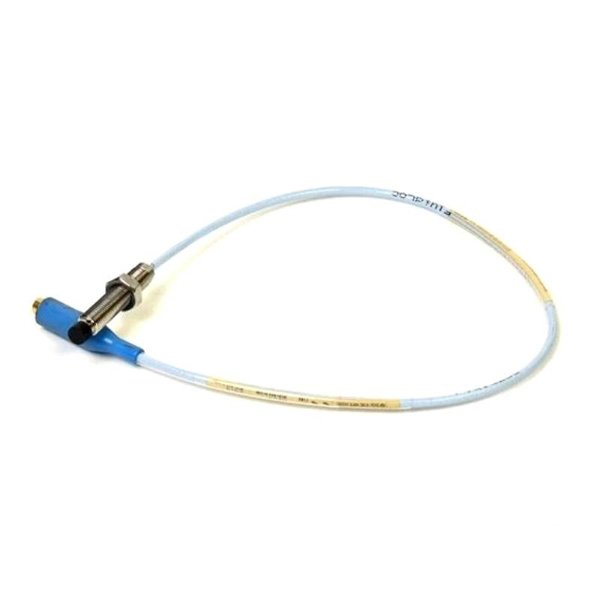

Bently Nevada 330101-00-49-90-02-05 3300 XL 8 mm Proximity Probe
Manufacturer:Bently Nevada
Product Number:330101-00-49-90-02-05
Product Type:3300 XL 8 mm Proximity Probe
Origin:USA
Total Length:1.0 meter
Weight:0.323 kg
Views:27
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330101-00-49-90-02-05 is part of the 3300 XL 8 mm Proximity Transducer System, used for high-accuracy measurement of shaft vibration, position, and Keyphasor signals in rotating machinery. This model includes a 1-meter probe, designed for use without an extension cable, and delivers robust performance in demanding environments.
Features and Benefits
API 670 Compliant – Meets industry standards for vibration monitoring.
Robust Construction – Patented TipLoc and CableLoc ensure strong mechanical integrity.
ClickLoc Connectors – Secure, tool-free connection with environmental protection.
No Bench Calibration Required – Full interchangeability of probe, cable, and Proximitor sensor.
High EMI/RFI Immunity – Suitable for installation in fiberglass enclosures.
Applications
-
Vibration and position monitoring in fluid-film bearing machinery
-
Turbine, compressor, and motor condition monitoring
-
Keyphasor and overspeed protection systems
-
Critical machine health monitoring in power plants, oil & gas, and industrial manufacturing
Technical Specifications
| Parameter | Details |
|---|---|
| Probe Type | 3300 XL 8 mm Proximity Probe |
| Thread Type | 3/8-24 UNF |
| Cable Type | Standard FEP cable |
| Connector Type | Miniature coaxial ClickLoc |
| Total Length | 1.0 meter |
| Weight | 0.323 kg (typical) |
| Tip Diameter | 8.0 mm (0.31 in) |
| Material (Probe Tip) | Polyphenylene Sulfide (PPS) |
| Material (Case) | Stainless Steel AISI 303/304 |
| Operating Temp. (Probe) | -52°C to +177°C |
| Pressure Sealing | Viton® O-ring sealed |
| Minimum Bend Radius | 25.4 mm (1.0 in) |
| Compliance | CE, FCC, RoHS, SIL 2/3, ATEX, CSA, IECEx |
| Output Sensitivity | 200 mV/mil ±5% (7.87 V/mm) |
| Frequency Response | 0 – 10 kHz |
| Linear Range | 0.25 to 2.3 mm (10 to 90 mils) |
Advantages
-
Quick installation with ClickLoc connections
-
Long-term reliability under harsh conditions
-
Full system compatibility with other 3300-series components
-
Designed for high-density DIN or panel mounting
-
No need for calibration matching during maintenance
FAQ
Q1: What is the primary function of this proximity probe?
A1: It measures shaft vibration and position in rotating machinery.
Q2: Is this probe compatible with non-XL 3300 systems?
A2: Yes, it is backward-compatible with 3300 5 mm and 8 mm components.
Q3: Does this model need an extension cable?
A3: No, this is a 1-meter version and is used without an extension cable.
Q4: What type of connection does it use?
A4: It uses a gold-plated ClickLoc connector for tool-free secure connection.
Q5: Can this probe be used in high-temperature environments?
A5: Yes, up to +177°C; higher temperatures require the ETR version.
Q6: What is the recommended gap setting?
A6: Approximately 1.27 mm (50 mils), corresponding to -9 Vdc.
Q7: Is this probe pressure-sealed?
A7: Yes, it uses a Viton O-ring for differential pressure sealing.
Q8: What is the accuracy of the system?
A8: It has a typical deviation from the best-fit line of less than ±0.025 mm (±1 mil).
Q9: What shaft size is recommended?
A9: Recommended for shaft diameters of at least 76.2 mm (3 inches).
Q10: Is this model compliant with API 670?
A10: Yes, it fully meets API 670 mechanical and performance standards.
