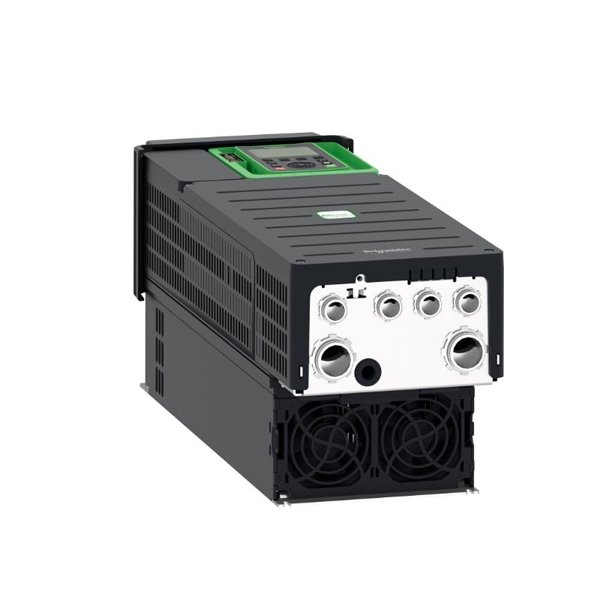

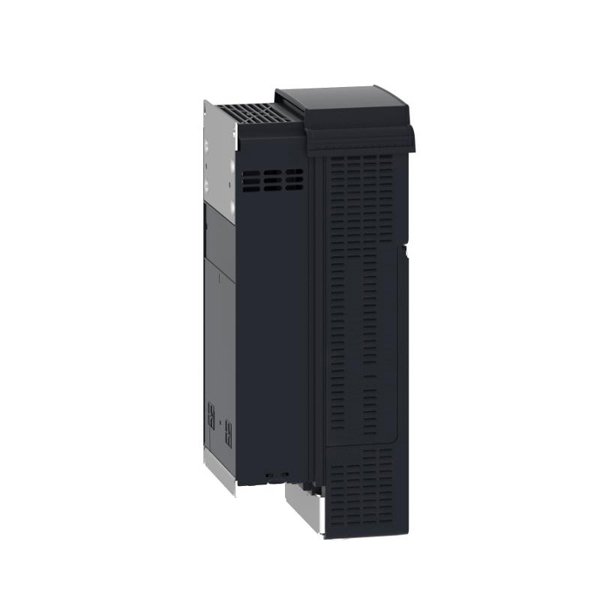

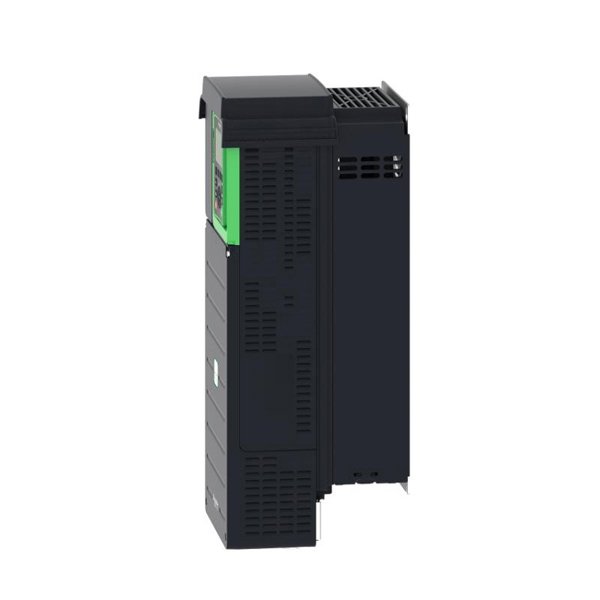

Schneider ATV930D15N4 Variable Speed Drive
Manufacturer:Schneider
Product Number:ATV930D15N4
Product Type:Variable Speed Drive
Origin:France
Dimensions:211 x 545.9 x 235 mm
Weight:13.6 kg
Views:37
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Schneider Electric ATV930D15N4 is a high-performance variable speed drive (VSD) from the Altivar Process ATV900 series, engineered for complex industrial operations requiring advanced motor control, energy efficiency, and digital connectivity. Designed for heavy-duty applications, this drive is compatible with asynchronous and permanent magnet motors, providing precision, robustness, and modularity for demanding environments.
The ATV930D15N4 model delivers optimal control for motors up to 150 kW, making it ideal for applications in oil & gas, mining, HVAC systems, and material handling industries. With its embedded communication interfaces, predictive maintenance features, and user-friendly HMI, the drive not only enhances process performance but also reduces total cost of ownership.
Product Specifications
| Parameter | Description |
|---|---|
| Model Number | ATV930D15N4 |
| Series | Altivar Process ATV900 |
| Rated Motor Power | 150 kW (200 hp) |
| Voltage Range | 380 to 480 V AC, 3-phase |
| Input Frequency | 50/60 Hz |
| Output Frequency Range | 0.1 to 599 Hz |
| Overload Capacity | 150% for 60 seconds every 10 minutes |
| Motor Compatibility | Asynchronous (IM) and Synchronous (PM) Motors |
| Control Modes | V/F, Sensorless Vector, Flux Vector (with encoder) |
| Communication Protocols | Ethernet, Modbus TCP, Modbus RTU, CANopen |
| Digital Inputs | 6 configurable digital inputs |
| Analog Inputs / Outputs | 3 analog inputs / 2 analog outputs |
| Relay Outputs | 3 programmable relay outputs |
| User Interface | Graphical HMI keypad with customizable parameters |
| Integrated Functions | Energy monitoring, Predictive maintenance, Motor tuning |
| Cooling Method | Air-cooled with replaceable fan modules |
| Enclosure Rating (Standard) | IP21 |
| Certifications | CE, UL, CSA, RoHS |
| Operating Temperature | -15°C to +50°C without derating |
| Mounting Type | Wall or cabinet-mounted |
| Dimensions (H x W x D) | 211 x 545.9 x 235 mm |
| Weight | 13.6 kg |
Product Applications
The ATV930D15N4 is crafted for intensive industrial uses that require accuracy, adaptability, and reliability in motor control. Its applications span across various domains:
Pumping Systems
Enables smart regulation of fluid movement with energy-saving algorithms and overload handling.
Ventilation and Air Handling Units
Perfectly manages variable speed fans, improving building energy management systems (BEMS).
Conveyor and Transport Systems
Offers smooth start/stop operations, enhancing material flow and reducing mechanical stress.
Crushers and Mixers in Mining/Quarrying
Handles demanding torque requirements under fluctuating loads and harsh conditions.
Oil & Gas Facilities
Optimizes critical process performance with reliable motor behavior, even in remote locations.
Water & Wastewater Treatment Plants
Provides redundancy, real-time diagnostics, and connectivity with SCADA systems for 24/7 reliability.
Product Advantages
Smart Energy Management
Embedded energy dashboards, automatic motor adaptation, and eco-mode contribute to significant power savings.
Versatile Motor Control
Supports multiple motor types and configurations, offering flexibility for system designers and integrators.
Advanced Diagnostics & Predictive Maintenance
Continuous condition monitoring enables early fault detection and reduces unplanned outages.
Strong Network Integration
Supports Ethernet, CANopen, Modbus TCP/RTU, and others for seamless integration into automation systems.
User-Friendly HMI
Intuitive graphical display allows quick access to performance data and configuration tools.
Robust Build for Harsh Environments
Coated PCBs, high IP rating (with optional enclosure), and thermal resistance provide durable operation.
Modular Components for Easy Maintenance
Replaceable fans, control boards, and power terminals ensure fast repairs and upgrades.
Frequently Asked Questions (FAQ)
What motor power range does the ATV930D15N4 support?
It is rated for motors up to 150 kW (200 hp) at 400 V.
Can I use this VSD with permanent magnet motors?
Yes, the drive supports both asynchronous and synchronous (PM) motors.
Is remote monitoring possible with this drive?
Yes, it offers built-in Ethernet for remote access and diagnostics through web servers or SCADA systems.
What type of communication protocols does it support?
It includes Modbus TCP/RTU, CANopen, and Ethernet natively.
Is the drive suitable for outdoor installations?
Only with appropriate enclosures (IP54/IP55), as its standard IP rating is IP21.
How does it contribute to energy savings?
Features like automatic energy optimization, variable torque control, and energy dashboards improve efficiency.
What is the overload capacity of this drive?
It can handle 150% of rated current for 60 seconds every 10 minutes.
Can it be integrated with existing automation systems?
Yes, it supports multiple I/O configurations and networking protocols for seamless system integration.
What maintenance features does the ATV930D15N4 include?
It includes predictive maintenance alerts, fan lifespan monitoring, and diagnostic event logs.
Does the drive come with a user interface for configuration?
Yes, it includes a graphical keypad (HMI) for user-friendly configuration and real-time monitoring.
