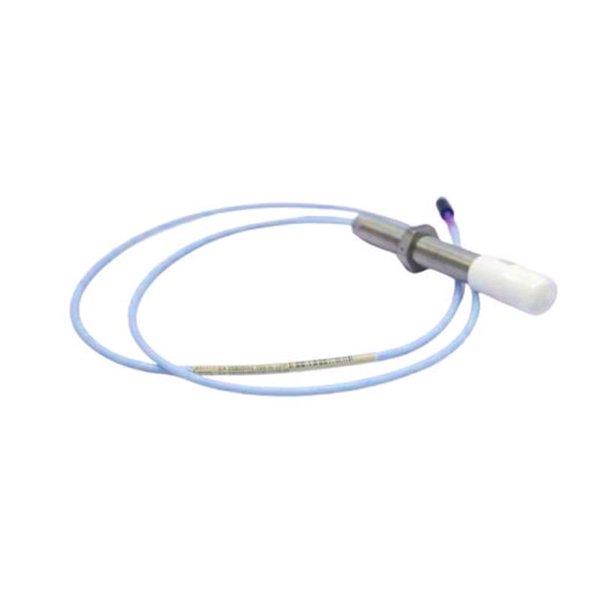

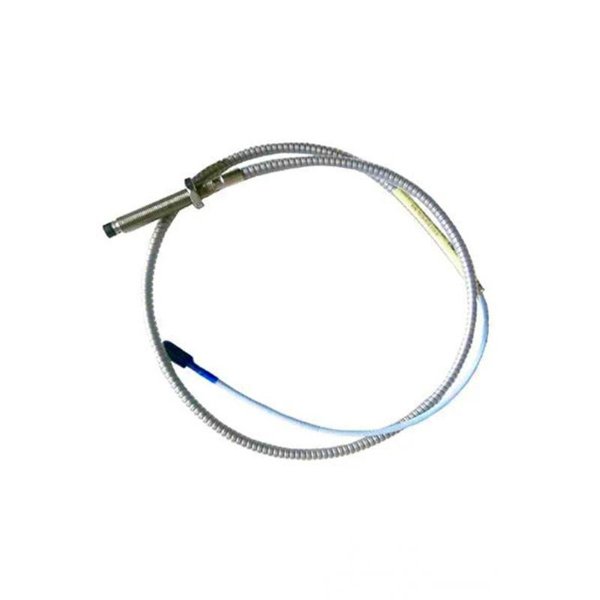

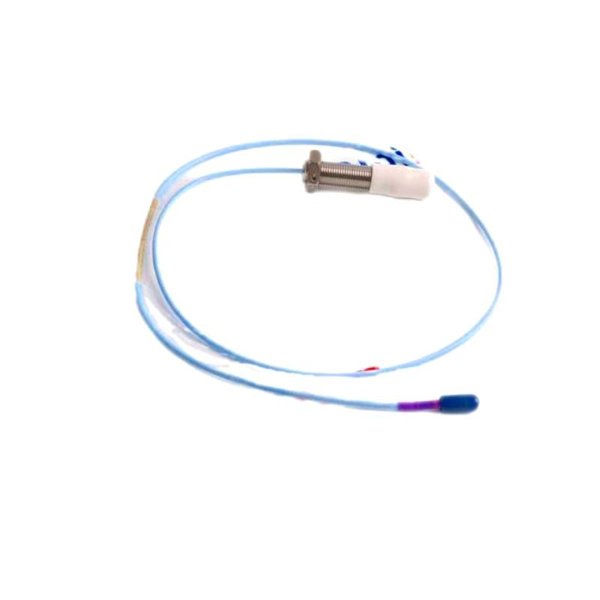

Bently Nevada 330709-000-090-10-02-00 3300 XL 11 mm Proximity Probe

The Bently Nevada 330709-000-090-10-02-00 3300 XL 11 mm Proximity Probe is a high-precision eddy-current sensor designed for critical machinery monitoring. It is part of the 3300 XL series, recognized for its durability and high performance in industrial environments. The probe measures shaft displacement and vibration in rotating equipment, providing accurate data for predictive maintenance and condition monitoring.

Technical Specifications

Product Applications

• Shaft vibration monitoring in turbines, compressors, and pumps

• Rotor displacement measurement in generators and motors

• Condition monitoring of critical machinery in oil, gas, and power plants

• Industrial machinery diagnostics for predictive maintenance

• High-speed rotating equipment in aerospace and heavy industry

Product Advantages

• High Accuracy: Precise measurement for critical machinery protection.

• Robust Design: Resistant to industrial environments, temperature fluctuations, and electromagnetic interference.

• Reliable Connection: Shielded coaxial cable ensures minimal signal noise.

• Easy Installation: Compatible with standard Bently Nevada monitoring systems.

• Versatile Application: Suitable for a wide range of rotating equipment.

• Maintenance Friendly: Reduces unplanned downtime by enabling early detection of faults.

FAQ

Q1: What is the output signal type of the probe?

A1: The probe provides a voltage-proportional output signal suitable for Bently Nevada 3300 XL monitoring systems.

Q2: Can the probe operate in high-vibration environments?

A2: Yes, the 3300 XL series probes are designed to function reliably in high-vibration machinery.

Q3: What is the typical cable length, and can it be extended?

A3: Standard cable length is 1 m; extensions are possible with proper shielded coaxial cabling to maintain signal integrity.

Q4: Is the probe compatible with 3300 XL 11 mm displacement monitoring systems?

A4: Yes, it is fully compatible with the 3300 XL 11 mm series modules.

Q5: What is the probe’s linearity specification?

A5: The linearity of the probe is ±1% of full scale over its sensing range.

Q6: Can the probe operate in temperatures below -20°C?

A6: Yes, it operates effectively from -40°C up to 120°C.

Q7: Does the probe require calibration before use?

A7: Probes are factory-calibrated, but field verification is recommended for critical applications.

Q8: How is electrical noise mitigated?

A8: The probe uses a shielded coaxial cable to reduce electrical noise and interference.

Q9: What kind of connectors are supported?

A9: Standard M12 connectors are used, but custom connectors are available on request.

Q10: Is the probe suitable for measuring high-speed rotors above 15,000 RPM?

A10: Yes, it is designed to operate accurately on high-speed rotating equipment within the specified sensing range.
