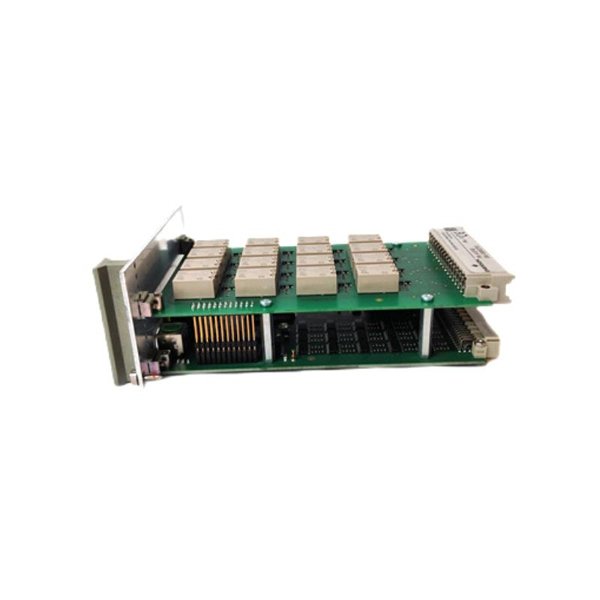

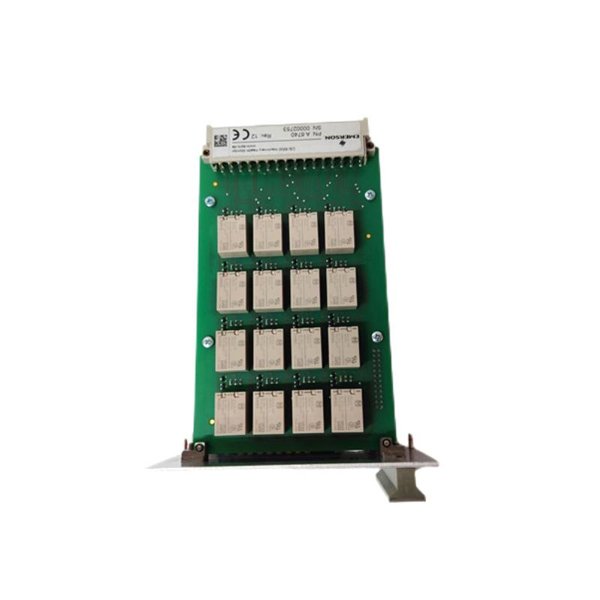

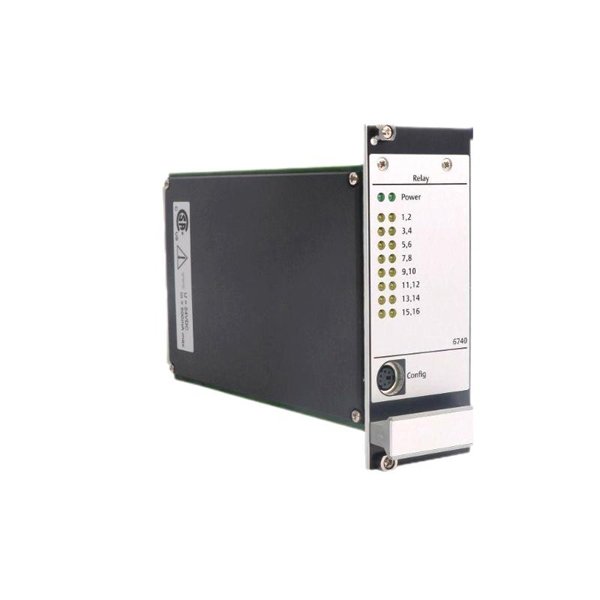

Emerson A6740 16-Channel Output Relay Module

The Emerson A6740 16-Channel Output Relay Module is designed to provide highly reliable and versatile relay output control in industrial automation systems. This module is part of Emerson’s DeltaV™ control system, offering high-density output channels that allow operators to control and monitor a wide variety of industrial processes.

This relay output module is widely used in applications where remote control, status indication, and switching of external devices such as motors, valves, and alarms are necessary. With 16 channels, it provides the flexibility to control multiple outputs in a compact module that is easy to integrate into existing automation systems.

The A6740 module is designed with robust features to ensure long-term reliability, especially in demanding industrial environments where uptime and system performance are critical. The module also benefits from easy configuration and compatibility with the DeltaV™ systems to streamline deployment and improve operational efficiency.

Product Specifications

Applications

The A6740 16-Channel Output Relay Module is versatile and can be used in various industrial applications:

• Process Control Systems: The module can be used to switch pumps, motors, valves, and other field devices in a process control environment.
• Alarm and Indication Systems: It can control alarms or indicator lights based on certain system conditions, making it ideal for safety applications.
• Energy Management: Used for switching devices in energy metering and power distribution systems.
• Building Automation: It controls outputs like HVAC systems, lighting, and other critical systems in buildings.
• Machine Control: In factory automation, the module controls actuators and relays for machines and equipment.
• Remote Monitoring: It is used in systems that require remote control and feedback of output devices, such as remote sites or offshore installations.

Advantages

• High Density: The module provides 16 relay output channels, making it suitable for large-scale automation systems where numerous outputs need to be controlled.
• Durability and Reliability: The A6740 module is designed to withstand the harsh industrial environment with extended temperature ranges and robust construction.
• Compact Size: The module is compact and can be easily installed in DIN Rail mountable enclosures, saving valuable space in control panels.
• Flexible Control: With SPDT relay contacts, the module can control a variety of devices, ranging from low-power equipment to heavy machinery.
• Rapid Switching: The < 10 ms switching time allows fast responses to control signals, ensuring efficient system operation.
• Easy Integration: It is fully compatible with Emerson’s DeltaV™ control system, enabling fast integration and straightforward system configuration.
• Wide Voltage Compatibility: The module supports an input voltage range from 18 V to 32 V DC, making it adaptable to various industrial power systems.
