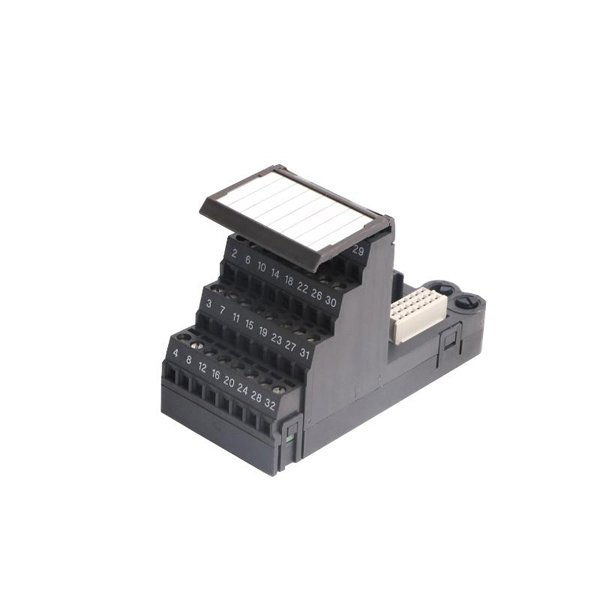

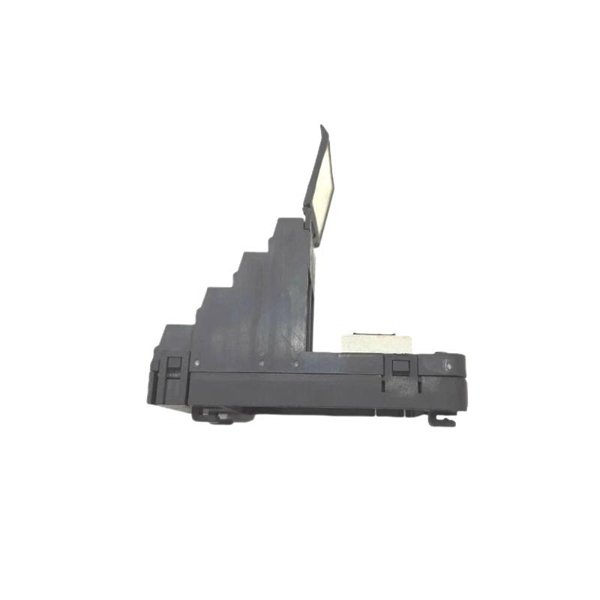

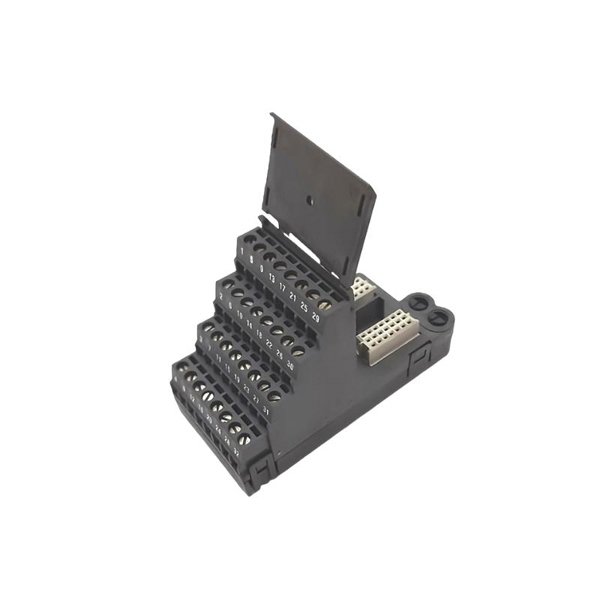

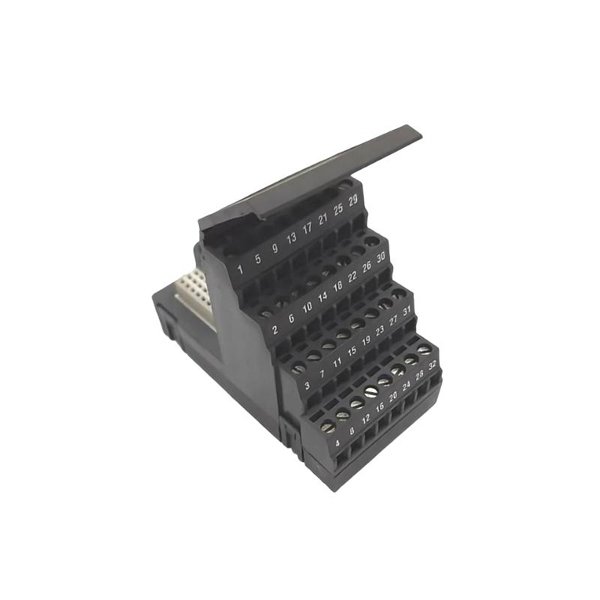

Emerson KJ4001X1-CJ1 32-Channel Terminal Block

The Emerson KJ4001X1-CJ1 is a 32-Channel Terminal Block specifically designed for the DeltaV™ control system, part of the Emerson Ovation and DeltaV hardware platform. Engineered for high-density signal wiring and modular connectivity, this terminal block provides a reliable interface for connecting field wiring to the I/O modules.

This model features 32 individually labeled terminals and is typically used in conjunction with 32-channel discrete I/O cards, ensuring efficient signal transmission with minimal wiring complexity. The KJ4001X1-CJ1 allows easy installation, maintenance, and replacement, supporting fast commissioning in complex industrial control systems.

With its robust build, clear channel identification, and compatibility with DeltaV I/O cards, this terminal block enhances plant reliability, reduces downtime, and supports the scalable architecture of modern automation systems.

Technical Specifications

Product Applications

The Emerson KJ4001X1-CJ1 terminal block is widely utilized across a variety of process and factory automation environments, particularly in industries where dense signal concentration and high reliability are required:

• Oil & Gas: Integration of discrete sensors and actuators in upstream and downstream processes.

• Power Generation: Control system interconnection for turbine and boiler management.

• Chemical and Petrochemical Plants: Reliable interface between field instruments and DCS I/O modules.

• Pharmaceutical Manufacturing: GMP-compliant signal connectivity for clean room equipment.

• Pulp & Paper: High-density I/O wiring for continuous process control.

• Water Treatment Facilities: Compact and efficient wiring of level switches, valves, and pumps.

Product Advantages

• High-Density Channel Support: 32 channels in a compact format help reduce panel size and wiring complexity.

• DeltaV System Integration: Designed for seamless operation with Emerson DeltaV discrete I/O cards.

• Robust and Durable Construction: Built to withstand industrial temperature ranges, vibration, and shock.

• Time-Saving Installation: Pre-labeled terminals and standard wire sizing simplify field wiring and maintenance.

• Improved System Reliability: Secure screw terminals and strong insulation reduce wiring failures.

• DIN Rail/Panel Mount Flexibility: Supports diverse installation environments and cabinet configurations.

• Ease of Maintenance: Clear labeling and modularity allow fast troubleshooting and terminal replacement.

• Environmental Resilience: Operates reliably in a wide range of humidity and temperature conditions.

Frequently Asked Questions (FAQ)

1. What is the primary function of the KJ4001X1-CJ1 terminal block?

   It connects field wires to DeltaV 32-channel discrete I/O modules in a structured, secure way.

2. Is this terminal block compatible with all Emerson I/O modules?

   It is specifically designed for 32-channel discrete I/O modules within the DeltaV system.

3. Can the terminal block be mounted on a DIN rail?

   Yes, it supports both DIN rail and panel mounting options.

4. What kind of wiring does it support?

   It supports 16 to 24 AWG wire sizes, common in industrial signal wiring.

5. How are the terminals labeled?

   Each of the 32 terminals is pre-labeled for easy identification and wiring accuracy.

6. Is there electrical isolation between channels?

   Electrical isolation is managed at the I/O module level, not within the terminal block.

7. Does the KJ4001X1-CJ1 come with surge protection?

   No built-in surge protection; external protection may be necessary depending on application.

8. Can this be used in hazardous environments?

   With proper enclosure and certification (e.g., ATEX), it can be deployed in hazardous areas.

9. Is it difficult to replace in the field?

   No, its modular design and labeled channels make replacement straightforward during maintenance.

10. Does it support analog signal wiring?

    It is optimized for discrete signals. For analog wiring, other specialized terminal blocks are recommended.
