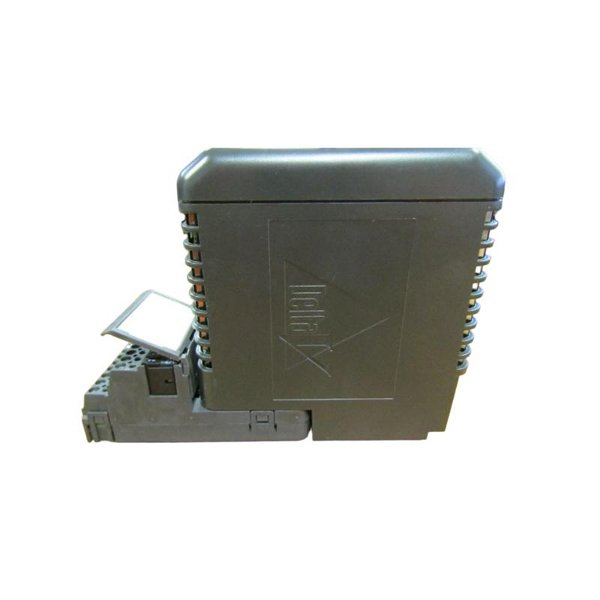

Emerson SE4003S2B4 AI Card with 24-Pin High-Capacity I/O Terminal Block

The Emerson SE4003S2B4 AI Card with 24-Pin High-Capacity I/O Terminal Block is a high-performance analog input card designed to facilitate precise signal acquisition and reliable processing of analog data. This card is engineered for complex industrial systems requiring high-density I/O connectivity, offering 4 analog input channels with the flexibility of a 24-pin terminal block for easy and secure wiring connections.

Designed for use in diverse industries, the SE4003S2B4 AI Card ensures accurate signal conversion from real-world analog sensors into digital values that control and monitor critical equipment. Its versatility and reliable performance make it an essential component in automation systems for power generation, chemical processing, manufacturing, and various other applications where precision is crucial.

The card supports multiple analog signal types, including voltage and current inputs, and is designed to integrate seamlessly with Emerson’s industrial control systems. Its compact yet robust design ensures it delivers high performance in environments with significant electrical noise and other industrial challenges.

Product Parameters

Product Applications

The Emerson SE4003S2B4 AI Card is designed for use in industrial automation systems where high-precision analog signal processing is needed. It is suitable for a variety of applications, including:

• Industrial Process Control: The card is ideal for monitoring key process variables like temperature, pressure, and flow, converting analog signals into digital values for control systems.

• Chemical & Pharmaceutical Industry: It ensures accurate measurement and control in chemical processes, such as monitoring pH levels, temperature, and other critical parameters.

• Energy & Power Generation: In power plants and electrical substations, the card is used for controlling turbines, generators, and other equipment by processing signals from various sensors.

• Manufacturing Automation: The card enables real-time monitoring of variables like pressure, level, and flow in manufacturing processes, ensuring optimal system performance.

• HVAC Systems: It is also used in large-scale HVAC systems to monitor and control air temperature, humidity, and airflow, ensuring the desired environmental conditions.

• Environmental Monitoring: The card can be used to monitor environmental parameters such as air quality, water quality, and other factors that require high precision.

Advantages of the Product

The Emerson SE4003S2B4 AI Card offers several key advantages:

• High Precision: With a 16-bit resolution, the card provides highly accurate conversion of analog signals to digital values, ensuring precise control of industrial processes.

• Wide Input Range: It supports both ±10V DC and 4-20 mA input ranges, allowing it to interface with a variety of analog sensors and devices.

• High Channel Density: The card supports 4 input channels, offering a high channel density for handling multiple analog signals in a compact space.

• 24-Pin High-Capacity I/O Terminal Block: The card features a 24-pin terminal block, which provides easy and secure connections, supporting high-capacity wiring for industrial applications.

• Seamless Integration: It is fully compatible with Emerson’s automation systems, allowing easy integration into existing control panels and systems without requiring major modifications.

• Compact Design: Despite its high capacity, the card features a compact design (102 x 114 x 46 mm) that fits easily into control panels and reduces space requirements.

• Rugged and Reliable: Built to withstand industrial environments, the card operates effectively in a temperature range of -20°C to 60°C, ensuring reliability even in harsh conditions.

• Galvanic Isolation: The card provides galvanic isolation between input signals and the control system, protecting sensitive equipment from electrical interference and improving system stability.

FAQ

1. What types of analog signals can the SE4003S2B4 handle?

   • The SE4003S2B4 AI Card can process both ±10V DC and 4-20 mA analog signals, making it suitable for a variety of sensors and devices.

2. How many input channels are available on the SE4003S2B4?

   • The card provides 4 input channels, enabling the simultaneous processing of multiple analog signals.

3. What is the resolution of the SE4003S2B4 AI Card?

   • The card features 16-bit resolution, offering high precision in converting analog signals to digital data.

4. What is the purpose of the 24-pin high-capacity I/O terminal block?

   • The 24-pin terminal block allows for secure and organized wiring, enabling easy connections for high-density I/O applications.

5. How is the SE4003S2B4 mounted in control panels?

   • The card is mounted on a DIN rail, which is a common and convenient mounting system for industrial control components.

6. Can the SE4003S2B4 be used for high-speed analog signal processing?

   • Yes, the card is designed for precise analog signal processing, making it ideal for applications that require accurate measurement and fast response times.

7. What is the operating temperature range of the SE4003S2B4 AI Card?

   • The card operates within a temperature range of -20°C to 60°C, making it suitable for a wide range of industrial environments.

8. Does the SE4003S2B4 provide galvanic isolation?

   • Yes, the card provides galvanic isolation between the input channels and the control system, helping to protect the system from electrical noise and surges.

9. How does the SE4003S2B4 improve system integration?

   • The card’s compatibility with Emerson’s broader automation systems makes it easy to integrate into existing setups without requiring extensive modifications.

10. What kind of devices can the SE4003S2B4 control?

    • The card is used to interface with a variety of sensors and devices, including temperature, pressure, and flow sensors, making it suitable for industrial and process control systems.
