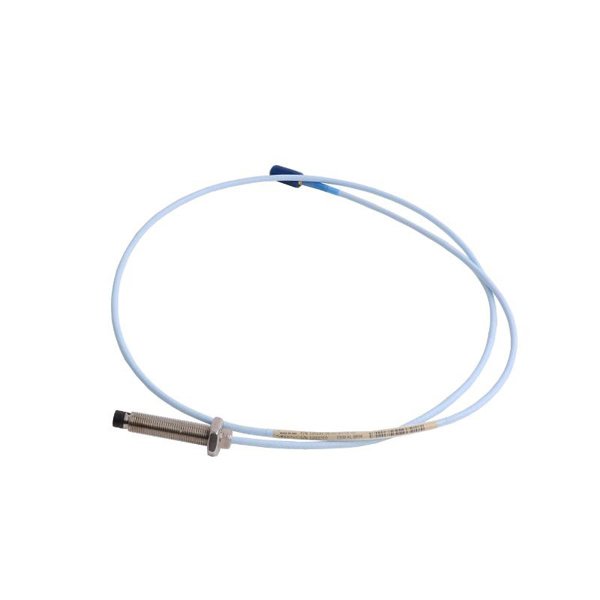

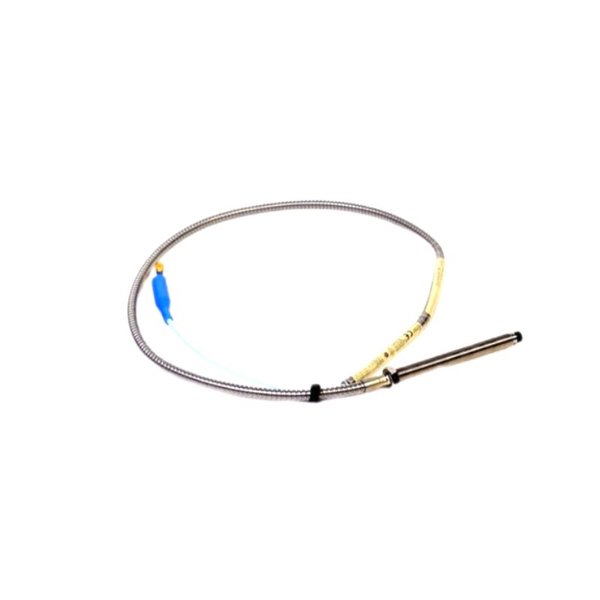

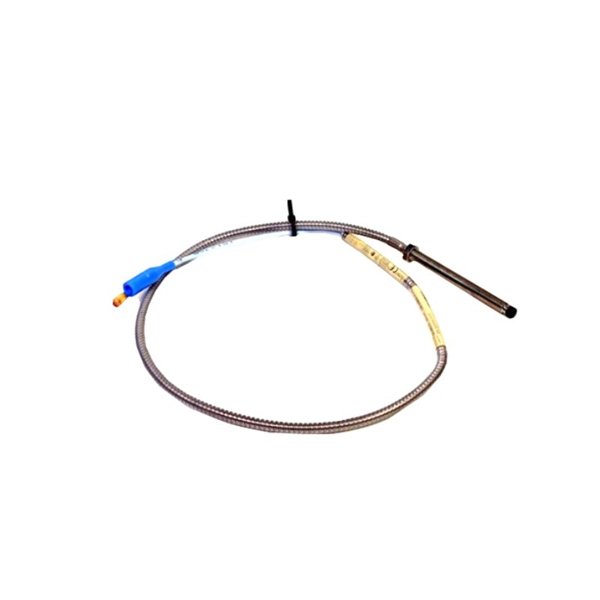

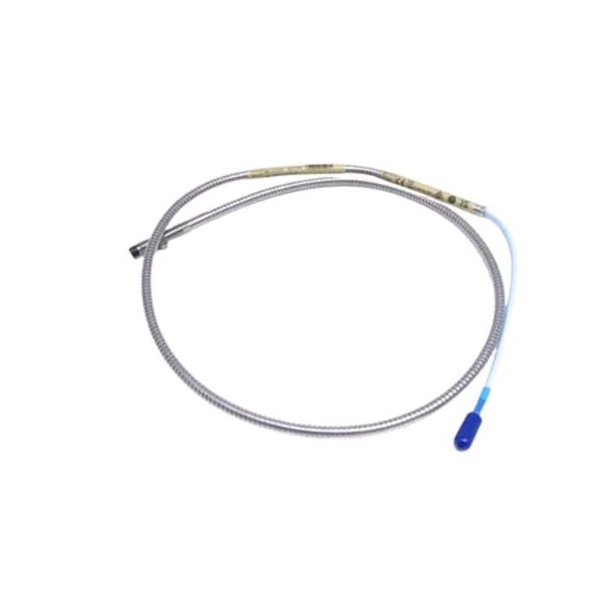

Bently Nevada 330102-00-48-05-02-05 3300 XL 8 mm Proximity Probe

The Bently Nevada 330102-00-48-05-02-05 3300 XL 8 mm Proximity Probe is part of the 3300 XL series, designed for precise and reliable vibration and displacement measurements in rotating machinery. This probe works in combination with a matching extension cable and Proximitor sensor to form a complete proximity transducer system. Its primary function is to detect shaft position, rotor dynamics, and vibration signals in turbines, compressors, pumps, and other high-value rotating equipment.

The probe is manufactured with robust construction and enhanced shielding, ensuring immunity against electromagnetic interference and providing stable output across various industrial environments. Its high sensitivity and linearity make it an essential tool for predictive maintenance and machinery protection systems.

Technical Specifications

Product Applications

The 330102-00-48-05-02-05 proximity probe is widely applied in critical rotating machinery monitoring systems. Typical applications include:

• Turbomachinery – monitoring shaft vibration and rotor position in turbines.

• Compressors – ensuring safe and reliable operation by detecting misalignment or imbalance.

• Pumps and Motors – providing early detection of shaft runout, wear, and mechanical looseness.

• Generators – monitoring dynamic motion to protect against catastrophic failures.

• Gearboxes – vibration monitoring for fault detection in gear teeth and bearings.

• Industrial Process Equipment – predictive maintenance and continuous monitoring of rotating assets.

Product Advantages

• High Accuracy: Provides consistent and repeatable vibration measurement with linear response.

• Robust Construction: Stainless steel housing ensures durability in harsh industrial environments.

• Electromagnetic Interference Resistance: Advanced shielding minimizes noise for precise signal detection.

• Extended Operating Temperature: Wide temperature range allows use in both standard and extreme conditions.

• Easy Integration: Fully compatible with Bently Nevada 3300 XL Proximitor sensors and monitoring systems.

• Proven Reliability: Long-standing reputation in machinery protection and condition monitoring worldwide.

FAQ

Q1: How does the 330102-00-48-05-02-05 probe detect shaft vibration?

A1: It uses eddy current principles to measure the distance between the probe tip and the conductive shaft surface, converting this displacement into an electrical signal.

Q2: What is the linear measurement range of this probe?

A2: The probe offers a linear range of 2.0 mm (80 mils).

Q3: Can this probe operate in high-temperature environments?

A3: Yes, it supports operating temperatures up to +177 °C, suitable for most industrial rotating equipment.

Q4: Is the probe compatible with older Bently Nevada monitoring systems?

A4: It is optimized for the 3300 XL Proximitor sensors, but also backward compatible with certain earlier systems when matched correctly.

Q5: How is the probe signal transmitted to the monitoring system?

A5: The probe connects to an extension cable, which links to the Proximitor sensor. The conditioned signal is then transmitted to monitoring equipment.

Q6: What type of shielding is used to prevent interference?

A6: The probe incorporates advanced electromagnetic shielding and grounded stainless steel construction.

Q7: Can the probe be used for both vibration and position measurements?

A7: Yes, it can measure both dynamic vibration and static shaft position (relative displacement).

Q8: What is the sensitivity of this probe?

A8: The sensitivity is 200 mV/mil (±6.5%).

Q9: Does cable length affect calibration accuracy?

A9: Yes, probes are calibrated with specific extension cable lengths. Using mismatched lengths may affect linearity and accuracy.

Q10: How is the probe typically installed?

A10: The probe is mounted in close proximity to the rotating shaft, secured with a mounting bracket or sleeve, and connected to an extension cable leading to the Proximitor sensor.
