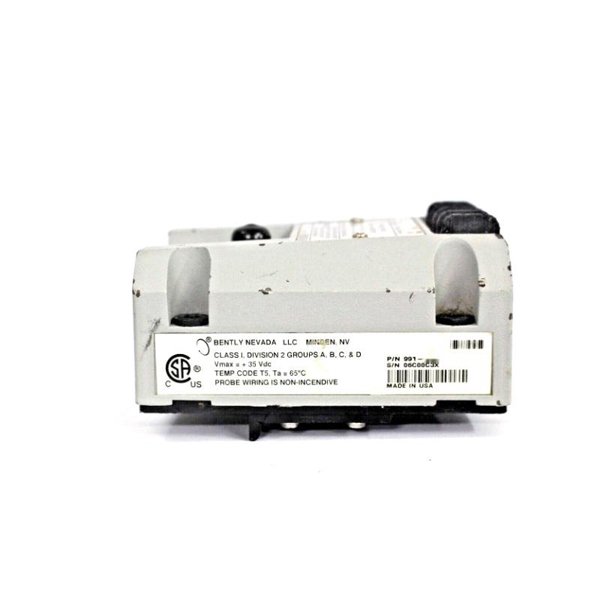

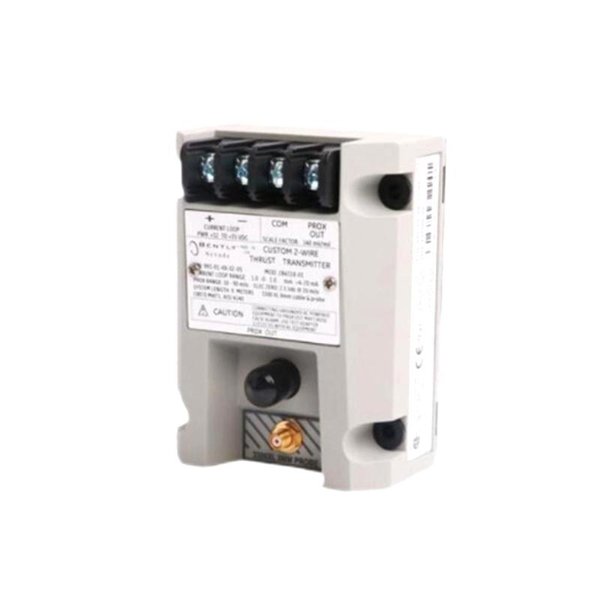

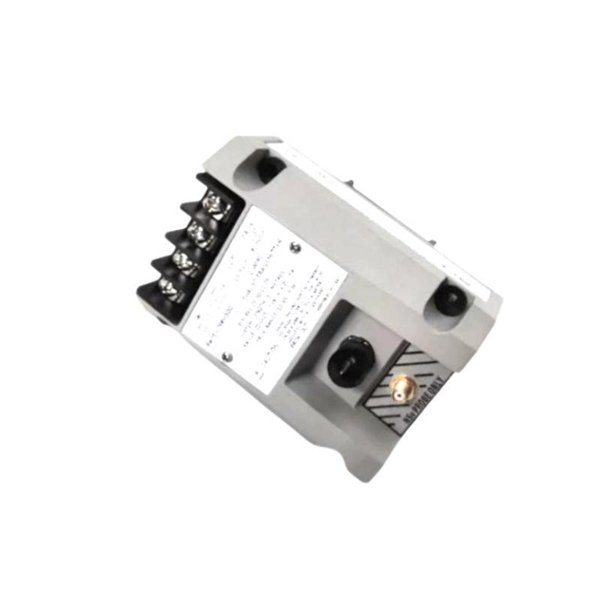

Bently Nevada 991-06-70-01-CN Thrust Transmitter
Manufacturer:Bently Nevada
Product Number:991-06-70-01-CN
Product Type:Thrust Transmitter
Origin:USA
Dimensions:100.1 x 73.9 x 53.3mm
Weight:0.43kg
Views:37
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 991-06-70-01-CN Thrust Transmitter is a compact, loop-powered 4–20 mA transmitter designed for OEMs of centrifugal compressors, pumps, motors, and fans. It interfaces with the 3300 NSv proximity probe system to deliver accurate axial displacement (thrust position) signals for machinery protection and control systems.
Technical Specifications
| Parameter | Description |
|---|---|
| Input | 3300 NSv proximity probe and matching extension cable |
| Output | 4–20 mA DC, loop-powered, proportional to shaft axial position |
| Loop Accuracy | ±1.5% over full scale |
| Max Loop Resistance | 1000 Ω at 35 VDC |
| Power Supply Range | +12 to +35 VDC |
| Zero and Span | Non-interacting potentiometers |
| Not OK/Signal Defeat | Signal <3.6 mA within 100 μs of fault |
| Prox Out Impedance | 10 kΩ (calibrated for 10 MΩ load) |
| Operating Temperature | -35°C to +85°C |
| Storage Temperature | -51°C to +100°C |
| Relative Humidity | 100% condensing |
| Dimensions | 100.1 x 73.9 x 53.3 mm |
| Weight | 0.43 kg |
| Mounting Options | DIN rail or bulkhead screws |
| Compatible Probe Range | 0.25 to 1.65 mm (10 to 65 mils) |
| Compliance | FCC, RoHS, ATEX, CSA, ABS |
| Environmental Protection | Potted construction, harsh environment compatible |
Application Areas
-
Centrifugal air compressors
-
Small industrial pumps
-
Electric motors
-
Industrial fans
-
Skid-mounted OEM machinery
-
Machinery with limited installation space
Product Advantages
Integrated Sensor Design: No need for external Proximitor units
Compact Size: Easily fits in confined equipment spaces
Diagnostics Ready: Provides dynamic signal for monitoring and diagnostics
Fast Fault Detection: Responds rapidly to Not OK conditions
Simple Installation: DIN rail or bulkhead mounting included
Rugged Build: Potted construction ideal for high-humidity areas
Standard Signal: 4–20 mA output compatible with common control systems
Frequently Asked Questions (FAQ)
Q1: What type of probe is required for this transmitter?
A1: It is compatible with Bently Nevada 3300 NSv proximity probes and extension cables.
Q2: Can it operate in hazardous environments?
A2: Yes, it meets CSA Division 2, ATEX Zone 0/2, and IECEx approvals.
Q3: What does the Not OK/Signal Defeat function do?
A3: It reduces the signal to <3.6 mA during probe faults or disconnections to avoid false alarms.
Q4: Is the output signal isolated?
A4: The “PROX OUT” signal is not isolated. Use the recommended 122115-01 test adapter for diagnostics.
Q5: How is it mounted?
A5: It supports both DIN rail and bulkhead screw mounting options.
Q6: What is the linear range of measurement?
A6: The linear range for Prox Out is 0.25–1.65 mm.
Q7: Does it support real-time diagnostics?
A7: Yes, via the PROX OUT signal output connected to test equipment.
Q8: What power voltage does it require?
A8: It operates on +12 to +35 VDC loop power.
Q9: Is it suitable for continuous monitoring systems?
A9: No, it is intended for trending and protection; continuous monitoring systems offer broader functionality.
Q10: What environments is it designed for?
A10: It is suitable for high humidity (up to 100% condensing) and industrial temperature extremes.
