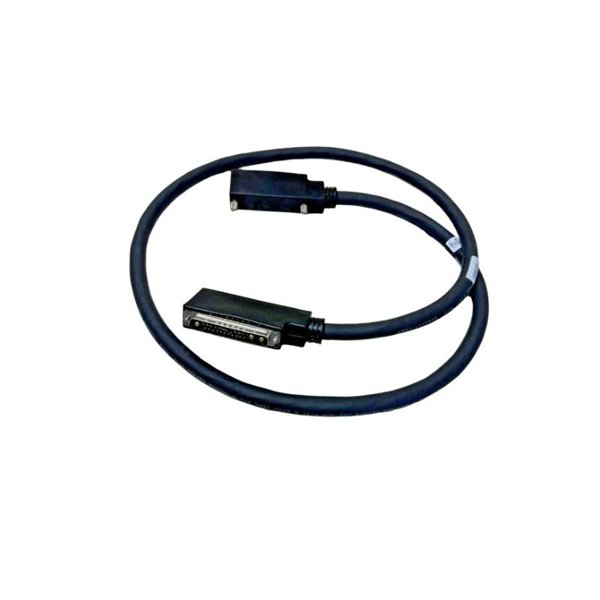

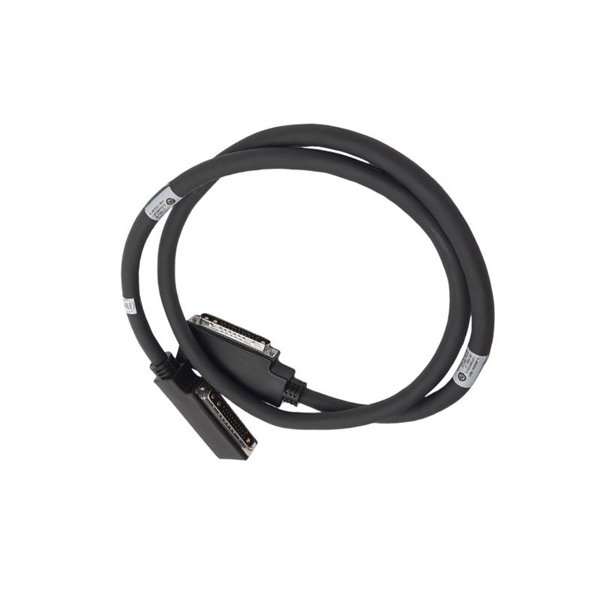

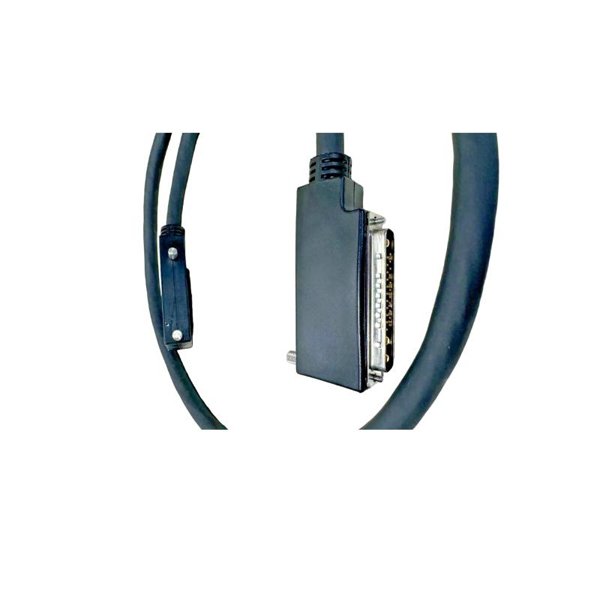

Emerson KJ4003X1-BH1 Single-Carrier Extender Cable

The Emerson KJ4003X1-BH1 is a high-quality single-carrier extender cable designed to extend the connectivity range of Emerson’s CHARM system. The cable is specifically designed for industrial automation systems, offering seamless and reliable connections for remote field devices, I/O modules, and sensors. With a length of 1.1 meters, the KJ4003X1-BH1 is perfect for applications where distance between equipment needs to be bridged without compromising on signal integrity.

The single-carrier technology ensures minimal interference and stable data transmission, which is crucial for time-sensitive applications. The cable is engineered for use in harsh industrial environments, where performance, durability, and ease of installation are paramount. Additionally, its shielded construction protects against electromagnetic interference (EMI), ensuring uninterrupted communication even in noise-heavy settings.

This cable is part of the Emerson CHARM system, which is renowned for its modularity and scalability, making it ideal for flexible and expandable industrial control systems.

Product Specifications

Applications

The Emerson KJ4003X1-BH1 single-carrier extender cable is widely used in various industries for extending the reach of I/O systems and ensuring reliable connections. Some typical applications include:

• Industrial Automation: The cable connects I/O modules, sensors, and actuators within industrial automation systems, allowing for long-distance connectivity between field devices and control systems.

• Process Control: In industries such as chemical, pharmaceutical, and food processing, the cable is used to maintain stable connections between control systems and remote sensors or field devices.

• Power Generation: The KJ4003X1-BH1 is commonly used in power plants for long-range communication between distributed sensors, controllers, and monitoring systems.

• Oil & Gas: In remote areas such as offshore platforms or oil rigs, where sensors and controllers are physically separated, the cable ensures seamless and reliable data transmission.

• Building Automation: The cable is used to connect devices in building management systems, such as HVAC systems, lighting controls, and security monitoring, enabling effective communication over long distances.

• Machine Monitoring: The cable is ideal for use in machine-to-machine communication (M2M) applications, extending the reach of monitoring systems in industrial machinery.

Product Advantages

• Enhanced Signal Integrity: The single-carrier design ensures that signals remain clear and interference-free, even over longer distances.

• High-Speed Data Transfer: Capable of supporting high-speed data transfer, the cable ensures real-time communication without delays, making it ideal for time-critical applications.

• Durability: Built from industrial-grade materials, the KJ4003X1-BH1 is durable and resistant to harsh environmental conditions, offering a reliable long-term solution for industrial applications.

• Electromagnetic Interference (EMI) Protection: The integrated shielding reduces electromagnetic interference (EMI), ensuring that data is transmitted accurately, even in environments with high electrical noise.

• Ease of Integration: Designed for easy integration with the CHARM system, the cable allows for quick and straightforward installation, minimizing downtime during system setup.

• Temperature Tolerance: With an operating temperature range from -10°C to 60°C, the cable can function in various industrial environments, including extreme temperature conditions.

• Flexibility in Installation: The 1.1-meter length offers flexibility in system design, providing enough reach for many standard applications while maintaining a compact form factor.

• Seamless Compatibility: Fully compatible with CHARM I/O modules and other Emerson automation devices, it ensures smooth integration into existing control systems.

• Scalability: As part of the CHARM system, the cable enables easy system expansion, allowing you to extend your system as your industrial needs grow.

FAQ

1. What is the primary function of the KJ4003X1-BH1 extender cable?

The KJ4003X1-BH1 is a single-carrier extender cable used to extend I/O connections and ensure stable data transmission between field devices and control systems in Emerson’s CHARM system.

2. What is the cable shielding for, and how does it help?

The cable features integrated shielding that reduces electromagnetic interference (EMI), ensuring clear and uninterrupted data communication even in industrial environments with electrical noise.

3. What makes this cable suitable for industrial applications?

The KJ4003X1-BH1 is made from industrial-grade materials that ensure durability and reliability in harsh environments. It can withstand temperature ranges from -10°C to 60°C and is built to last in demanding conditions.

4. Can the KJ4003X1-BH1 cable be used in process control systems?

Yes, the KJ4003X1-BH1 is ideal for process control applications, where it helps extend the reach of sensors and controllers, ensuring stable communication across long distances in industries like chemical, pharmaceutical, and food processing.

5. Is the KJ4003X1-BH1 cable compatible with other Emerson devices?

Yes, the KJ4003X1-BH1 is specifically designed for use with the Emerson CHARM system and is fully compatible with other CHARM I/O modules and sensors.

6. What temperature range can the KJ4003X1-BH1 cable withstand?

The KJ4003X1-BH1 can operate within a temperature range of -10°C to 60°C, making it suitable for use in a wide variety of industrial environments.

7. Does the cable support high-speed data transfer?

Yes, the KJ4003X1-BH1 is designed to support high-speed data transfer, making it suitable for time-sensitive applications that require low-latency communication.

8. How is the cable installed in a system?

The KJ4003X1-BH1 is designed for easy integration with the CHARM system. It uses standard connectors that allow for simple and quick installation, minimizing downtime during setup.

9. What are the advantages of using a single-carrier design?

The single-carrier design ensures minimal signal interference, maintaining the clarity and integrity of the data even over long distances. This makes the cable ideal for applications where clear, uninterrupted communication is critical.

10. Is the KJ4003X1-BH1 suitable for use in remote locations?

Yes, the KJ4003X1-BH1 is perfect for remote locations, such as offshore platforms, where long-distance data transmission is necessary for effective communication between control systems and field devices.
