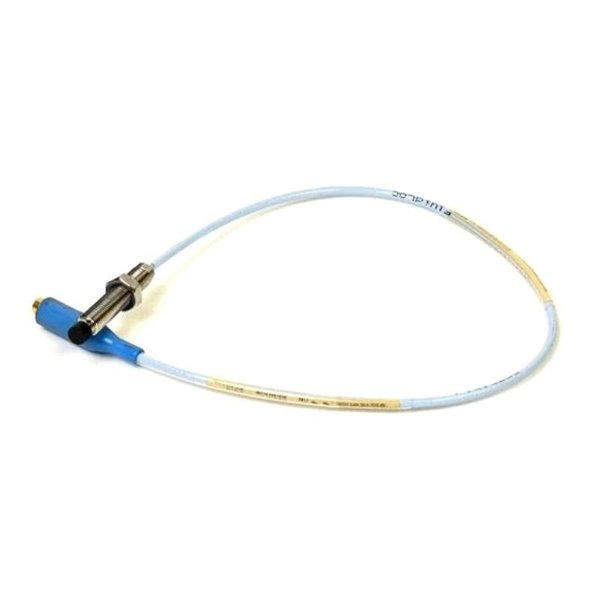

Bently Nevada 330101-01-29-10-01-05 3300 XL 8 mm Proximity Probe
Manufacturer:Bently Nevada
Product Number:330101-01-29-10-01-05
Product Type:3300 XL 8 mm Proximity Probe
Origin:USA
Total Length:1.0 meter
Weight:0.323 kg
Views:40
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330101-01-29-10-01-05 is part of the 3300 XL 8 mm Proximity Transducer System. It includes a non-contacting probe used to measure static and dynamic shaft parameters like vibration and position. The probe system features a 1.0-meter total cable length and supports API 670 compliance.
Technical Specifications
| Parameter | Description |
|---|---|
| Probe Tip Diameter | 8.0 mm |
| Case Thread | 3/8-24 UNF |
| Cable Type | 75Ω triaxial, FEP insulated |
| Connector Type | Miniature coaxial ClickLoc |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Operating Temperature | –52°C to +177°C (Standard) |
| Pressure Seal | Viton® O-ring sealing |
| Recommended Gap | 1.27 mm (50 mils), approx. –9 Vdc |
| Linear Range | 2 mm (80 mils) |
| Shaft Diameter Range | ≥50.8 mm recommended (≥76.2 mm optimal) |
| Material (Tip/Case) | PPS / AISI 303/304 Stainless Steel |
| Installation Torque | 11.2 N•m (100 in•lbf) Recommended (Standard Forward Mount) |
Applications
-
Vibration monitoring in rotating machinery
-
Shaft position measurement
-
Keyphasor and speed detection
-
Overspeed protection systems
-
Fluid-film bearing machines
Product Advantages
High Accuracy: ±5% ISF across API 670 range
Robust Construction: TipLoc and CableLoc ensure mechanical integrity
Flexible Mounting: Supports panel or DIN-rail installations
EMI/RFI Resistant: Excellent immunity for harsh environments
Easy Installation: ClickLoc connectors and SpringLoc terminals
API 670 Compliant: Fully supports standard mechanical & performance requirements
Interchangeable Components: No bench calibration needed
Frequently Asked Questions (FAQ)
Q1: What is the purpose of the 330101 proximity probe?
A1: It measures shaft vibration and position without physical contact using eddy current sensing.
Q2: What is the standard gap voltage?
A2: Approximately –9 Vdc, which corresponds to a 1.27 mm (50 mil) gap.
Q3: Is this probe API 670 compliant?
A3: Yes, it fully complies with API 670 mechanical and performance standards.
Q4: Can I use this probe in high-temperature environments?
A4: Yes, the standard version supports up to 177°C; the ETR version supports up to 218°C.
Q5: Are the probe components interchangeable?
A5: Yes, probes, extension cables, and Proximitor sensors are interchangeable across XL and non-XL series.
Q6: Does it support hazardous area installation?
A6: Yes, it carries CSA, ATEX, and IECEx approvals for hazardous areas.
Q7: What is the typical probe output signal?
A7: 200 mV/mil (7.87 V/mm) within the linear range.
Q8: How strong is the cable connection?
A8: It has a tensile strength of up to 330 N (75 lbf), ensuring durability.
Q9: Can I use it without an extension cable?
A9: Yes, the 1.0-meter version includes no extension cable.
Q10: What kind of mounting hardware is compatible?
A10: It supports both traditional panel mounting and DIN-rail installation.
