Bently Nevada 3500/05-01-01-00-00-01 3500/05 System Rack

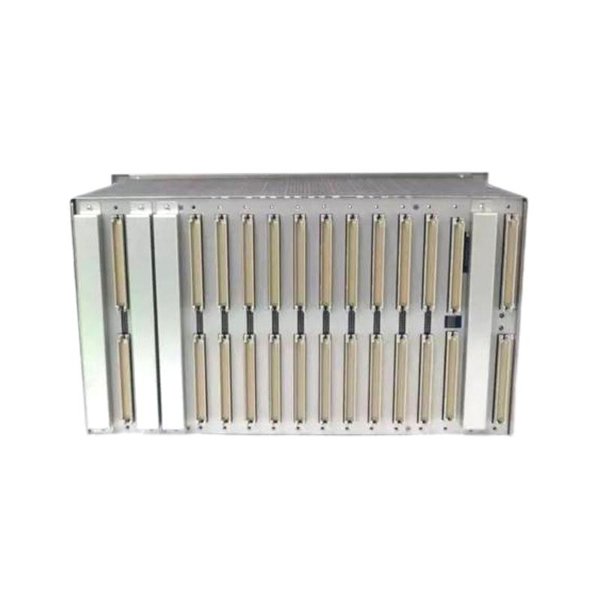

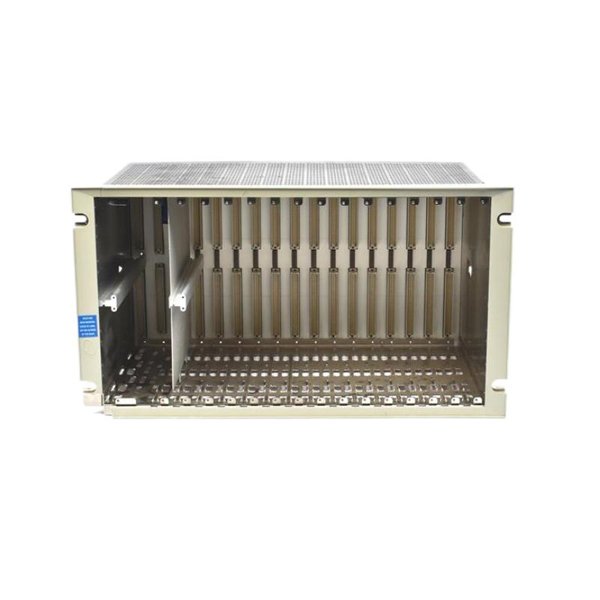

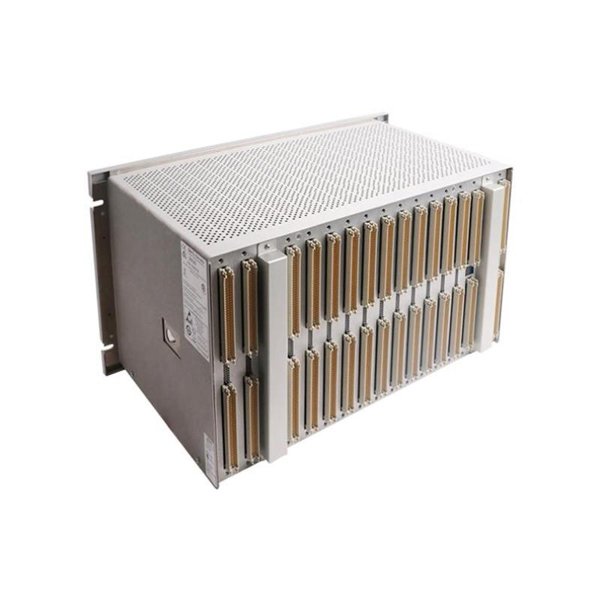

The Bently Nevada 3500/05-01-01-00-00-01 is a standard 19-inch system rack designed to serve as the structural and electrical backbone for the Bently Nevada 3500 machinery protection and condition monitoring system. Engineered with precision and ruggedness, the 3500/05 rack supports up to 14 module slots, enabling full deployment of monitoring, relay, power supply, and communication modules required for real-time equipment condition assessment.

This rack is constructed using high-quality materials to withstand industrial environments, offering passive cooling and secure backplane connectivity. It plays a vital role in the modular architecture of the 3500 system, ensuring system scalability, simplified maintenance, and organized component arrangement. The 3500/05 system rack is crucial for installations across industries such as oil and gas, power generation, petrochemicals, and manufacturing.

Technical Specifications

Applications

The Bently Nevada 3500/05 rack is used in mission-critical industries where continuous machinery monitoring is essential:

• Turbomachinery Protection

  Houses monitoring and relay modules for turbines, compressors, and expanders.

• Rotating Equipment Monitoring

  Supports sensors and transducers monitoring motors, pumps, and fans.

• Oil and Gas Production

  Enables high-integrity machinery diagnostics in upstream and downstream operations.

• Power Generation

  Used in fossil, nuclear, and renewable power stations to protect key assets.

• Refining and Petrochemical

  Forms the base for system-wide vibration monitoring and alarms.

• Industrial Manufacturing

  Centralizes monitoring for assembly lines and mechanical plant assets.

Advantages

• High-Density Slot Design

  Accommodates up to 14 modules, including power supply, I/O, monitoring, and relay functions.

• Industry-Standard Mounting

  Compatible with 19-inch rack cabinets, making integration easier in control rooms or field enclosures.

• Durable Industrial Construction

  Built with corrosion-resistant materials for long life in harsh conditions.

• Passive Cooling Efficiency

  Eliminates the need for internal fans, reducing maintenance and increasing reliability.

• Integrated Grounding and Power Bus

  Simplifies wiring, improves safety, and ensures reliable power distribution.

• Scalable Monitoring Infrastructure

  Enables flexible system configurations, ranging from basic condition monitoring to advanced predictive maintenance.

Frequently Asked Questions (FAQ)

Q1: How many modules can the 3500/05-01-01-00-00-01 rack support?

A1: It supports up to 14 standard 3500 modules.

Q2: What is the physical size of the rack?

A2: It conforms to standard 19-inch rack specifications.

Q3: Is the rack compatible with all Bently Nevada 3500 modules?

A3: Yes, it is designed to accommodate all standard 3500 series components.

Q4: Does the rack include an integrated backplane?

A4: Yes, the backplane supports power and signal distribution across modules.

Q5: What type of cooling does it use?

A5: Passive convection cooling—no internal fans required.

Q6: Can this rack be used in high-vibration environments?

A6: Yes, when properly mounted, it supports operation in high-vibration industrial areas.

Q7: What materials are used in its construction?

A7: It uses anodized aluminum and stainless steel for strength and corrosion resistance.

Q8: How is grounding handled?

A8: It includes an integrated ground plane for electrical safety and noise reduction.

Q9: Is this rack certified for hazardous areas?

A9: Rack certification depends on the full system configuration—check with Bently Nevada documentation.

Q10: What is the approximate weight?

A10: The rack weighs approximately 4.5 kg.
