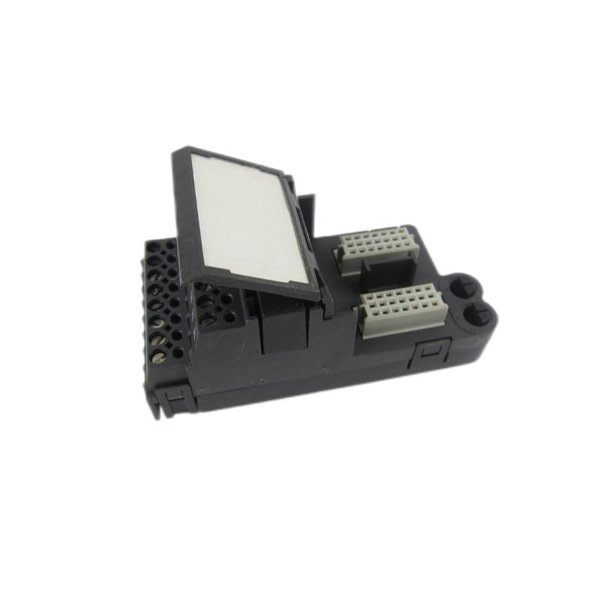

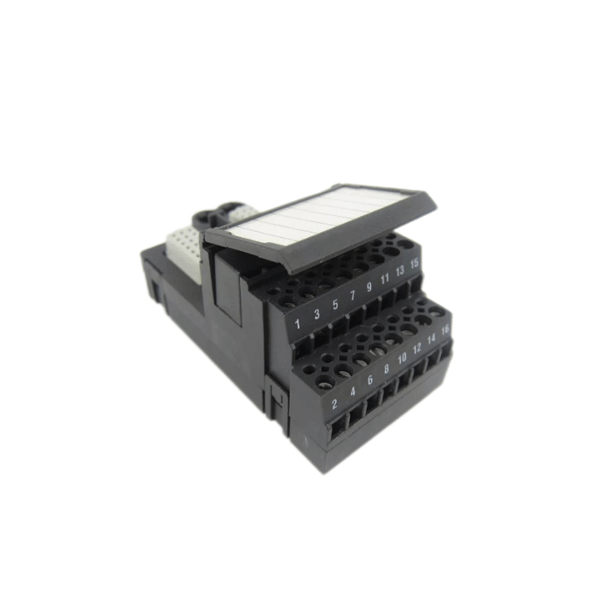

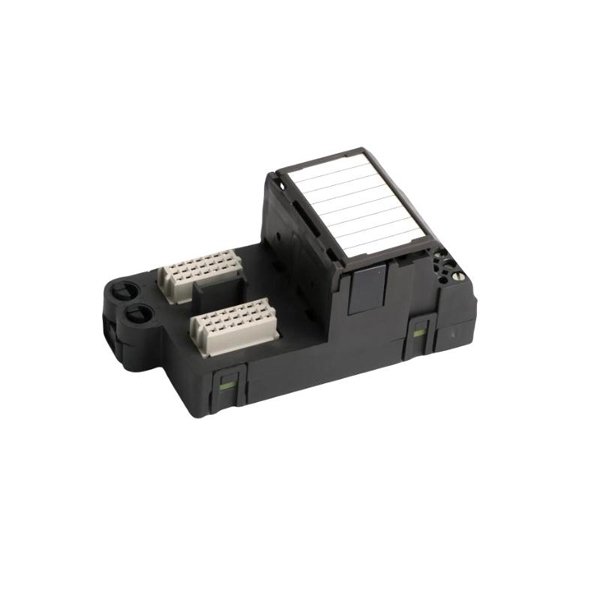

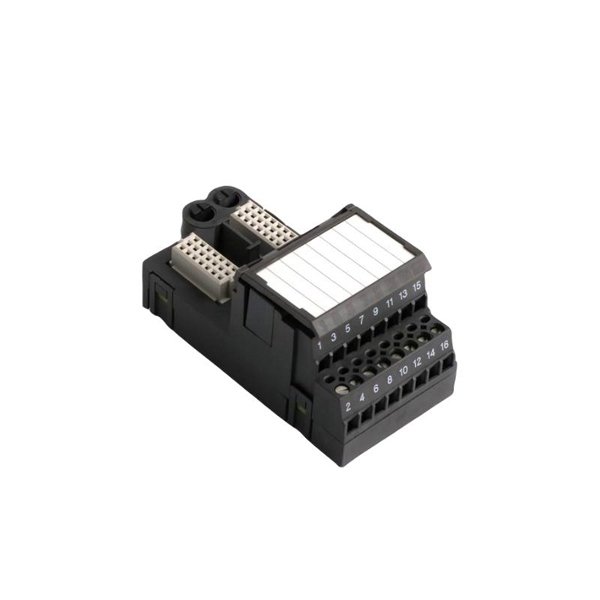

Emerson KJ4001X1-CA1 I/O Terminal Block

The Emerson KJ4001X1-CA1 I/O Terminal Block is a robust industrial-grade component designed to be part of Emerson’s DeltaV™ digital automation system. It plays a crucial role in connecting various input/output (I/O) devices to the control system, ensuring accurate and reliable data communication between the field instruments and control systems. The terminal block is part of Emerson’s advanced I/O architecture, which offers flexibility, scalability, and high performance for a wide range of process automation applications.

The KJ4001X1-CA1 provides comprehensive functionalities, including signal conditioning, electrical isolation, and secure mounting for a seamless integration of field wiring. This I/O terminal block is compatible with a broad range of sensors, actuators, and other field devices, ensuring that the entire system operates at optimal efficiency.

Product Specifications

Applications

The KJ4001X1-CA1 I/O Terminal Block is designed for a wide range of industrial automation applications, including but not limited to:

• Process Control: Interfacing sensors and actuators with the control system for accurate measurement and control in industries such as chemical, oil and gas, power, and pharmaceuticals.

• Distributed Control Systems (DCS): Integrating with Emerson’s DeltaV™ DCS or other third-party control systems to manage large-scale process systems.

• Factory Automation: Providing seamless communication between field devices and control systems in automated manufacturing environments.

• Energy Management: Monitoring and controlling electrical systems, providing real-time data on power consumption and system health.

• Safety Systems: Integrating with safety systems to ensure safe operation in hazardous environments, with certification for use in ATEX zones.

Advantages

• High Flexibility: The KJ4001X1-CA1 is designed to work with a variety of field devices, enabling greater flexibility in system design and integration.

• Reliable Signal Integrity: With galvanic isolation, it provides excellent protection against signal interference and ground loops, ensuring accurate data transmission.

• Scalable: Easily integrated into large-scale systems, with the ability to add more modules as the system grows, ensuring scalability for evolving industrial needs.

• Durable and Robust Design: The terminal block is built to withstand harsh industrial environments, offering reliable performance even in extreme conditions.

• Easy Installation and Maintenance: The terminal block uses screw-type connectors for easy wiring and maintenance, reducing downtime and facilitating quick troubleshooting.

• Compliance and Certification: The product meets international standards and certifications like CE, UL, CSA, and ATEX (optional), ensuring compatibility with global safety and regulatory requirements.

FAQ (Frequently Asked Questions)

1. What is the main function of the KJ4001X1-CA1 I/O Terminal Block?

   • The main function of the KJ4001X1-CA1 is to connect and interface input/output field devices with a control system, enabling seamless communication and data flow.

2. What types of signals does the KJ4001X1-CA1 support?

   • It supports both discrete (digital) and analog signals, including current and voltage.

3. Is the KJ4001X1-CA1 suitable for hazardous environments?

   • Yes, it can be configured for use in hazardous environments with ATEX certification, ensuring safe operation in explosive atmospheres.

4. Can the KJ4001X1-CA1 be used in outdoor installations?

   • The terminal block is designed for industrial environments, and while it can be used outdoors, it should be housed in a suitable enclosure to protect it from extreme weather.

5. What is the temperature range for the KJ4001X1-CA1?

   • The product operates within a temperature range of -20°C to 60°C.

6. How does the KJ4001X1-CA1 ensure signal integrity?

   • It features galvanic isolation, which protects signals from interference and ensures accurate transmission of data.

7. What are the mounting options for the KJ4001X1-CA1?

   • The terminal block can be mounted on a DIN rail or directly to a panel, providing installation flexibility.

8. How many input/output channels does the KJ4001X1-CA1 support?

   • The terminal block supports a variety of configurations depending on the system setup, with each terminal supporting 2A of current per channel.

9. What certifications does the KJ4001X1-CA1 have?

   • It comes with CE, UL, and CSA certifications, and can be configured with ATEX certification for use in hazardous environments.

10. Can I use the KJ4001X1-CA1 with other Emerson control systems?

    • Yes, it integrates seamlessly with Emerson’s DeltaV™ DCS and other third-party control systems for flexibility and scalability in industrial automation projects.
