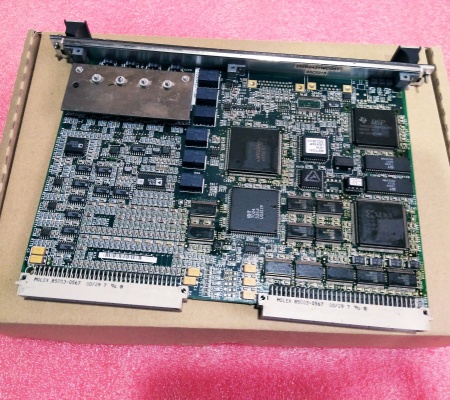

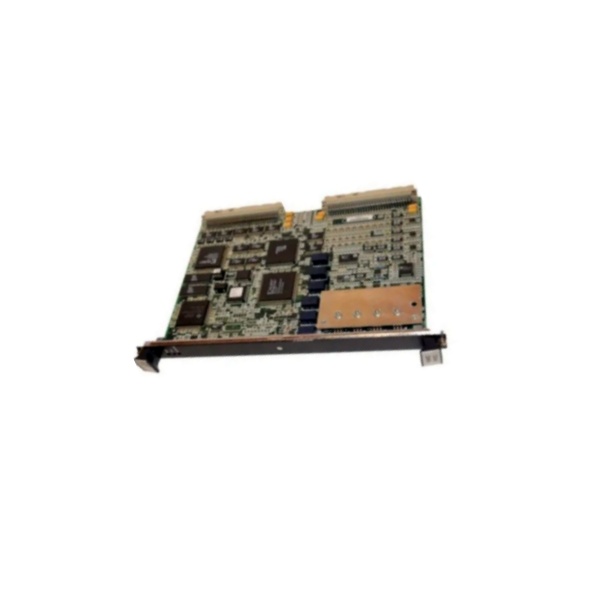

General Electric IS200VAICH1C Analog I/O Board

GE IS200VAICH1C Analog Input/Output Board. It processes analog signals from various field device sensors, transmitters, and instruments that measure parameters such as voltage, current, temperature, or pressure. The IS200VAICH1C is responsible for converting these physical parameters into electrical signals that are processed by the excitation control system.

The IS200VAICH1C board processes analog input and output signals. It can process signals from devices such as resistance temperature detectors, thermocouples, pressure transmitters, and voltage/current sensors.

It can use an analog-to-digital converter , which is used to convert incoming analog signals into digital data for the control system. A digital-to-analog converter is used to send analog output signals.

The IS200VAICH1C provides high-precision measurement and conversion of analog signals. The same directly affects the performance and safety of turbine generators or other machinery.

Frequently asked questions about the product are as follows:

-What is the purpose of the GE IS200VAICH1C Analog I/O Board?

It converts analog signals to digital format for processing by the EX2000/EX2100 excitation control system.

-What types of sensors can the IS200VAICH1C board interface with?

Resistance temperature detectors, thermocouples, voltage/current sensors, pressure transmitters, and other analog devices that measure physical parameters such as temperature, pressure, flow, and level.

-Does the IS200VAICH1C board provide diagnostic capabilities?

The IS200VAICH1C includes built-in diagnostic capabilities that monitor the health of analog input and output signals.
