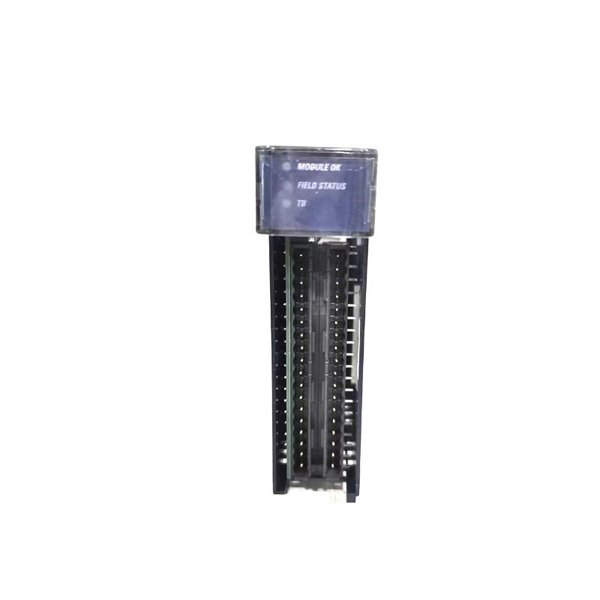

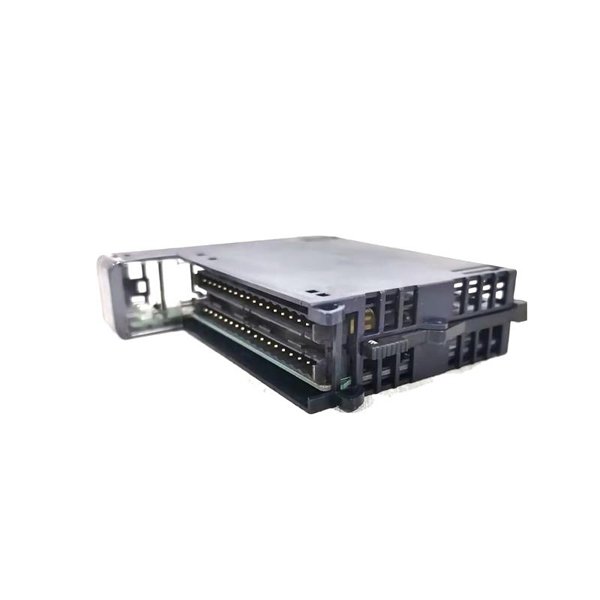

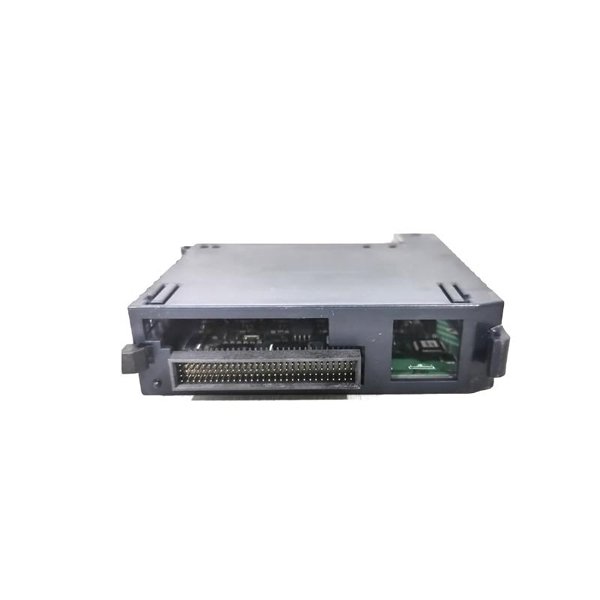

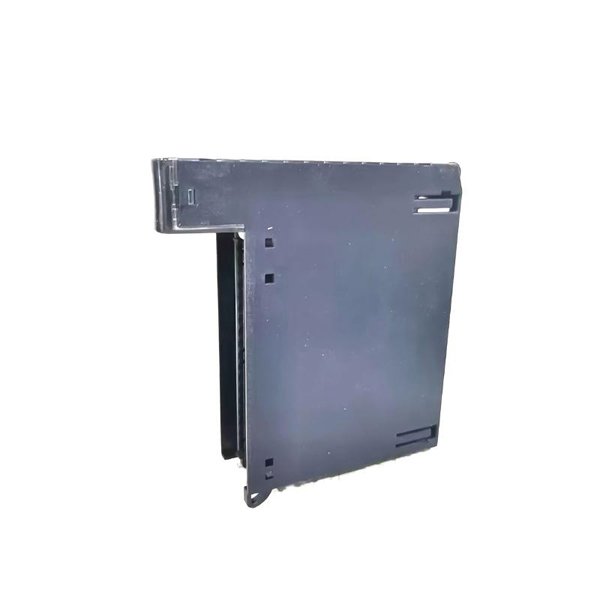

General Electric IC695ALG106 RX3i Isolated Analog Module

The GE IC695ALG106 is a high-performance isolated analog input module designed for use with the PACSystems RX3i controller series. This module provides 8 individually isolated current or voltage analog input channels, allowing the collection of precision analog data in demanding industrial environments. The IC695ALG106 ensures superior accuracy, channel-to-channel isolation, and protection against transient electrical noise, making it ideal for critical data acquisition and control applications.

Each channel of this module supports a wide range of analog input types, including 0-20mA, 4-20mA, ±10V, ±5V, and 0-10V signals. The flexibility and robustness of this module allow it to be seamlessly deployed across industries like oil & gas, power generation, water treatment, and manufacturing automation.

Product Specifications

Product Applications

The GE IC695ALG106 is widely used across a variety of industries that require high-precision analog data acquisition and robust electrical isolation. Some notable applications include:

• Oil and Gas: Monitoring wellhead pressures, temperatures, and flow rates.

• Power Generation: Input of analog signals from sensors and transmitters in turbines and boilers.

• Water and Wastewater Treatment: Measuring pH, conductivity, and flow.

• Pharmaceutical and Chemical Plants: Accurate input of analog signals from process analyzers.

• Factory Automation: Collecting analog feedback from sensors on production lines.

• HVAC Systems: Monitoring environmental and system temperatures or pressure levels.

Product Advantages

• Individual Channel Isolation: Each of the 8 input channels is individually isolated, providing enhanced protection and reducing cross-talk between signals.

• Flexible Input Range: Supports both current and voltage signal types, making it adaptable for diverse sensor types.

• High Accuracy and Resolution: 16-bit resolution with ±0.05% full-scale accuracy ensures reliable data acquisition.

• Advanced Diagnostics: Built-in capabilities like open wire and range error detection simplify troubleshooting.

• Easy Integration: Seamlessly fits into the RX3i system and uses standard backplane power and communication.

• Robust Design: Engineered to operate in harsh industrial environments with high resistance to noise and temperature variations.

• Reduced Downtime: Reliable operation minimizes the need for frequent maintenance or troubleshooting.

Frequently Asked Questions (FAQ)

1. Q: What type of signals can IC695ALG106 accept?

   A: It accepts voltage (±10V, ±5V, 0-10V) and current (0-20mA, 4-20mA) analog input signals.

2. Q: Are all 8 channels electrically isolated?

   A: Yes, each channel is isolated individually from the others and from ground.

3. Q: Is this module hot-swappable?

   A: No, the IC695ALG106 is not hot-swappable. The power must be turned off before removal or insertion.

4. Q: Can I use this module with RX7i or Series 90-30?

   A: It is designed for use specifically with RX3i backplanes and may not be compatible with RX7i or 90-30 without adapters.

5. Q: Does the module support diagnostic alarms?

   A: Yes, it provides diagnostics for open wire, overrange, and underrange conditions.

6. Q: What is the resolution of the analog inputs?

   A: The inputs are resolved at 16 bits.

7. Q: What environmental standards does it comply with?

   A: It is compliant with CE, UL, cUL, and classified for Class 1 Div 2 hazardous locations.

8. Q: How is the module powered?

   A: It draws power from the RX3i backplane: 200 mA at 5VDC and 20 mA at 24VDC.

9. Q: What kind of input filtering does it support?

   A: Delta-sigma conversion offers inherent noise filtering, suitable for precision measurement.

10. Q: Can this module be configured via Proficy Machine Edition (PME)?

    A: Yes, all configurations including channel range and diagnostics are set through PME.
