Bently Nevada 330130-075-00-05 3300 XL Standard Extension Cable
Manufacturer:Bently Nevada
Product Number:330130-075-00-05
Product Type:3300 XL Standard Extension Cable
Origin:USA
Cable Length:7.5 meters
Weight:0.255 kg
Views:49
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description

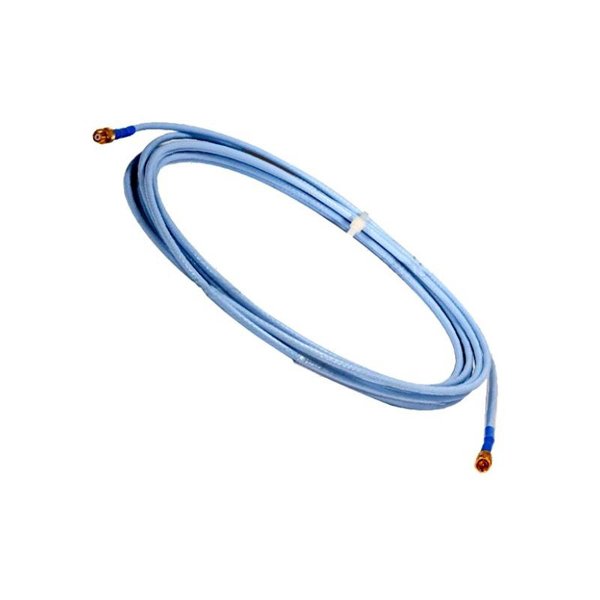

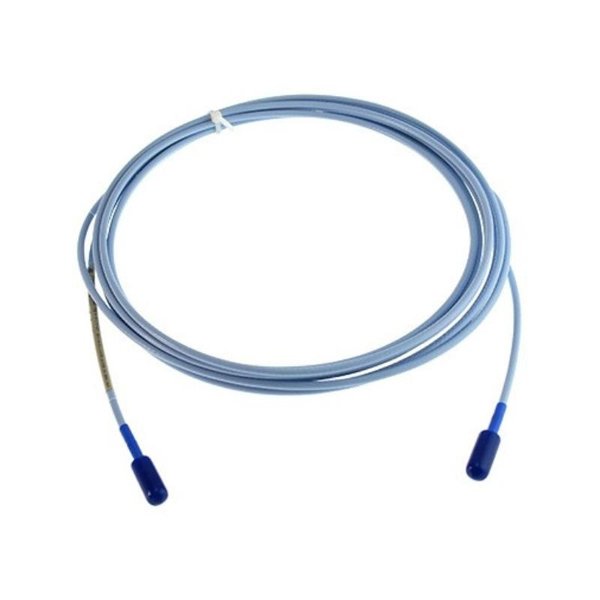

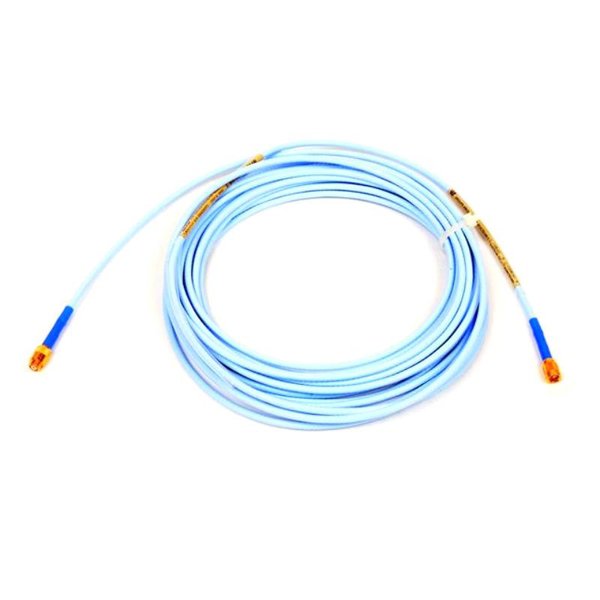

The Bently Nevada 330130-075-00-05 is a 7.5-meter standard extension cable, part of the 3300 XL 8 mm Proximity Transducer System. It connects the proximity probe to the Proximitor sensor, maintaining signal fidelity and mechanical durability. This cable is built with high-performance FEP insulation, a robust connector design, and is available with optional armor or environmental protectors.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 330130-075-00-05 |
| Product Type | Extension Cable |
| Cable Length | 7.5 meters |
| Weight | 0.255 kg |
| Capacitance | 69.9 pF/m (typical) |
| Core Resistance (RCORE) | 1.65 ± 0.25 Ω |
| Jacket Resistance (RJACKET) | 0.49 ± 0.10 Ω |
| Insulation Material | FEP (Fluoroethylene Propylene) |
| Minimum Bend Radius | 25.4 mm (1.0 in) |
| Connector Material | Gold-plated brass or beryllium copper |
| Max Connector Torque | 0.565 N•m (5 in•lbf) |
| Operating Temperature Range | -52°C to +177°C |
| Storage Temperature Range | -52°C to +177°C |
| Environmental Protection | Optional connector protector or armor |
Applications
-
Used in turbine and rotating equipment monitoring systems
-
Vibration and axial position measurements
-
Keyphasor® and speed detection systems
-
Suitable for high-density installation environments
-
Ideal for high-temperature and oil-prone industrial settings
Product Advantages
ClickLoc® Connectors: Prevents accidental loosening, no tools needed
FluidLoc Option: Prevents oil leakage through the cable interior
High Pull Strength: Patented CableLoc™ provides 330 N pull resistance
Flexible Installation: Interchangeable with other 3300 XL and non-XL components
Extended Temperature Compatibility: Works with ETR systems for up to 260°C
Durable Materials: FEP insulation for chemical and temperature resistance
Frequently Asked Questions (FAQ)
Q1: What is the function of the 330130-075-00-05 cable?
A1: It connects the proximity probe to the Proximitor sensor, transmitting signals accurately over a 7.5-meter distance.
Q2: Is this cable compatible with non-XL Bently Nevada systems?
A2: Yes, it is both electrically and mechanically compatible with non-XL 3300 8 mm and 5 mm systems.
Q3: Can this extension cable be used in high-temperature environments?
A3: Yes, it supports operation up to 177°C and can pair with ETR components for up to 260°C.
Q4: What is the significance of the ClickLoc connector?
A4: It ensures secure and reliable connection with a tactile click, eliminating the need for tools.
Q5: Does this cable come armored?
A5: This specific version is standard; armored versions are available as optional variants.
Q6: Is it suitable for outdoor or harsh environments?
A6: Yes, especially when used with optional connector protectors or armored jackets.
Q7: What materials are used for insulation?
A7: The cable is insulated with FEP, providing high resistance to heat and chemicals.
Q8: What is the expected weight of the 7.5-meter cable?
A8: Approximately 0.255 kg.
Q9: Is any special tool required for installation?
A9: No, installation can be done by hand due to the ClickLoc connector design.
Q10: Can this cable be used in hazardous areas?
A10: Yes, if installed per the correct standards and drawings, it complies with ATEX and IECEx requirements.
