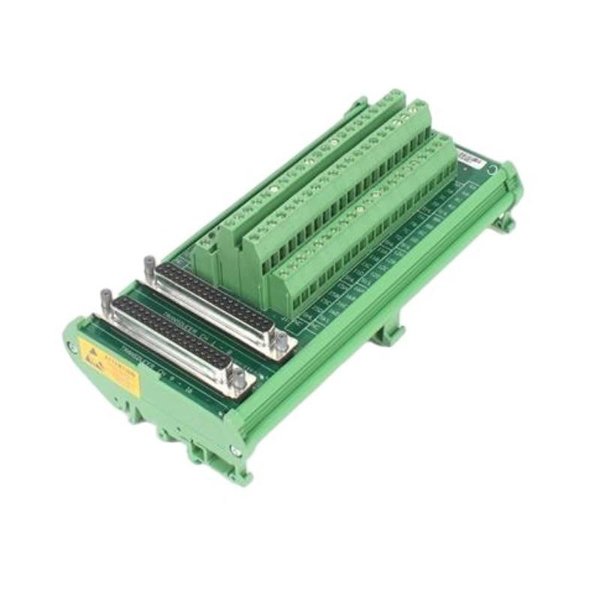

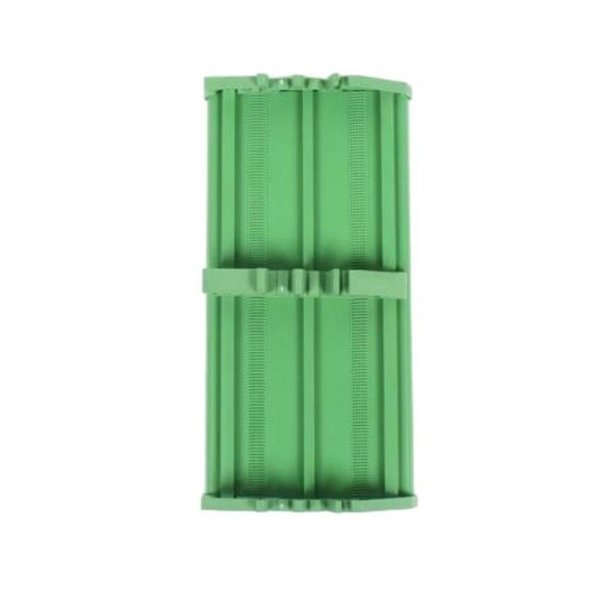

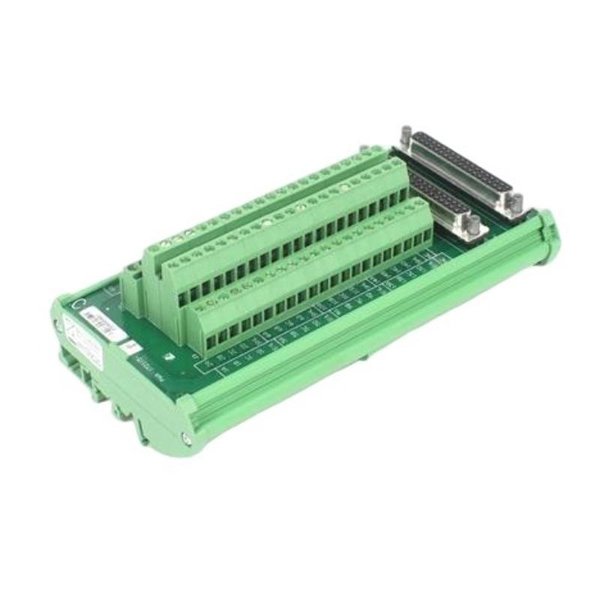

Bently Nevada 3500/65 172115-01 RTD/Isolated Tip TC External Terminal Block
Manufacturer:Bently Nevada
Product Number:3500/65 172115-01
Product Type:RTD/Isolated Tip TC External Terminal Block
Origin:USA
Dimensions:150 × 100 × 50 mm
Weight:0.8kg
Views:34
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 3500/65 172115-01 is an external terminal block designed for RTD (Resistance Temperature Detector) and isolated tip thermocouple (TC) connections in 3500/65 temperature monitoring systems. It provides secure and reliable field wiring connections for temperature sensors, ensuring accurate monitoring and long-term system reliability. The terminal block is suitable for industrial environments requiring precise temperature measurement and isolation.
Key Features
Supports RTD and isolated tip thermocouple connections
Secure and reliable external field wiring
Designed for integration with 3500/65 Temperature Monitor modules
Simplifies installation and maintenance
Provides electrical isolation for thermocouple inputs
Rugged construction for industrial environments
Facilitates accurate temperature monitoring
Technical Specifications
| Item | Specification |
|---|---|
| Module Type | RTD/Isolated Tip TC External Terminal Block |
| Model Number | 172115-01 |
| System Compatibility | Bently Nevada 3500/65 Temperature Monitor Modules |
| Number of Channels | Up to 16 RTD/TC connections |
| Terminal Type | Screw-type field connections |
| Isolation | Electrical isolation for TC inputs |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Dimensions | 150 × 100 × 50 mm |
| Weight | 0.8 kg |
Industry Applications
Power Generation – Connecting RTD and TC sensors for turbines, boilers, and auxiliary equipment
Oil & Gas – Precise temperature monitoring of pumps, compressors, and process systems
Chemical & Petrochemical – Field wiring for process temperature control
Pharmaceuticals – Accurate temperature measurement for batch processing
Water & Wastewater – Connecting field RTD and TC sensors to monitoring systems
Industrial Machinery – Reliable temperature measurement for rotating and stationary equipment
Frequently Asked Questions (FAQ)
Q1: What is the function of the 172115-01 terminal block?
It provides secure field connections for RTD and isolated tip thermocouple sensors.
Q2: How many sensor channels does it support?
It supports up to 16 RTD or TC connections.
Q3: Is electrical isolation provided for TC inputs?
Yes, the module ensures proper electrical isolation for thermocouple connections.
Q4: What is the operating temperature range?
-20°C to 70°C.
Q5: What type of terminals are used for wiring?
Screw-type field terminals.
Q6: Can it be used with 3500/65 Temperature Monitor modules?
Yes, it is fully compatible.
Q7: What are the module dimensions?
150 mm × 100 mm × 50 mm.
Q8: How much does the module weigh?
Approximately 0.8 kg.
Q9: Is the module suitable for industrial environments?
Yes, it is designed for rugged industrial use.
Q10: Does it simplify maintenance?
Yes, the external terminal block allows easy wiring inspection and replacement of sensors.
