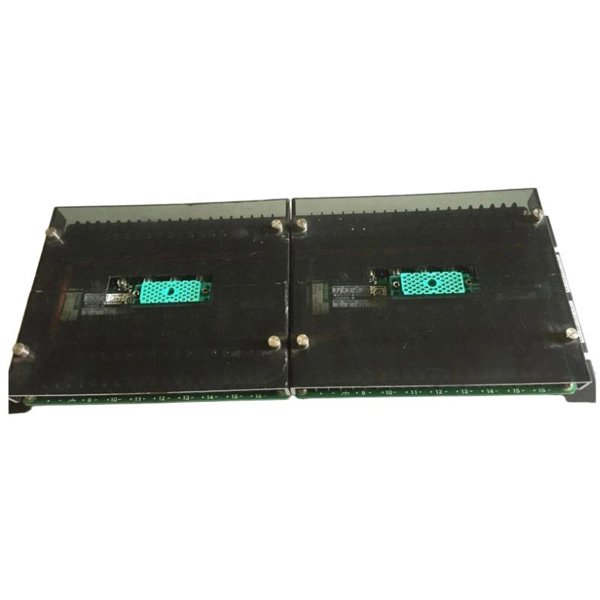

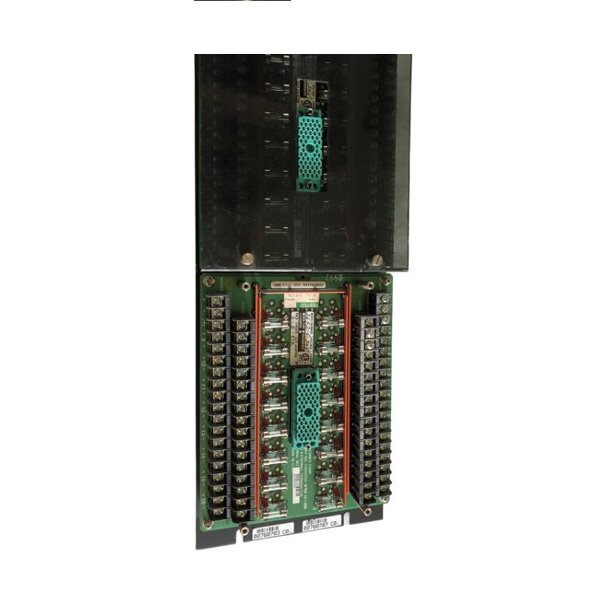

Triconex 3000120-360 DI External Terminator

The Triconex 3000120-360 DI External Terminator is an essential hardware accessory designed to function as a signal conditioning and termination point for digital input signals within the Triconex safety control architecture. Specifically crafted to complement digital input (DI) modules, this external terminator ensures optimal signal integrity by providing proper electrical termination for incoming field wiring, thereby minimizing noise, reflection, and false triggering in high-reliability environments.

Used extensively in Triconex Triple Modular Redundant (TMR) systems, the 3000120-360 facilitates seamless integration between field-level digital devices (such as switches and relays) and safety system input modules. It supports both dry contact and voltage-based input types, providing isolation, conditioning, and simplified cabling. This terminator is commonly installed in junction boxes or control cabinets in industries where safety, accuracy, and diagnostics are mission-critical.

Product Specifications

Product Applications

• Emergency Shutdown Systems (ESD): Provides signal termination for field interlocks and shutdown switches to DI modules.

• Fire & Gas Detection Systems: Interfaces dry contact sensors such as flame detectors, manual call points, and gas detectors.

• Turbine Overspeed & Trip Systems: Ensures reliable signal reception from critical limit switches or overspeed sensors.

• Process Control Shutdowns: Supports termination of digital status signals from pumps, compressors, and valves.

• Refineries and Petrochemical Plants: Interfaces field signals in SIL2/SIL3 safety loops for hazardous area operations.

• Power Generation Systems: Used for signal integrity in turbine trips, emergency stops, and control relay status detection.

Product Advantages

• Noise-Free Signal Termination: Reduces signal reflection and electromagnetic interference (EMI), ensuring accurate signal detection by DI modules.

• Optimized for Triconex Systems: Engineered for compatibility with Triconex digital input modules and safety architecture.

• Ease of Installation: Pre-labeled terminals, standardized channel arrangements, and simplified mounting options reduce field wiring time.

• Passive, Reliable Design: No internal electronics—minimizing failure points and extending service life.

• Flexible Application Use: Suitable for both dry contact and powered digital input types across various industrial sectors.

• Improved Maintenance Access: Structured terminal layout allows for easy diagnostics, inspection, and replacement during maintenance.

• Industrial-Grade Construction: Built to withstand harsh environmental conditions including vibration, dust, and high humidity.

Frequently Asked Questions (FAQ)

1. Can the 3000120-360 be used with both dry contact and 24VDC signals?

   Yes, it supports both dry contact and externally powered digital input signals depending on the paired DI module.

2. Does this external terminator provide any diagnostics?

   No, it is a passive device and does not offer onboard diagnostics or LED indicators.

3. Is the 3000120-360 compatible with all Triconex DI modules?

   It is compatible with most Triconex DI modules, particularly within the 3000 series architecture.

4. What is the function of isolation in this device?

   Isolation prevents electrical interference from field wiring, protecting the Tricon system from voltage spikes and noise.

5. Does the module require an external power supply?

   No, it is a passive component and receives any required signal conditioning through the system itself.

6. Can this terminator be used in redundant (TMR) configurations?

   Yes, it supports TMR systems by ensuring signal quality across redundant DI channels.

7. How many channels can this device terminate?

   Typically, it is designed to support 32 digital input channels, depending on system configuration.

8. Can it be hot-swapped during system operation?

   As a passive device, it can be disconnected, but proper shutdown procedures should still be followed.

9. Is it compliant with IEC or SIL safety standards?

   Yes, when used in conjunction with certified Triconex components, it supports IEC 61508 SIL2/SIL3 safety architectures.

10. Does it offer protection against signal overvoltage or short circuits?

    Basic protection is provided through isolation and circuit design, but additional external protection is recommended for harsh conditions.
