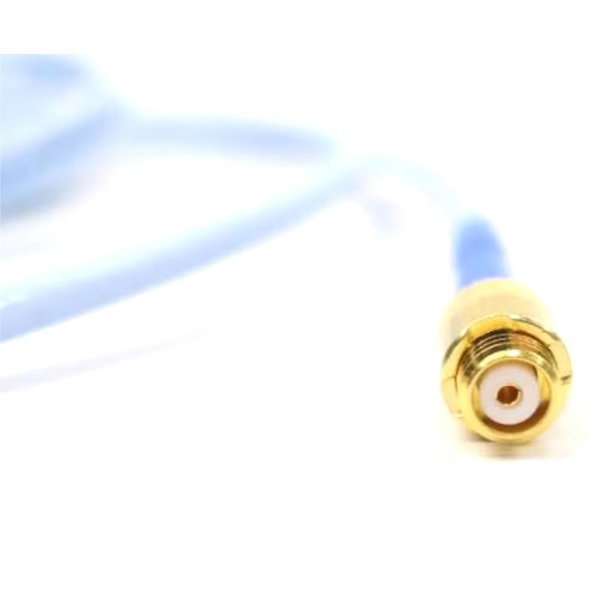

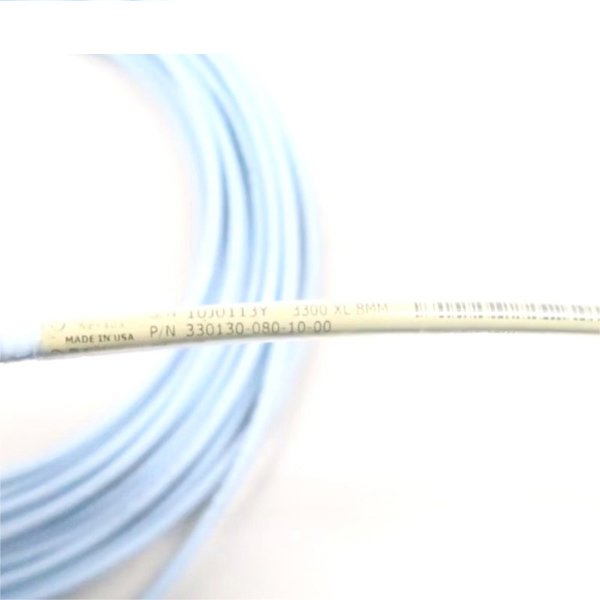

Bently Nevada 330130-080-10-00 3300 XL Standard Extension Cable
Manufacturer:Bently Nevada
Product Number:330130-080-10-00
Product Type:3300 XL Standard Extension Cable
Origin:USA
Cable Length:8.0 meters
Weight:0.272 kg
Views:48
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330130-080-10-00 is an 8.0-meter 3300 XL Standard Extension Cable designed for use in the 3300 XL 8 mm Proximity Transducer System. It connects the proximity probe to the Proximitor sensor, enabling accurate dynamic vibration and static position measurements in critical rotating machinery applications. Built with ClickLoc connectors and durable FEP insulation, it ensures reliable performance in demanding environments.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | 330130-080-10-00 |
| Cable Type | 75 Ω triaxial, FEP insulated |
| Cable Length | 8.0 meters (26.2 feet) |
| Weight | 0.272 kg |
| DC Resistance (Core) | 1.76 ± 0.26 Ω |
| DC Resistance (Jacket) | 0.53 ± 0.11 Ω |
| Capacitance | 69.9 pF/m (21.3 pF/ft) |
| Temperature Range | –52°C to +177°C |
| Minimum Bend Radius | 25.4 mm (1.0 in) |
| Connector Type | Gold-plated ClickLoc coaxial |
| Connector Torque | Finger-tight (click lock) |
| Environmental Rating | RFI/EMI shielded, CE compliant |
Applications
-
Radial vibration and axial position monitoring
-
Speed and Keyphasor reference signal transmission
-
Integration with Bently Nevada’s Proximitor Sensors in machinery protection systems
-
Suitable for high-temperature industrial rotating machinery environments
Product Advantages
-
ClickLoc connectors for secure and tool-free connection
-
FluidLoc cable option available to prevent oil migration
-
Backward compatibility with non-XL 3300 components
-
High signal integrity and EMI resistance for harsh environments
-
Precise fit in both panel and DIN-rail mounted configurations
-
Extended temperature capability available through optional ETR models
FAQ
Q1: What is the primary function of the 330130-080-10-00 cable?
A1: It connects a proximity probe to a Proximitor sensor to transmit signals for vibration and position monitoring.
Q2: What systems is this cable compatible with?
A2: It is compatible with the Bently Nevada 3300 XL 8 mm Proximity Transducer System.
Q3: Can this extension cable be used with older 3300-series components?
A3: Yes, it is backward compatible with non-XL 3300 5 mm and 8 mm systems.
Q4: What material is used for the insulation?
A4: Fluoroethylene propylene (FEP).
Q5: Is special tooling needed for connector installation?
A5: No, the ClickLoc connectors are designed for finger-tightening.
Q6: Can this cable be used in high-temperature environments?
A6: Yes, the standard cable supports up to +177°C, and ETR options up to +260°C.
Q7: How secure are the cable connectors?
A7: They feature a locking click mechanism and gold plating for corrosion resistance.
Q8: What is the recommended bend radius for this cable?
A8: 25.4 mm (1 inch).
Q9: Does the cable support fluid-blocking features?
A9: Optional FluidLoc versions are available to prevent fluid migration.
Q10: Is it certified for industrial and hazardous areas?
A10: Yes, with ATEX, CSA, and IECEx approvals for appropriate models.
