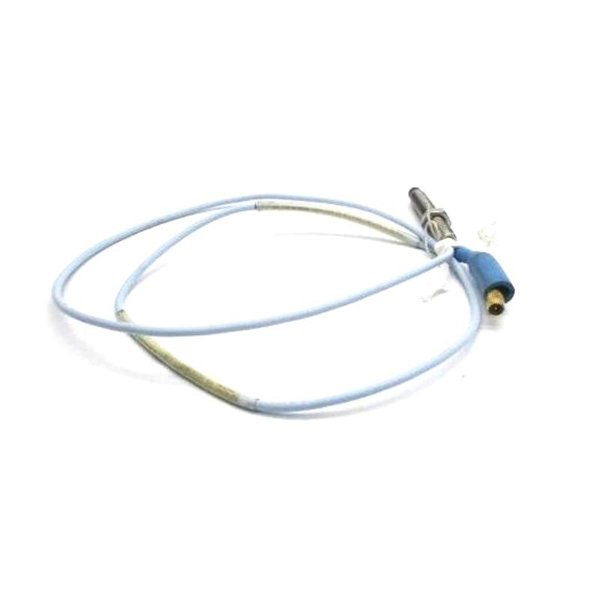

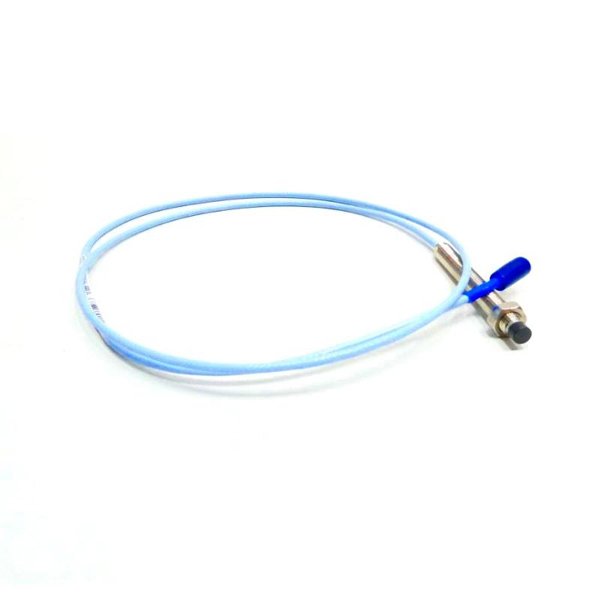

Bently Nevada 330101-13-37-10-02-05 3300 XL 8 mm Proximity Probe
Manufacturer:Bently Nevada
Product Number:330101-13-37-10-02-05
Product Type:3300 XL 8 mm Proximity Probe
Origin:USA
Total Length:1.0 meter
Weight:0.323 kg
Views:36
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330101-13-37-10-02-05 3300 XL 8 mm Proximity Probe is part of the 3300 XL 8 mm Proximity Transducer System, designed for precise vibration and position monitoring of rotating machinery. It delivers linear, reliable measurements of static and dynamic displacement, and complies with API 670 standards. The probe, extension cable, and Proximitor sensor are fully interchangeable, simplifying maintenance.
Applications
-
Vibration monitoring of fluid-film bearing machines
-
Shaft position measurement
-
Keyphasor reference signal generation
-
Speed and overspeed protection systems
-
Machinery protection in power plants, refineries, and industrial environments
Advantages
-
Fully API 670 compliant
-
High linearity and temperature stability
-
Rugged design with improved TipLoc and CableLoc technology
-
Excellent RFI/EMI immunity for harsh environments
-
Finger-tight ClickLoc connectors for quick installation
-
Backward compatibility with earlier 3300 series systems
Technical Specifications
| Parameter | Value |
|---|---|
| Probe Tip Diameter | 8 mm |
| Thread Size | 3/8-24 UNF |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap | 1.27 mm (50 mils) |
| Frequency Response | 0–10 kHz (+0, -3 dB) |
| Operating Temperature Range | -52°C to +177°C (standard probe) |
| Storage Temperature Range | -52°C to +177°C |
| Humidity Resistance | <3% ASF change at 93% RH |
| Compliance | CE, RoHS, FCC, SIL 2/3 |
FAQ
Q1: What is the primary use of the 330101-13-37-10-02-05 probe?
A1: It is used for monitoring shaft vibration, position, and speed in rotating machinery.
Q2: Is the probe compatible with non-XL 3300 series components?
A2: Yes, it is backward compatible with 3300 5 mm and 8 mm components.
Q3: Does it comply with API 670?
A3: Yes, it fully meets API 670 specifications for mechanical configuration and accuracy.
Q4: What makes the probe more durable?
A4: It features TipLoc and CableLoc designs for improved mechanical strength.
Q5: Can it operate in high-temperature environments?
A5: Yes, up to +177°C standard, and extended temperature options are available.
Q6: What kind of connectors are used?
A6: Gold-plated ClickLoc connectors that are corrosion-resistant and easy to install.
Q7: Is calibration to other materials available?
A7: Yes, while it ships calibrated for AISI 4140 steel, other calibrations are available upon request.
Q8: Does it require special tools for installation?
A8: No, the connectors are finger-tight, and no special tools are needed.
Q9: How long is the linear range of measurement?
A9: The linear range is approximately 2 mm (80 mils).
Q10: Can it be mounted in high-density DIN-rail configurations?
A10: Yes, the Proximitor sensor supports both DIN-rail and panel mount options.
