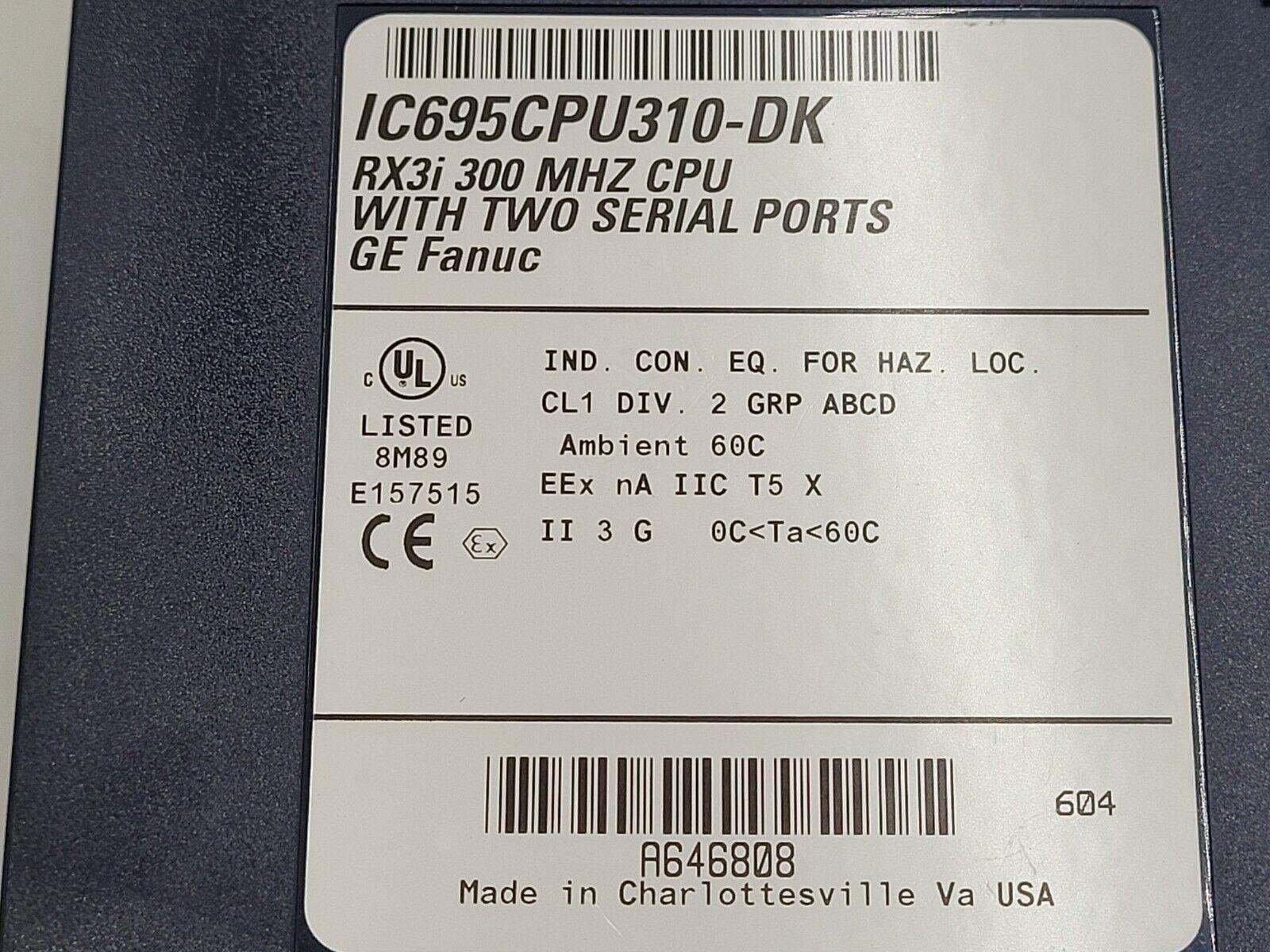

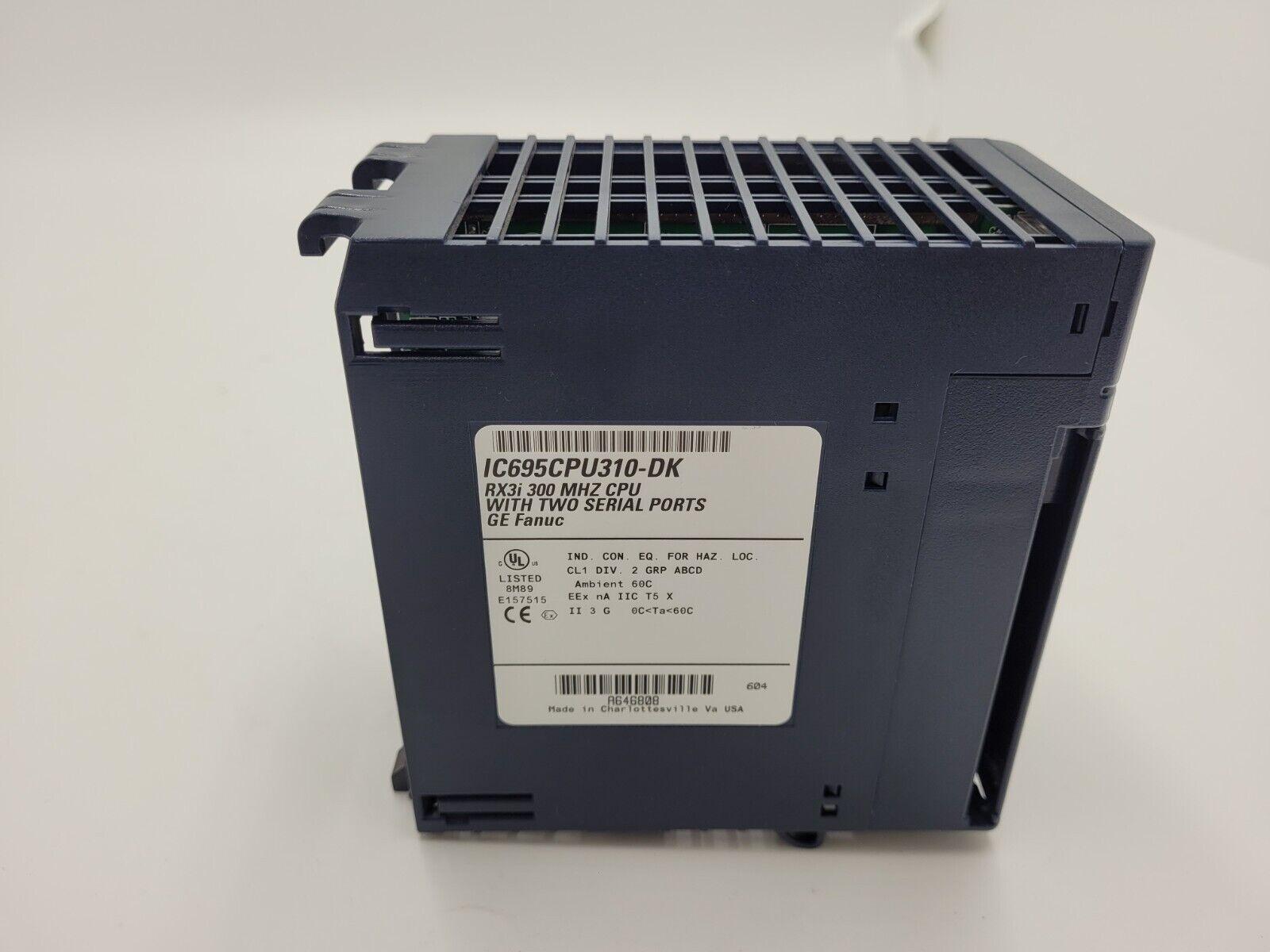

GE Fanuc IC695CPU310 CPU Module

The GE Fanuc IC695CPU310 is a CPU module ，it is a part of the GE Fanuc RX3i Series. It operates at 300 MHz and features an Intel Celeron (Pentium III) microprocessor with 10 MB of RAM and 10 MB of flash storage.

Communication and Protocols

This module has two embedded serial ports for RS-232 and RS-485 communications. These ports are conveniently located on the front of the chassis. They support three different serial protocols: Modbus RTU Slave, SNP, and Serial I/O. These protocols are essential for communicating with programmable logic controllers (PLCs) to facilitate data exchange. Notably, it utilizes the SNP Slave protocol for communication with Human-Machine Interface (HMI) devices.

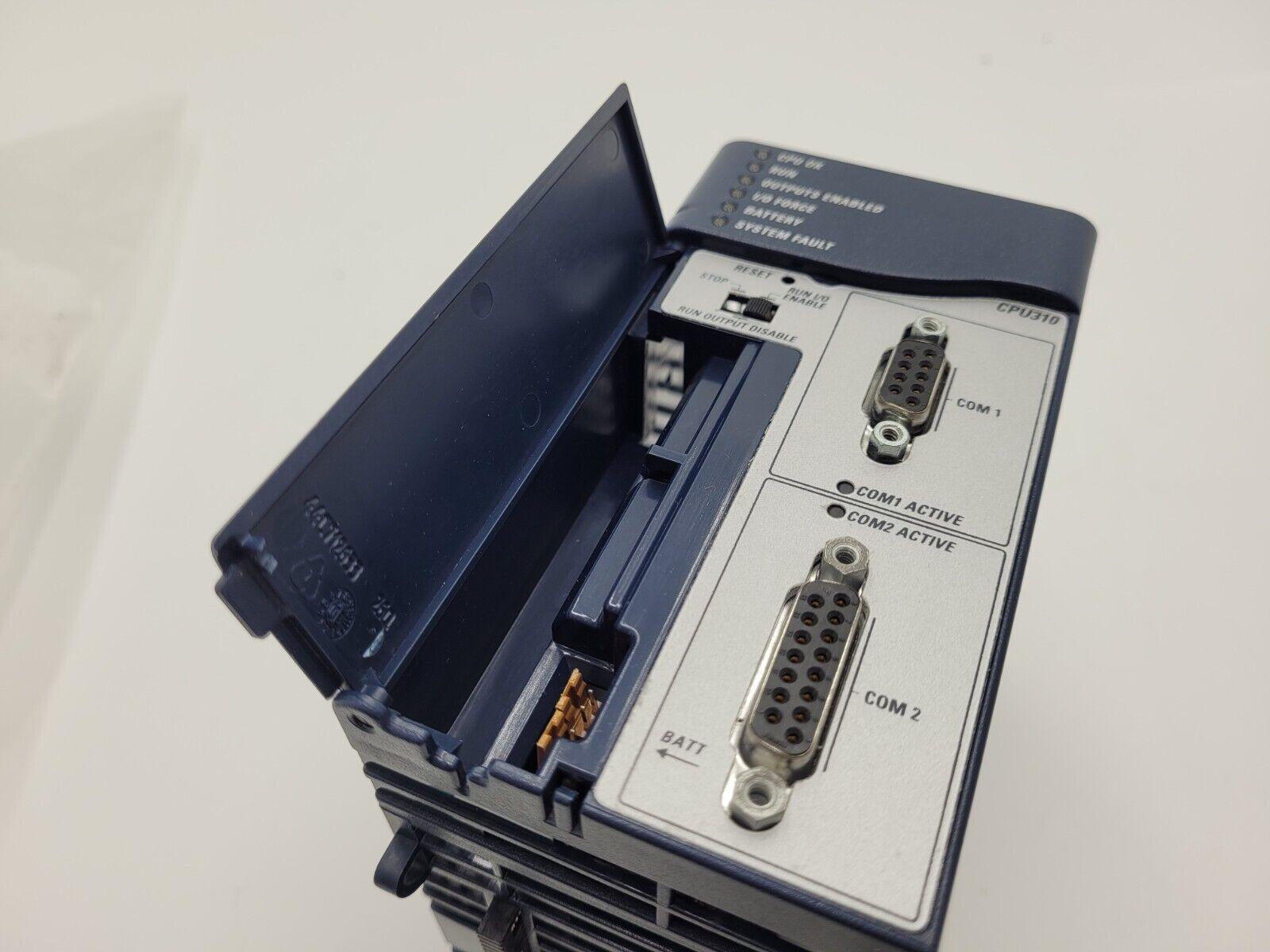

System Status and LEDs

To provide quick system status information, the module features eight LEDs on the front panel. These LEDs follow standard conventions: blinking or red lights indicate faults, while steady green lights signify normal operation.

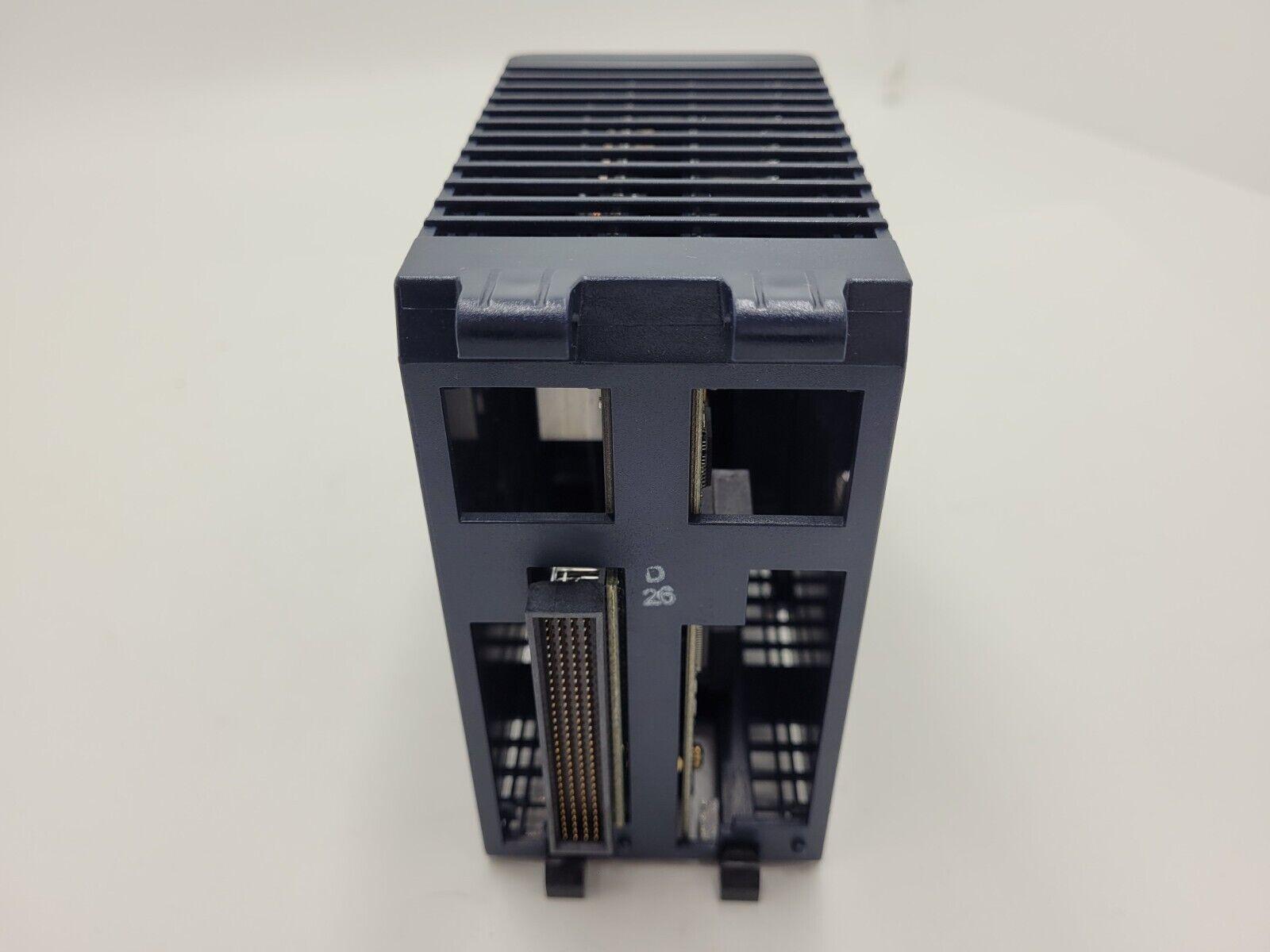

Backplane and Programming

The IC695CPU310 employs a dual backplane bus architecture. It is compatible with RX3i PCI and GE Fanuc Series 90-30-style serial bus usage. It supports up to 512 program blocks, each with a maximum size of 128 KB. This offers programming flexibility in languages such as Ladder Diagram, Structured Text, Function Block Diagram, and even C programming.

Technical Specifications

• Processing Speed: 300 MHz
• CPU Memory: 10 Mbytes
• Floating Point: Yes
• Serial Ports: 2
• Serial Protocols: Modbus RTU Slave, SNP, Serial I/O
• Embedded Comms: RS-232, RS-485

Installation and Operation

This module fits into the 16-slot or 12-slot RX3i universal backplane. It operates at 1.25 Amps with a voltage rating of 3.3 Volts DC and 1 Amp at 5 Volts DC. The module functions within a temperature range of 0 to 60 degrees Celsius. It includes battery-backed RAM up to 10 MB and non-volatile flash memory of 10 MB.

Compatibility and Programming Flexibility

Supporting floating-point data format, it provides a typical execution speed of 0.195 milliseconds/1000 Boolean instructions. The IC695CPU310 includes an internal real-time clock with a maximum drift of 2 seconds per day and an elapsed time clock with an internal timing accuracy of 0.01 percent at maximum.

Communication Protocols and Interfaces

The IC695CPU310 supports RS-232/RS-485 interfaces and Serial I/O, Modbus RTU Slave, and SNP serial communication protocols. It is compatible with GE Series 90-30 serial backplanes and RX3i PCI backplanes. Electrically compliant with PCI 2.2 standards, it supports a maximum of 512 program blocks, each with a block size of 128 KB, and offers programming flexibility in ladder diagrams, structured text, and function block diagrams. Additionally, it provides firmware upgrades for advanced features.
