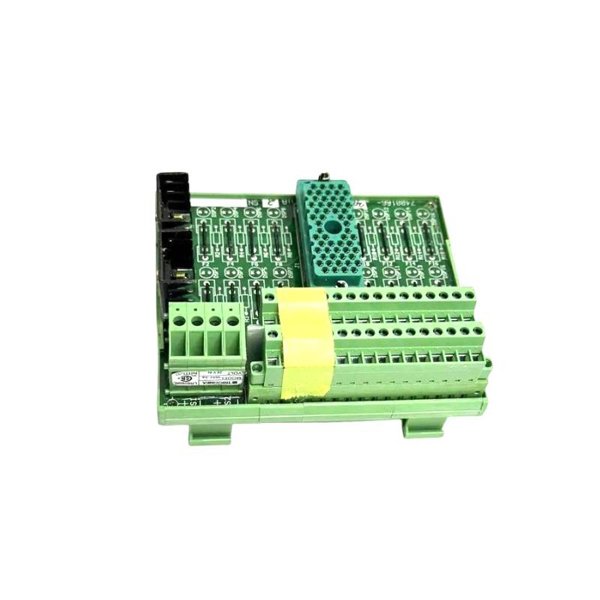

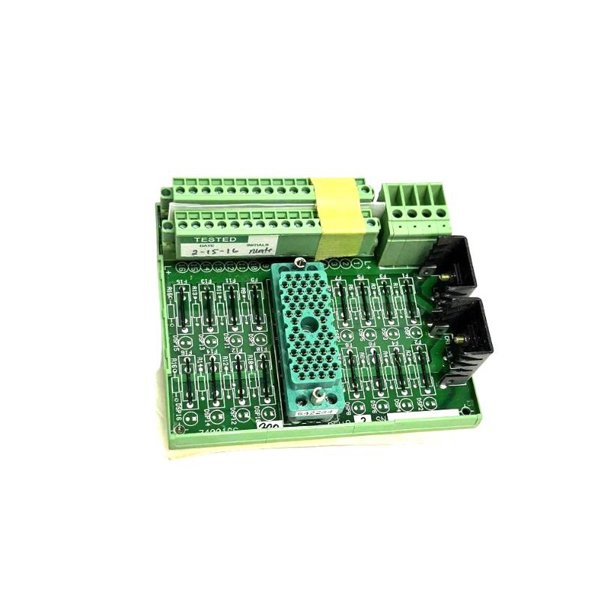

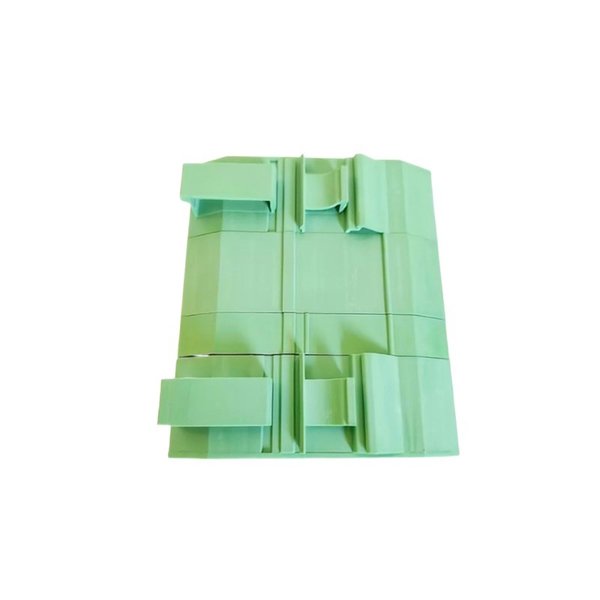

Triconex 9562 7400165-280 Terminal Panel Module

The Triconex 9562 7400165-280 Terminal Panel Module is a vital component designed for use within Triconex safety systems, widely recognized for their high-integrity and fault-tolerant architecture. This module acts as an interface between field wiring and the Triconex control system, providing a reliable and secure terminal point for signal connections.

Engineered to fit seamlessly into Triconex’s modular safety platform, the 9562 Terminal Panel Module offers robust construction with precision-engineered terminals to facilitate quick and secure wiring. Its design supports streamlined installation and maintenance, ensuring optimal system uptime in critical process control environments.

Product Specifications

Product Applications

• Process Safety Systems: Serves as the terminal interface in Triconex SIL 3 safety instrumented systems (SIS) used across oil & gas, petrochemical, and power plants.

• Modular Safety Control Panels: Facilitates neat and reliable connection points for large-scale I/O wiring within safety racks.

• Emergency Shutdown (ESD) Systems: Connects field wiring for critical shutdown signals to safety controllers.

• Fire and Gas Systems (F&G): Used as an interface for sensors and actuators in F&G safety loops.

• Industrial Automation: Supports integration of safety-rated I/O modules with field devices.

• Power Generation Facilities: Ensures secure wiring and signal management in turbine control and protection systems.

Product Advantages

• Reliable Connection: Designed for secure, vibration-resistant wiring with screw terminals and clamping mechanisms ensuring minimal contact resistance.

• High Safety Integrity: Certified to meet SIL 3 requirements, making it suitable for the most demanding safety applications.

• Ease of Installation: Modular design and standardized terminal layout simplify wiring and reduce installation errors.

• Durability: Made from flame-retardant materials with robust metal contacts to withstand harsh industrial environments.

• Compact Footprint: Fits efficiently into tight panel spaces without compromising terminal accessibility.

• Long Service Life: High-quality materials and construction support extensive operational lifetimes with minimal maintenance.

• Global Compliance: Meets multiple international safety and quality standards, facilitating worldwide deployment.

• Clear Labeling: Each terminal is clearly marked to help technicians quickly identify connections during wiring or troubleshooting.

• Flexible Mounting Options: Suitable for DIN rail or panel mounting depending on control cabinet design.

Frequently Asked Questions (FAQ)

1. What is the primary role of the 9562 Terminal Panel Module?

   It acts as the interface between field wiring and Triconex safety controllers, providing a reliable point for secure signal connection.

2. How many wires can I connect to this module?

   Typically, it supports up to 32 terminals per module, but the exact count may vary depending on the specific variant.

3. Is the module compatible with all Triconex safety systems?

   Yes, it is designed to work seamlessly with Triconex’s range of safety controllers, including the 3000 and 6000 series.

4. What kind of terminals are used?

   The module uses screw terminals with clamping to ensure firm and vibration-resistant wire retention.

5. Can this terminal panel module handle high current loads?

   Each terminal can handle currents up to approximately 10 A, suitable for most control and signal wiring needs.

6. What are the environmental limits for this module?

   It operates reliably between -20°C and +70°C with humidity tolerance from 5% to 95% non-condensing.

7. Is this module certified for safety standards?

   Yes, it is SIL 3 certified and meets international standards including CE and UL.

8. Can the module be mounted on DIN rails?

   Yes, it supports both DIN rail and panel mounting depending on your cabinet setup.

9. How is wiring labeled for ease of maintenance?

   Terminals are clearly numbered and marked, simplifying wiring identification and troubleshooting.

10. What materials are used to ensure durability?

    The housing is made from flame-retardant plastic, and terminals are metal with corrosion-resistant plating to ensure longevity in industrial environments.
