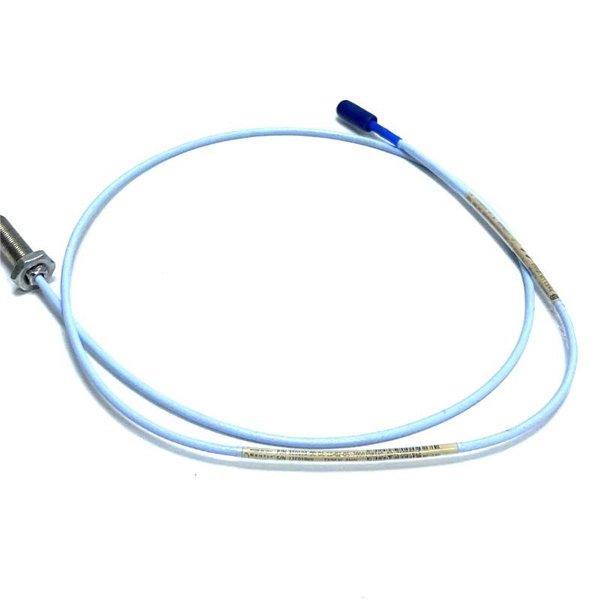

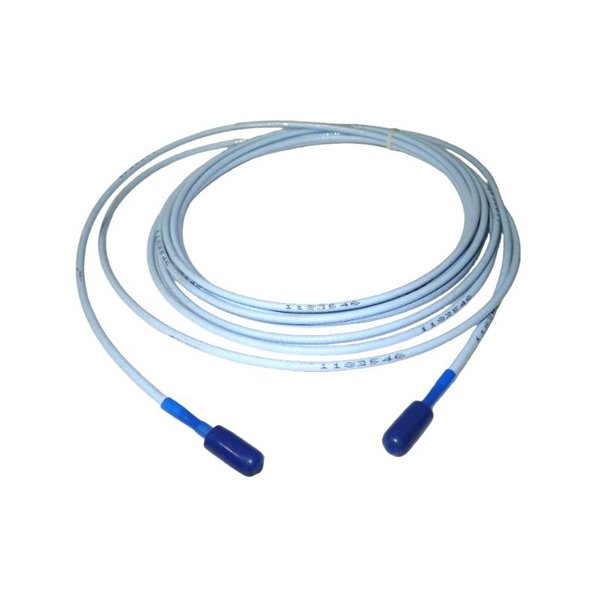

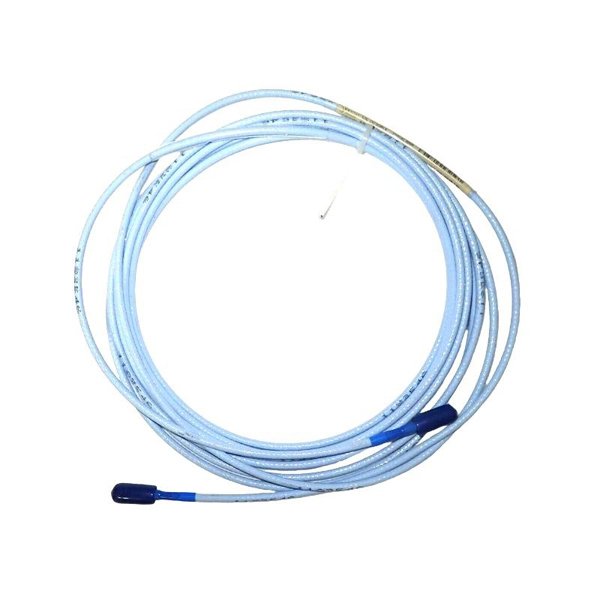

Bently Nevada 330103-00-20-10-01-00 3300 XL 8 mm Proximity Probe
Manufacturer:Bently Nevada
Product Number:330103-00-20-10-01-00
Product Type:3300 XL 8 mm Proximity Probe
Origin:USA
Total Length:1.0 meter
Weight:0.323 kg
Views:43
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330103-00-20-10-01-00 is part of the 3300 XL 8 mm Proximity Transducer System. This proximity probe is designed for critical machinery monitoring, providing accurate measurements of shaft vibration, displacement, and position. The probe is suitable for fluid-film bearing machines and is compliant with API 670 standards.
Key Features
-
Compliant with API 670 standards
-
Measures both static and dynamic displacement
-
Highly resistant to RFI/EMI
-
ClickLoc connectors for secure, tool-free installation
-
Compatible with both XL and non-XL systems
-
No bench calibration required
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | 330103-00-20-10-01-00 |
| Probe Tip Diameter | 8.0 mm |
| Thread Type | M10 x 1 |
| Total Length | 1.0 meter |
| Cable Type | Standard ClickLoc coaxial connector |
| Target Material Calibration | AISI 4140 steel |
| Linear Range | 0.25 to 2.3 mm (10 to 90 mils) |
| Scale Factor | 7.87 V/mm (200 mV/mil) ±5% (standard 1 m) |
| Case Material | AISI 303/304 stainless steel |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Operating Temperature | –52°C to +177°C |
| Weight | 0.323 kg |
| Frequency Response | 0 to 10 kHz (+0, –3 dB) |
| Minimum Target Size | 15.2 mm (0.6 in) diameter |
| Shaft Diameter Recommendation | ≥76.2 mm (3 in) for optimal performance |
Applications
-
Steam and gas turbines
-
Compressors and pumps
-
Generators and motors
-
Keyphasor speed sensing
-
Shaft vibration and thrust position monitoring
Product Advantages
-
No field calibration required
-
High immunity to environmental noise and interference
-
Modular components allow full interchangeability
-
Rugged probe tip construction improves durability
-
Supports high-temperature applications with ETR options
FAQs
Q1: What does the 330103-00-20-10-01-00 probe measure?
A1: It measures shaft displacement, vibration, and position.
Q2: Is this probe compatible with older 3300 systems?
A2: Yes, it is electrically and mechanically compatible with non-XL 3300 5 mm and 8 mm systems.
Q3: Does the probe require field calibration?
A3: No, it is factory-calibrated and fully interchangeable.
Q4: What is the recommended shaft diameter for accurate readings?
A4: A shaft diameter of at least 76.2 mm (3 inches) is recommended.
Q5: Can this probe be used in hazardous areas?
A5: Yes, it meets CSA, ATEX, and IECEx requirements for hazardous locations.

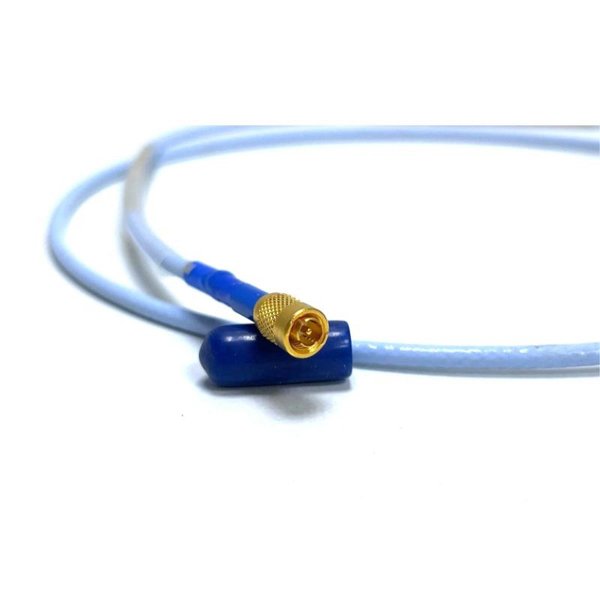

Q6: What type of connector is used on this model?
A6: It uses a miniature ClickLoc coaxial connector.
Q7: What is the typical total system weight?
A7: For a 1-meter configuration, the weight is approximately 0.323 kg.
Q8: Can it operate at high temperatures?
A8: Yes, it supports –52°C to +177°C; ETR versions support even higher.
Q9: Is this probe suitable for speed (Keyphasor) measurements?
A9: Yes, it supports Keyphasor and overspeed applications when installed per guidelines.
Q10: What is the material of the probe case and tip?
A10: The case is stainless steel (AISI 303/304); the tip is PPS plastic.
