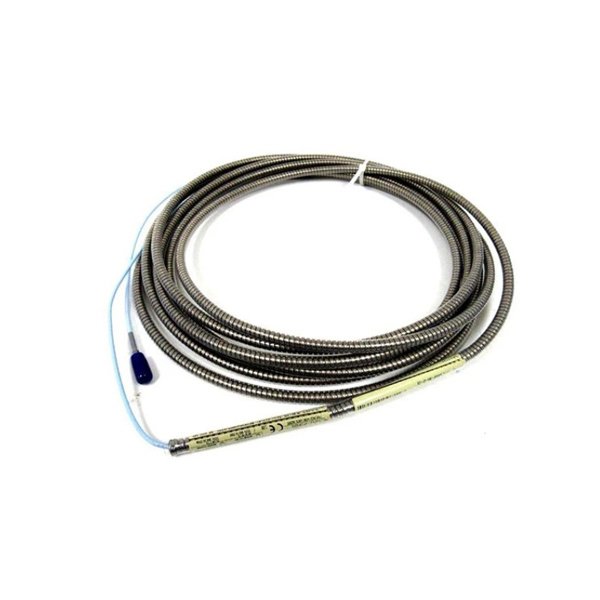

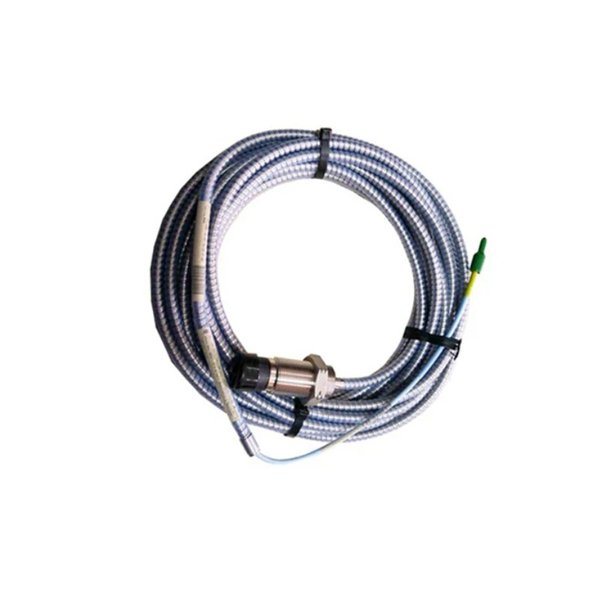

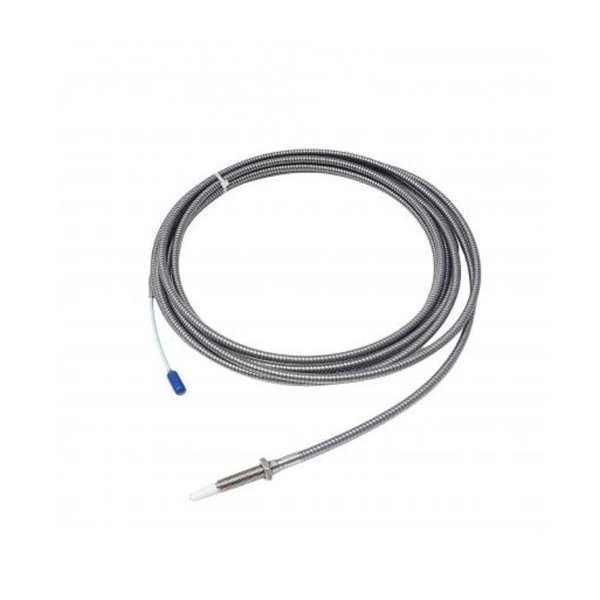

Bently Nevada 330104-00-07-90-12-05 3300 XL 8 mm Proximity Probe

The Bently Nevada 330104-00-07-90-12-05 3300 XL 8 mm Proximity Probe is a high-precision sensor designed for vibration and position monitoring in rotating machinery. It is part of the 3300 XL series, which is widely recognized for reliable performance in industrial environments, including turbines, compressors, and generators. This probe converts the displacement of a target into a voltage signal, enabling accurate measurement of shaft movement and vibration analysis for predictive maintenance.

Product Advantages

• High Accuracy and Stability: Provides precise measurements for critical machinery monitoring.

• Robust Design: Resists harsh industrial environments, including high temperatures, vibration, and contamination.

• Wide Compatibility: Works seamlessly with Bently Nevada 3300 XL systems and related monitoring devices.

• Ease of Installation: Designed for quick and secure installation without compromising performance.

• Enhanced Signal Quality: Low-noise output for reliable vibration and displacement data.

• Predictive Maintenance Support: Facilitates early detection of mechanical issues to prevent unexpected downtime.

Technical Specifications

Product Applications

• Turbines: Steam, gas, and hydro turbines for shaft vibration monitoring.

• Compressors: Centrifugal and axial compressors for displacement measurement.

• Generators: Rotor position monitoring and vibration analysis.

• Motors: High-speed electric motors for predictive maintenance.

• Industrial Rotating Machinery: Pumps, fans, and gearboxes in critical industrial operations.

• Condition Monitoring Systems: Integration into Bently Nevada 3300 XL monitoring systems.

FAQ

1. Q: What is the maximum operating temperature for this probe?

   A: The probe can operate safely between -40°C and +125°C.

2. Q: What type of output signal does this probe provide?

   A: It provides a differential AC voltage output proportional to shaft displacement.

3. Q: How is the probe installed on rotating machinery?

   A: It can be installed using a threaded mount or clamped in proximity to the rotating shaft.

4. Q: What is the typical target gap for this probe?

   A: The standard target gap is 8 mm.

5. Q: Can this probe be used with non-Bently Nevada monitoring systems?

   A: While optimized for 3300 XL systems, it can be used with other compatible displacement monitoring systems with matching signal requirements.

6. Q: How is the probe’s sensitivity defined?

   A: Typical sensitivity is 50 mV/mil, allowing precise measurement of shaft displacement.

7. Q: What kind of maintenance does the probe require?

   A: Regular inspection for cable integrity and connection quality; no calibration is typically needed during normal operation.

8. Q: Does the probe support high-speed machinery monitoring?

   A: Yes, it is designed for high-speed rotating equipment with minimal signal noise.

9. Q: How is the probe protected from environmental contamination?

   A: The stainless steel housing and sealed electronics resist dust, moisture, and vibration.

10. Q: What is the linearity of the probe signal?

    A: The probe maintains ±1% full-scale linearity across its operating range.
