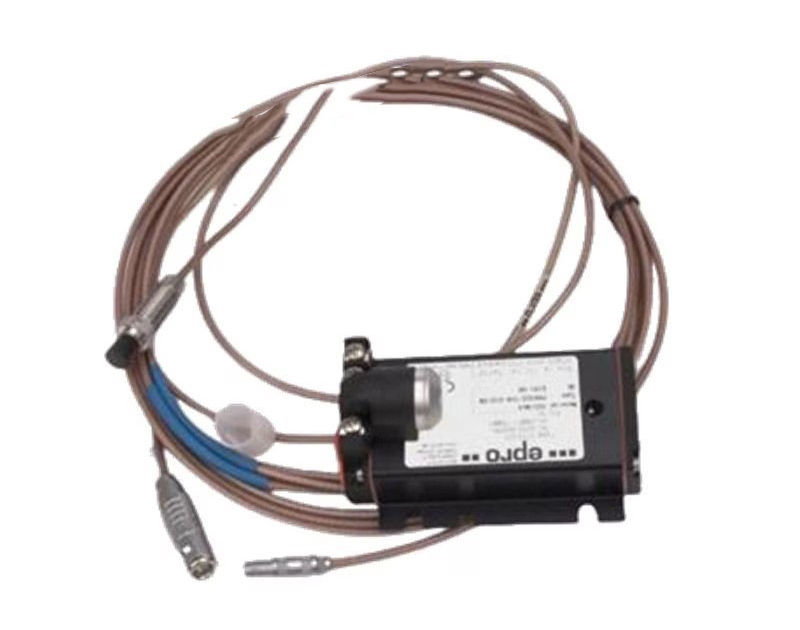

Epro CON021+PR6426/000-110 Eddy Current Sensor
Product Number: CON021 + PR6426/000-110
Category: Eddy Current Sensor System
Sensor Type: Non-contact eddy current displacement sensor (PR6426, 25mm typical)
Cable Length: 11.0 meters (specified by -110)
Converter: CON021 signal converter
System Compatibility: MMS 3000/6000 monitoring systems
Application: Shaft vibration, radial position, axial thrust measurement for larger shafts
Product Description
The EPRO CON021 + PR6426/000-110 system precisely monitors shaft displacement, vibration, and position. Engineers deploy it in critical rotating equipment such as turbines, compressors, and large motors. It plays a key role in condition monitoring and protection systems across power generation and heavy industries.
PR6426/000-110 Sensor Specifications
- Type: Non-contact eddy current proximity probe
- Sensitivity: 2 V/mm (50.8 mV/mil)
- Linear Measuring Range: ±4.0 mm (0.157″)
- Target Material: Ferromagnetic steel (42CrMo4)
- Max Surface Speed: 2,500 m/s (98,425 ips)
- Shaft Diameter: ≥200 mm
- Operating Temperature: –35°C to +175°C
- Max Cable Temperature: 200°C
- Pressure Resistance: 6,500 hPa (94 psi)
- Shock/Vibration Resistance: 5g at 60Hz
- Material: Stainless steel sleeve with PTFE cable
- Cable Length Options: 4 m, 5 m, 8 m, 10 m
- Dimensions: 2.2 × 12.4 × 12.6 cm
- Weight: 0.8 kg
CON021 Converter Specifications
- Function: Converts sensor signals into standard voltage outputs
- Output Range: –4V to –20V or –2V to –18V
- Frequency Response: 0–20,000 Hz
- Rise Time: Less than 15 μs
- Operating Temperature: –30°C to +100°C
- Housing Material: LMgSi 0.5 F22 alloy
- Mounting: Panel-mount using M5 screws
- Connections: LEMO plug (sensor), screw terminals (output/power)
