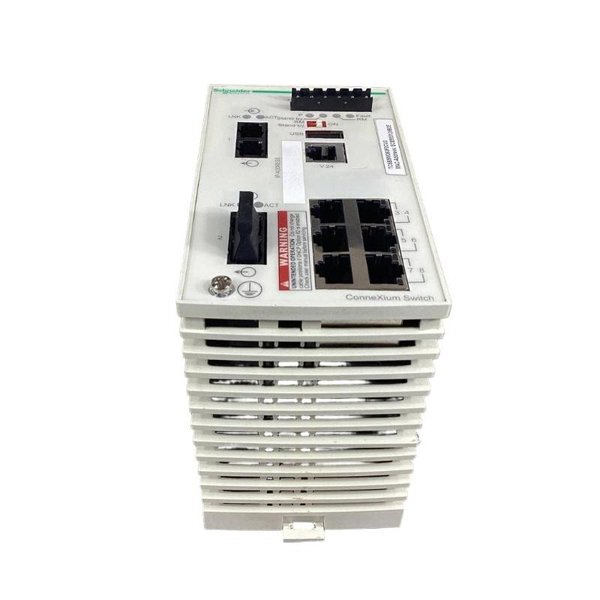

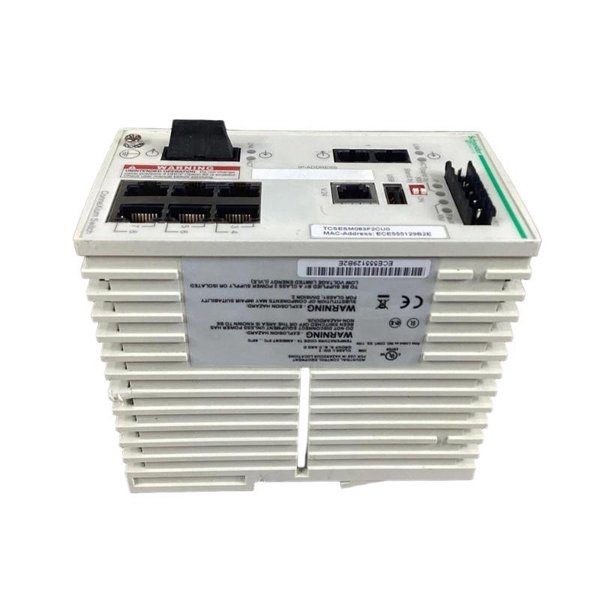

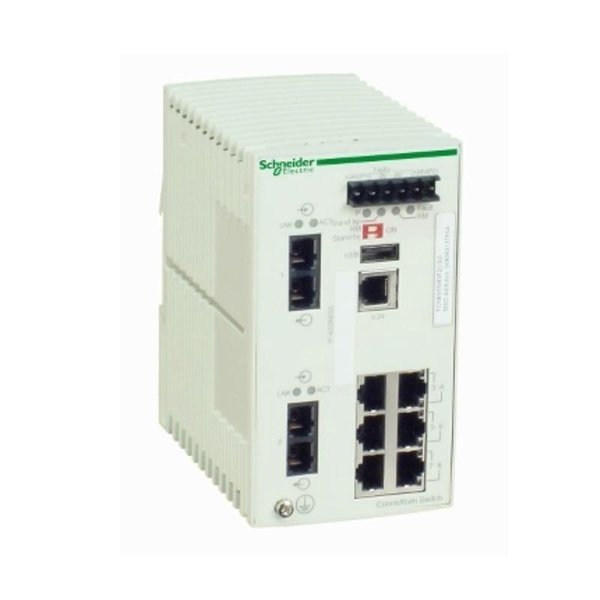

Schneider TCSESMO83F2CUO Ethernet TCP/IP Managed Switches

The Schneider Electric TCSESMO83F2CUO is a high-performance managed Ethernet TCP/IP switch designed for industrial network environments. This switch provides advanced management features, enhanced security, and reliable data transmission critical for demanding automation applications. It supports multiple Ethernet ports with flexible configurations, including fiber optic uplinks, and is ideal for building robust, scalable, and secure industrial communication networks.

This switch is part of Schneider’s Modicon managed switch family, tailored for industrial use, offering exceptional network traffic control, VLAN segmentation, redundancy protocols, and diagnostic capabilities.

Key Features

• 8 RJ45 10/100/1000 Mbps Ethernet ports

• 3 SFP fiber optic slots for uplinks or ring topologies

• Supports IEEE 802.1Q VLANs for network segmentation

• Rapid Spanning Tree Protocol (RSTP) for network redundancy

• Quality of Service (QoS) for traffic prioritization

• Advanced security features including port security and MAC filtering

• Web-based and SNMP management interfaces

• Power over Ethernet (PoE) support on selected ports (verify model variant)

• Industrial-grade design with DIN rail mounting

• Operating temperature range suitable for harsh environments

Technical Specifications

Industry Applications

• Industrial automation and control networks

• Critical infrastructure communications

• Oil & gas and petrochemical plants

• Water and wastewater treatment facilities

• Transportation and smart grid systems

• Manufacturing and assembly line networks

Advantages

• High port density and flexibility with 8 copper and 3 fiber optic ports

• Robust network management with multiple protocols and user-friendly interfaces

• Enhanced security through access control and traffic filtering

• Reliable redundancy with RSTP minimizing network downtime

• Optimized traffic handling with QoS for critical data prioritization

• Industrial durability for operation in harsh environmental conditions

• Scalable solution for expanding industrial networks

• Simplified maintenance via remote monitoring and diagnostics

Frequently Asked Questions (FAQ)

1. How many Ethernet ports does the TCSESMO83F2CUO provide?

   It has 8 RJ45 ports plus 3 SFP fiber optic slots.

2. Does this switch support VLAN segmentation?

   Yes, it supports IEEE 802.1Q VLANs with up to 4094 VLANs.

3. What redundancy protocols are available?

   It supports Rapid Spanning Tree Protocol (RSTP) for redundancy.

4. Can I manage the switch remotely?

   Yes, through Web GUI, SNMP, SSH, and Telnet.

5. Is the device suitable for harsh industrial environments?

   Yes, it operates from -40°C to +70°C and has industrial certifications.

6. Does it support Power over Ethernet (PoE)?

   PoE support depends on model variant; please verify specific configuration.

7. What is the switching capacity of this device?

   It provides a switching capacity of 20 Gbps.

8. What security features are implemented?

   Includes port security, MAC filtering, and access control lists.

9. What power supply voltage is required?

   It requires 24 V DC (range 18-30 V DC).

10. What are the physical dimensions and weight?

    Dimensions are 74 x 131 x 111mm; weight approximately 0.41 kg.
