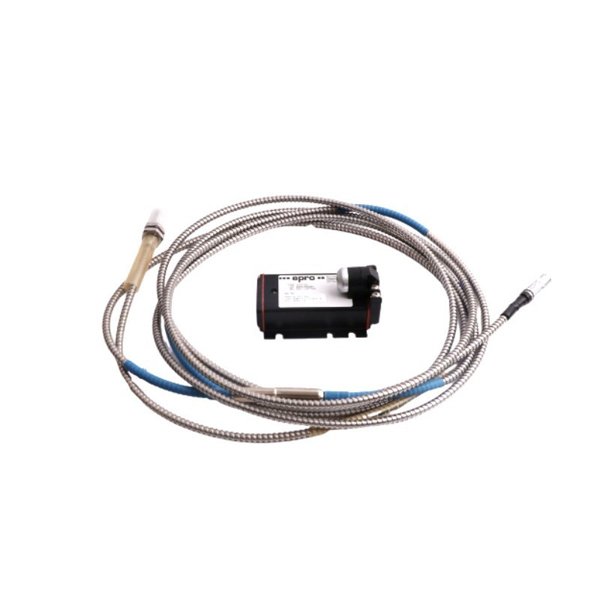

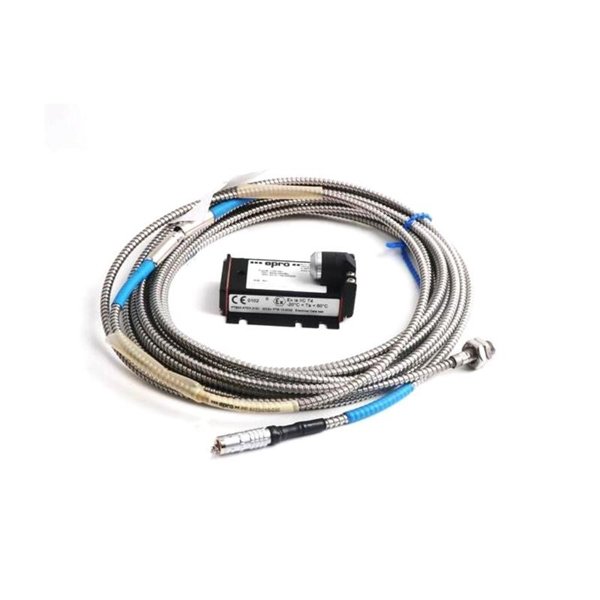

Epro PR6424/109-121 16mm Eddy Current Sensor

The Epro PR6424/109-121 is a 16mm Eddy Current Sensor designed for precise, non-contact measurement of displacement, vibration, and proximity. Using Eddy Current technology, this sensor detects changes in the magnetic field caused by the interaction between its probe and conductive materials, such as metals. As a result, it is highly accurate, responsive, and ideal for a wide range of industrial monitoring tasks, especially in environments where precision and durability are crucial.

This sensor is optimized for machinery condition monitoring, automated systems, and high-speed applications, providing high accuracy with minimal wear and tear since there is no physical contact with the measured object.

Product Specifications

Applications

The Epro PR6424/109-121 16mm Eddy Current Sensor is utilized across various industrial and automation applications:

• Machine Condition Monitoring: Ideal for continuous monitoring of machinery such as motors, turbines, and pumps to detect early signs of malfunction or wear.

• Aerospace: Used in the aerospace industry for measuring displacements in aircraft engines and turbine blades.

• Automotive Industry: Ideal for monitoring precision components in automotive manufacturing, including engine parts and suspension systems.

• Industrial Automation: Essential in automated systems where precise feedback is needed for machinery positioning and operation.

• Vibration Monitoring: Employed in industries where vibration measurement is crucial for maintaining the health of rotating equipment.

• Research and Development: Used in laboratories for experimental setups requiring highly accurate displacement and vibration measurements.

Advantages

• Non-Contact Measurement: The sensor uses Eddy Current technology, enabling non-contact measurement of displacement and vibration, reducing wear and tear.

• High Precision: The sensor offers 1 μm resolution, which provides exceptional accuracy for both small and large displacements.

• Robust and Durable: With an IP67 rating, it is resistant to dust, moisture, and harsh environmental conditions, making it reliable in demanding environments.

• Fast Response Time: The sensor features a rapid response time of <1 ms, making it suitable for high-speed monitoring and real-time feedback in dynamic systems.

• Compact Design: The 16mm diameter allows for easy installation in tight spaces, making it versatile for a wide range of applications.

• Versatile: The sensor can measure both static and dynamic displacements and vibrations, offering versatility for various industrial needs.

• Long-Term Reliability: Built for long-term durability, the sensor is capable of providing consistent, reliable data over extended periods without the need for frequent calibration.

FAQ

1. How does the Epro PR6424/109-121 operate?

The Epro PR6424/109-121 operates based on Eddy Current technology, where the sensor generates an electromagnetic field that interacts with conductive materials. The sensor detects the changes in this field to determine the displacement or vibration of the object being measured.

2. What is the measurement range of the Epro PR6424/109-121 sensor?

The typical measurement range is between ±5 mm to ±10 mm, depending on the application and setup, which allows for both small and large displacement measurements.

3. What is the resolution of the sensor?

The Epro PR6424/109-121 provides 1 μm resolution, which means it can detect even the slightest changes in displacement with great accuracy.

4. What type of output does the sensor provide?

The sensor provides an analog output, typically in the form of either a current output (4-20 mA) or a voltage output (0-10 V), depending on the configuration.

5. Can the sensor be used for vibration monitoring?

Yes, the Epro PR6424/109-121 is designed for vibration and displacement monitoring, making it an excellent choice for rotating machinery and other industrial applications.

6. Is the sensor suitable for high-speed applications?

Yes, the sensor has a response time of less than 1 ms, which makes it well-suited for high-speed applications that require real-time feedback.

7. What materials can the sensor measure?

The Epro PR6424/109-121 is designed to measure conductive materials such as metals, including steel, aluminum, and copper, which are common in industrial applications.

8. How does the sensor handle dynamic measurements?

The sensor is capable of measuring both static and dynamic displacements with high precision, making it ideal for applications that involve moving parts or high-frequency vibrations.

9. Can the sensor be used in industrial automation systems?

Yes, the Epro PR6424/109-121 can easily integrate into industrial automation systems for continuous monitoring and feedback, improving the reliability and efficiency of automated processes.

10. What environmental conditions can the sensor withstand?

The sensor is rated IP67, meaning it is resistant to dust and water and can operate in harsh environments, making it suitable for use in various industrial settings.
