Emerson KJ3221X1-BA1+KJ4001X1-CA1 Output Module With Terminal Bblocks

The Emerson KJ3221X1-BA1+KJ4001X1-CA1 Output Module with Terminal Blocks is a high-performance S-series output module designed for use in Emerson’s DeltaV distributed control system (DCS). This combination provides precise control outputs along with reliable terminal block connectivity, making it suitable for mission-critical process automation environments.

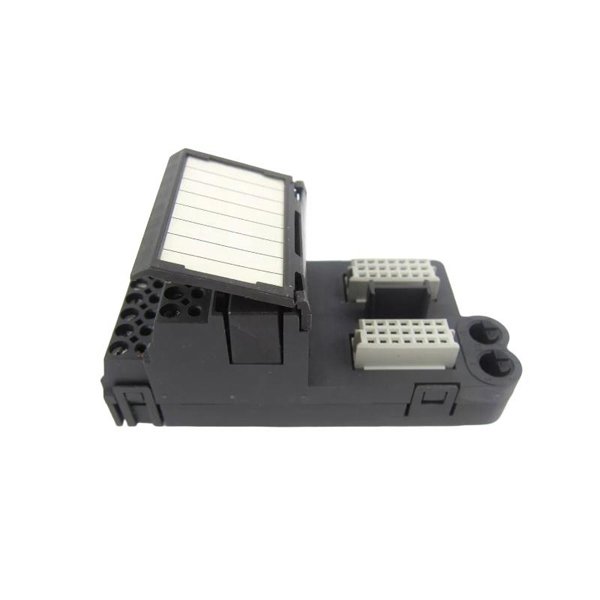

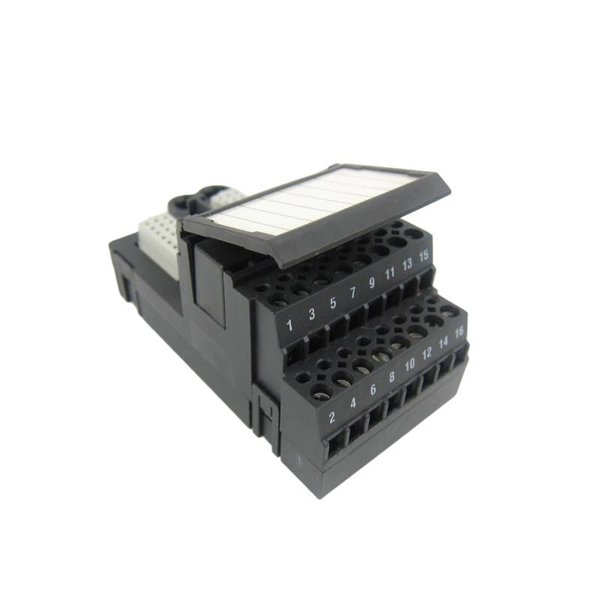

The KJ3221X1-BA1 serves as the output module, responsible for driving actuators, control valves, and other field devices, while the KJ4001X1-CA1 terminal block ensures secure wiring, field isolation, and convenient installation. Together, they deliver seamless integration, robust performance, and flexibility for a wide range of industrial applications.

Product Specifications

Product Applications

The Emerson KJ3221X1-BA1+KJ4001X1-CA1 is widely used in industries requiring reliable control output functions:

• Valve Actuation: Provides precise digital outputs to drive control and on/off valves.

• Motor and Drive Control: Interfaces with motor starters, solenoids, and drives.

• Process Automation: Used in chemical, oil & gas, power, and water treatment facilities for output signaling.

• Batch Control: Supports batch sequences with accurate digital output control.

• Alarm and Indication Systems: Drives alarms, lights, and signaling devices for plant safety and monitoring.

• Redundant Safety Systems: Provides outputs in redundant systems to ensure continuous operation.

Product Advantages

The KJ3221X1-BA1+KJ4001X1-CA1 Output Module with Terminal Blocks offers several operational advantages:

• High Channel Density: Provides 16 output channels in a compact module.

• Robust Isolation: Ensures electrical isolation between channels, preventing interference.

• Enhanced Reliability: Redundancy support guarantees continuous operation in critical applications.

• Hot-Swappable Design: Modules can be replaced without shutting down the control system.

• Built-In Diagnostics: Monitors output health and reports issues through DeltaV system diagnostics.

• Ease of Wiring: Terminal block design ensures secure, organized, and efficient field wiring.

• Seamless Integration: Fully compatible with DeltaV controllers and system architecture.

• Industrial Durability: Designed to withstand demanding process environments.

FAQ

1. How many output channels does the KJ3221X1-BA1 provide?

   It provides 16 isolated digital output channels.

2. What type of signals does the module output?

   It outputs 24 VDC digital signals suitable for actuators and control devices.

3. Does the module support redundant operation?

   Yes, it can be configured in redundant pairs for maximum system availability.

4. How are diagnostics handled in the module?

   It includes self-diagnostics, LED indicators, and DeltaV system reporting.

5. Can the module be hot-swapped during operation?

   Yes, the module supports hot-swapping without system shutdown.

6. What is the maximum load capacity per output channel?

   Each channel supports up to 0.5 A continuous load.

7. How does the KJ4001X1-CA1 terminal block support the module?

   It provides secure field wiring, electrical isolation, and reliable connectivity.

8. What isolation features are provided in the module?

   It provides galvanic isolation between channels and between the module and system backplane.

9. Does the module require an external power supply?

   No, it is powered directly from the DeltaV backplane.

10. Which field devices can be connected to the outputs?

    Devices such as solenoids, control valves, relays, motors, and alarms can be connected.
