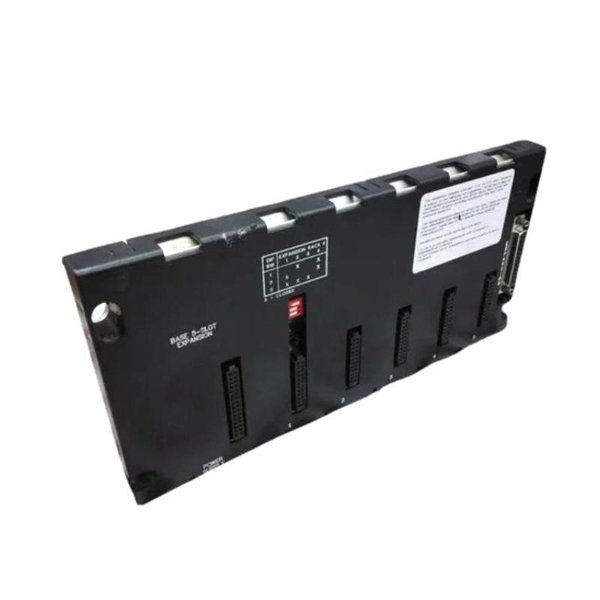

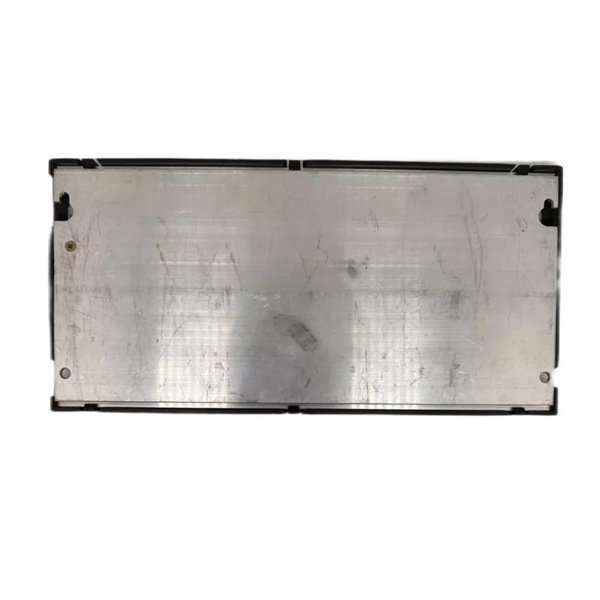

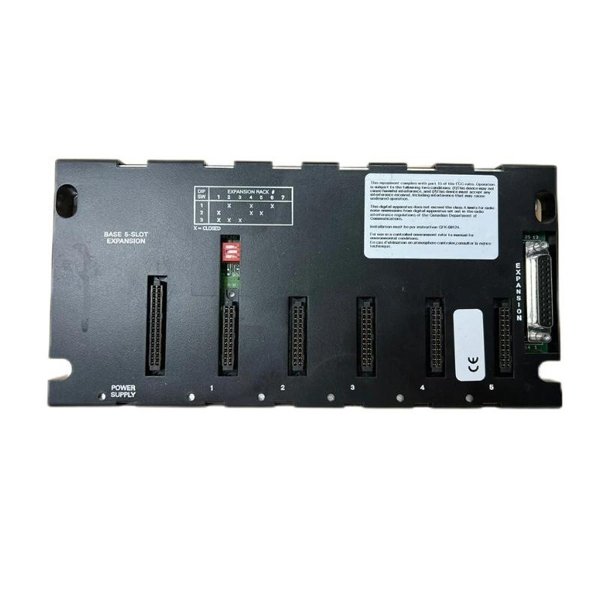

General Electric IC693CHS398 5-Slot Expansion Baseplate

The GE IC693CHS398 is a 5-slot expansion baseplate designed for use within the GE Series 90-30 Programmable Logic Controller (PLC) system. This baseplate serves as a modular framework that allows additional I/O modules to be integrated seamlessly into an existing system. It supports communication with the CPU or remote I/O system via a dedicated expansion interface, and is typically used in industrial automation applications where reliability, modularity, and space efficiency are crucial.

The IC693CHS398 is engineered to maintain stable backplane power distribution and signal integrity between installed modules. It is commonly found in environments that demand rugged design, dependable operation, and easy expandability.

Product Specifications

Product Applications

The GE IC693CHS398 is ideal for a wide range of industrial control and automation applications, including but not limited to:

• Manufacturing Plants: Integration of sensors, actuators, and process controls.

• Water and Wastewater Treatment: Remote and distributed control system expansions.

• Oil & Gas Industry: Pipeline and pumping station automation systems.

• Power Generation: Monitoring and controlling turbine, boiler, and plant processes.

• Food & Beverage Processing: Recipe and process sequence management.

• Automotive Assembly Lines: Machine coordination and diagnostics.

Product Advantages

• Modular Design: Supports easy installation and expansion without system downtime.

• Robust Construction: Designed to operate reliably in industrial environments.

• Seamless Integration: Fully compatible with GE 90-30 I/O and CPU modules.

• Compact Footprint: Optimized for limited space applications.

• Cost-Effective Expansion: Provides a flexible solution for scalable system design.

• Reliable Backplane Communication: Ensures consistent data transmission across modules.

• Standard Compliance: Meets global industrial safety and quality standards.

• User-Friendly Mounting: Simplifies system assembly and maintenance.

Frequently Asked Questions (FAQ)

1. What is the primary use of the IC693CHS398?

   It’s used as a 5-slot expansion baseplate to extend GE 90-30 PLC systems.

2. Can this baseplate be connected directly to a CPU module?

   No, it connects via an expansion cable to a CPU-equipped baseplate.

3. Is the IC693CHS398 compatible with all Series 90-30 I/O modules?

   Yes, it supports most I/O and specialty modules in the Series 90-30 family.

4. Does the baseplate come with a built-in power supply?

   No, it requires an external power supply unit.

5. What is the recommended operating temperature range?

   Between 0°C and 60°C (32°F to 140°F).

6. Is vertical mounting allowed?

   Horizontal mounting is recommended for optimal heat dissipation.

7. What is the total number of modules that can be attached?

   Up to 5 modules can be installed on this baseplate.

8. How does it connect with other baseplates in the system?

   Through an expansion interface cable designed for Series 90-30 systems.

9. Can it be used in remote I/O configurations?

   Yes, it’s suitable for remote or distributed control setups.

10. Is this model still supported by GE or Emerson?

    While newer models exist, this baseplate is still widely supported and used.
