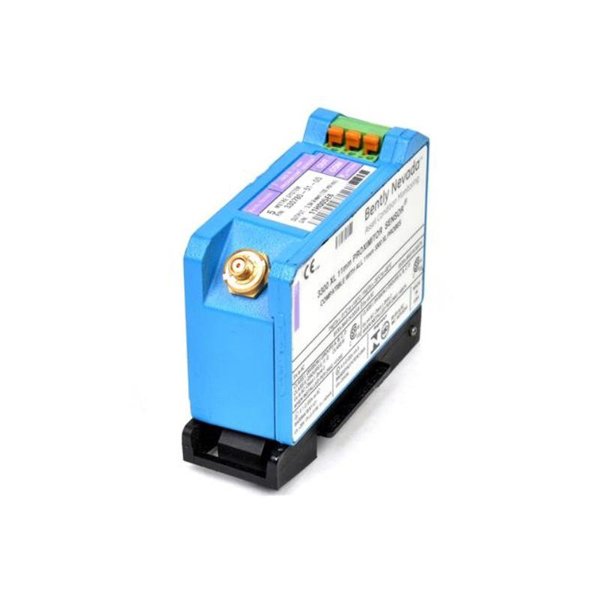

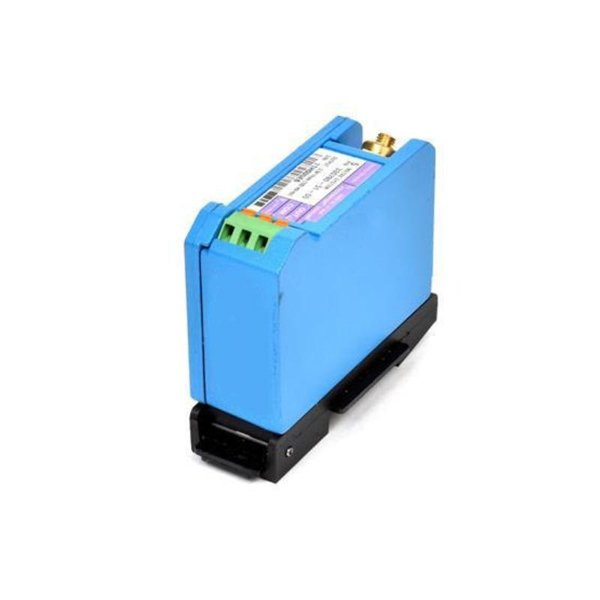

Bently Nevada 330780-51-05 3300 XL 11 mm Proximitor Sensor
Manufacturer:Bently Nevada
Product Number:330780-51-05
Product Type:3300 XL 11 mm Proximitor Sensor
Origin:USA
Total Length:5.0 meters
Weight:0.255 kg
Views:42
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330780-51-05 is part of the 3300 XL 11 mm Proximity Transducer System, featuring a proximitor sensor designed for critical vibration and position measurements in fluid-film bearing machinery. Its 11 mm probe tip provides extended linear range, making it suitable for thrust position, differential expansion, and rod drop monitoring applications.
Applications
-
Steam turbine thrust and ramp differential expansion
-
Reciprocating compressor rod position
-
Axial and radial vibration monitoring
-
Keyphasor® phase reference signals
-
Zero speed and tachometer measurements
Advantages
-
Long linear range: up to 4.0 mm (160 mils)
-
High immunity to RFI/EMI interference
-
Compact DIN-rail or panel mount options
-
ClickLoc™ and TipLoc™ connectors ensure secure installation
-
FluidLoc™ cable option prevents oil leakage
-
Supports SIL 2 / SIL 3 safety integrity levels
Technical Specifications
| Parameter | Description |
|---|---|
| System Length | 5.0 meters |
| Weight | 0.255 kg (Proximitor Sensor only) |
| Output Scale | 3.94 V/mm (100 mV/mil) |
| Frequency Response | 0–8 kHz, ±3 dB |
| Linear Range | 0.5 mm – 4.5 mm (0.02 – 0.18 in) |
| Extended Range | Up to 5.0 mm (0.20 in), not for zener barrier |
| Recommended Gap | 2.5 mm (100 mils) |
| Operating Temperature (Probe) | -52°C to +177°C |
| Operating Temperature (Sensor) | -52°C to +100°C |
| Humidity | 100% condensing, non-submersible |
| Material (Sensor Housing) | A380 Aluminum |
| Mounting | DIN-rail or Panel |
| Connector Type | ClickLoc™, gold-plated |
FAQ
Q1: What is the primary function of the 330780-51-05 sensor?
A1: It measures non-contact vibration and axial/radial position in rotating machinery.
Q2: Can this sensor be used in high-temperature environments?
A2: Yes, the probe supports up to +177°C and the sensor up to +100°C.
Q3: Is the system compatible with older 7200-series models?
A3: No, all components must be upgraded to 3300 XL 11 mm when replacing 7200-series systems.
Q4: What is the linear measurement range of the system?
A4: The standard linear range is 0.5 mm to 4.5 mm; extended up to 5.0 mm.
Q5: How is electromagnetic interference managed?
A5: The sensor offers enhanced RFI/EMI immunity and CE-compliant performance.
Q6: What mounting options are available?
A6: Both DIN-rail and traditional panel mount options are supported.
Q7: What makes ClickLoc connectors unique?
A7: They lock into place to prevent loosening, enhancing vibration resistance.
Q8: Is this product suitable for use in hazardous areas?
A8: Yes, it has ATEX/IECEx and CSA approvals for intrinsic safety and non-incendive environments.
Q9: What type of cable insulation is used?
A9: Fluoroethylene propylene (FEP) triaxial cable with optional FluidLoc leak protection.
Q10: What safety integrity level does this sensor support?
A10: It meets SIL 2 (HFT=0) and SIL 3 (HFT=1) standards.
